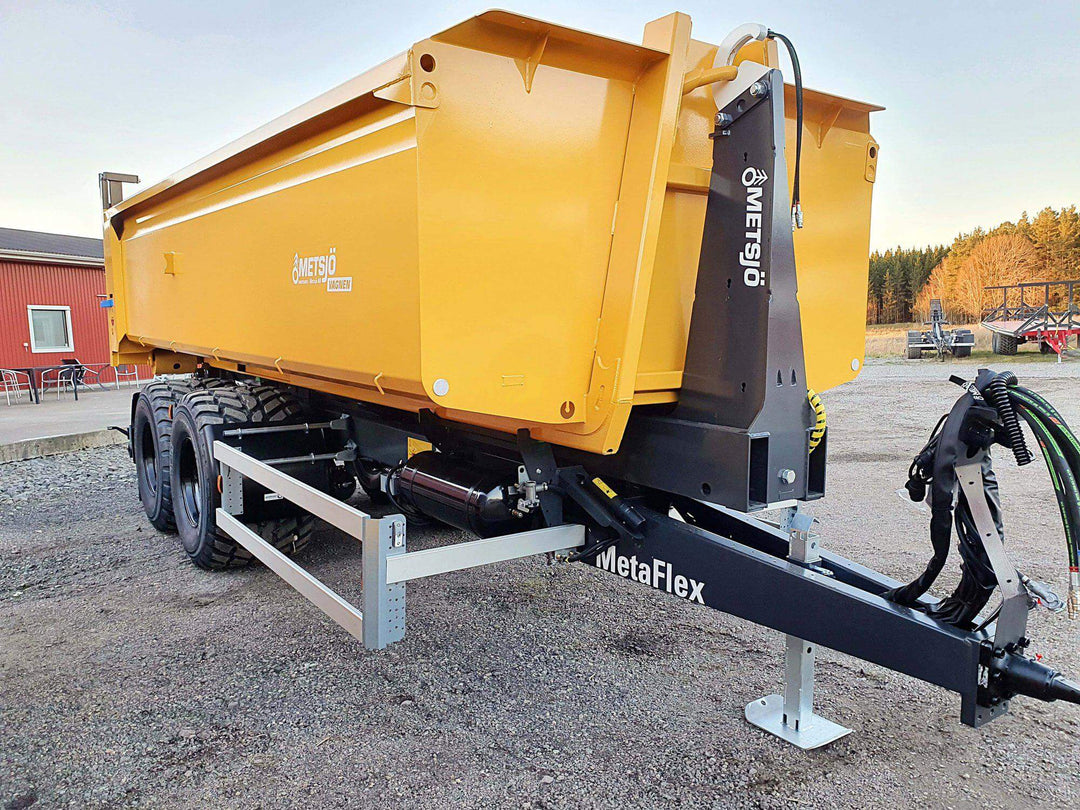

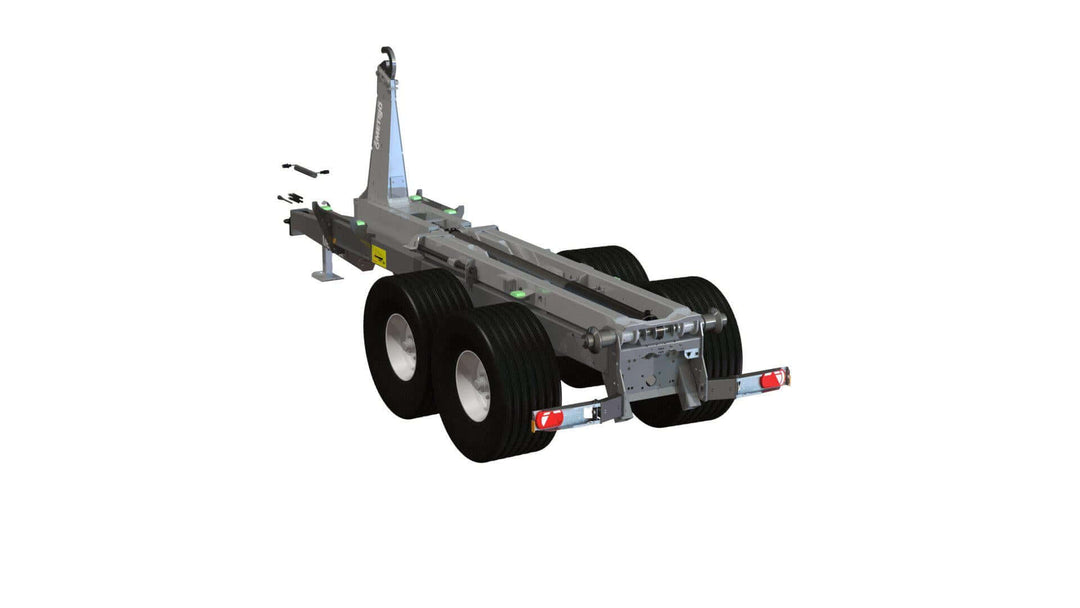

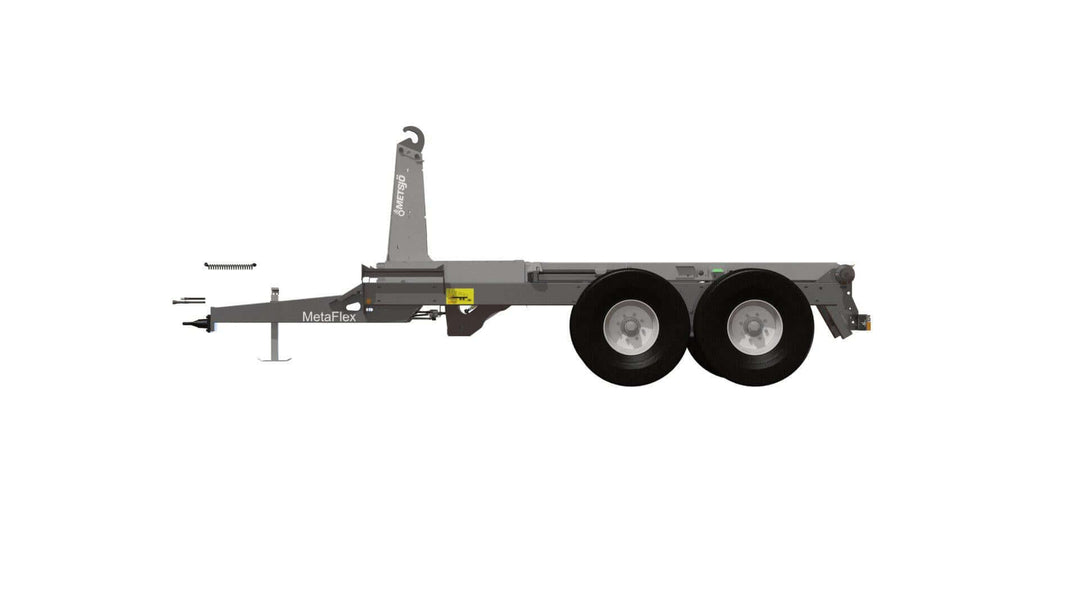

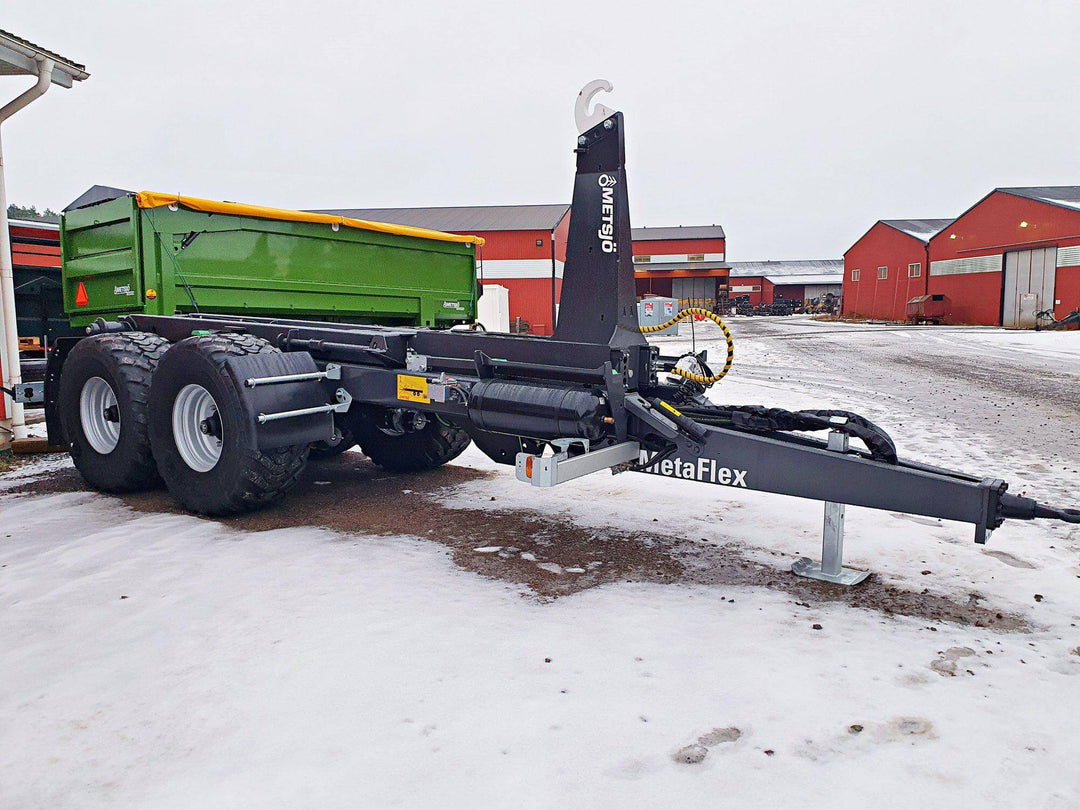

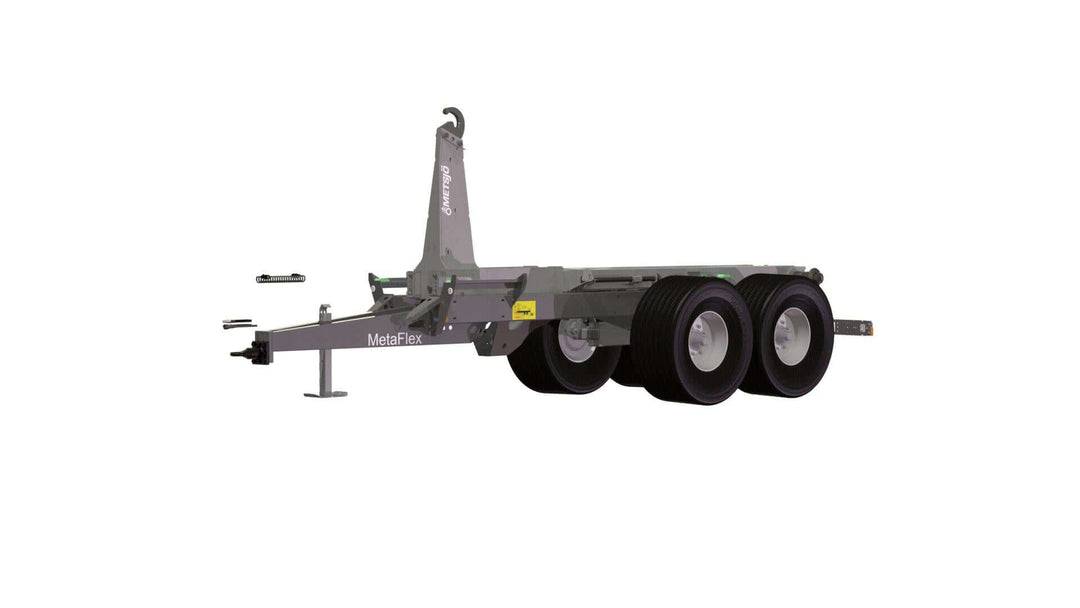

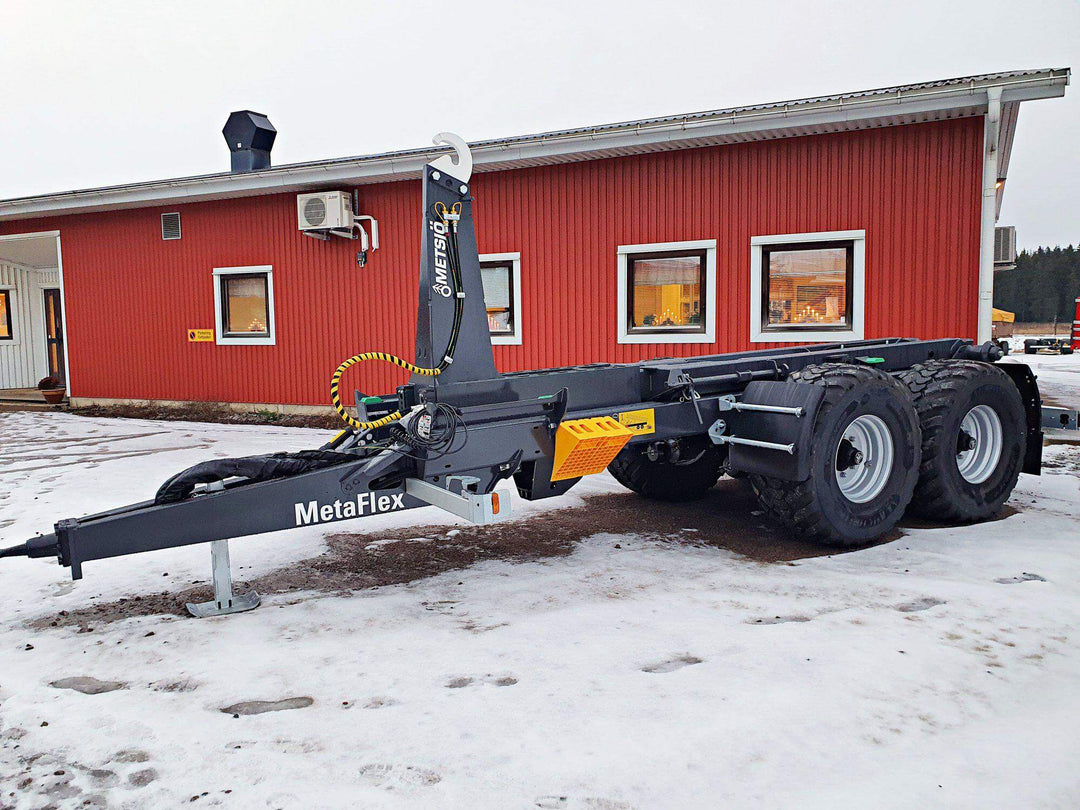

MetaFlex 50-65 Pendulum axle 560/60x22,5

Art: 137830

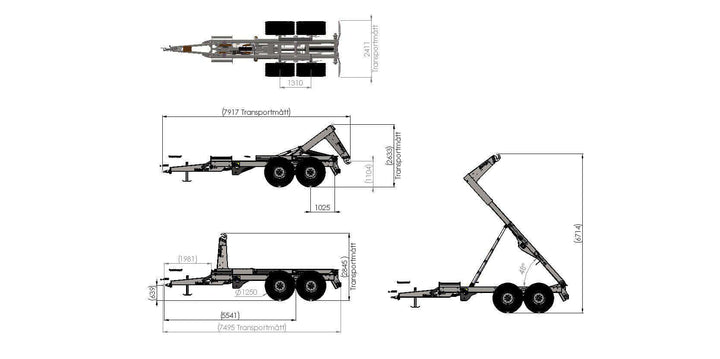

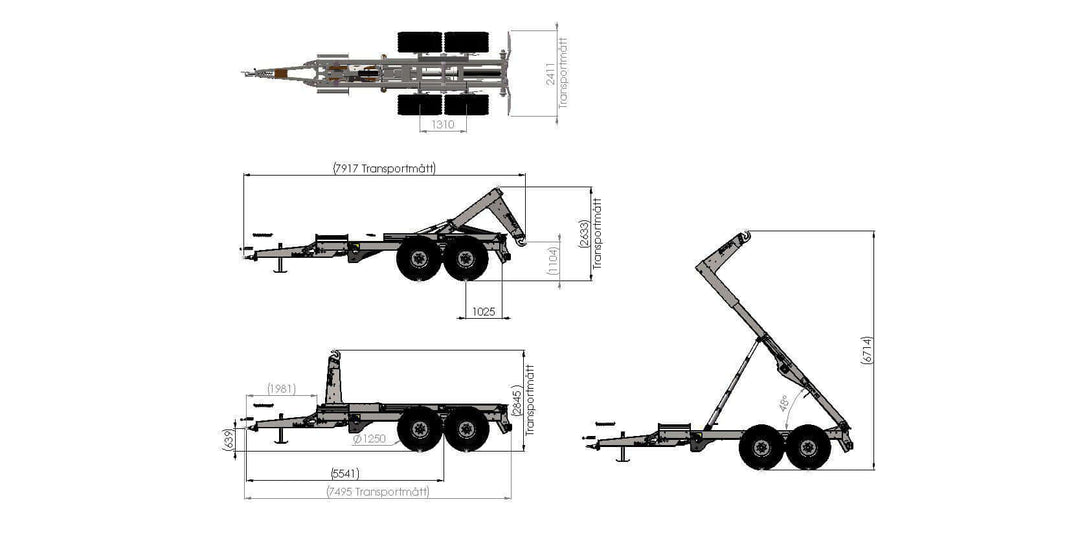

Item number 137830 Container standards DIN 30722 SIS3021 SS3659, Hook height 1450 mm - 1570 mm Container lengths 5000mm-6500mm. Adjustable load on the drawbar Pendulum bogie distance 1310 mm, Maximum load 9 tons per axle Flange width 1780 mm. Coated according to KTL-method, black Axle profile 120. Rim connection 220x275x8, open nuts Hydraulic brakes: on all drums, According VVFS 2003:20 Automatically adjusted brake arms AGS. Maximum hydraulic pressure 110 bar Cover sheets stop dirt entering the brake drums Hydraulic outlets needed on tractor: 2 DA + brakes, el. system 12 Volt Tipping power 20 tons, Tipping angle 52º,Oil volume needed while tipping 29 liters Shifting power 20 tons, Oil volume needed while shifting 18 liters Oil volume need from tractor: 29 L/210 Bar, Oil tank in tractor min.47L Lights according TSV LED 12-24V 7 pol. Mechanical switching between shifting and tipping Prepared console for mounting an axle lifting system Prepared console for mounting different drawbars Prepared console for mounting a hydraulic system for switching between shifting and tipping Prepared console for mounting a hydraulic rear supporting bar Prepared console for mounting hydraulic locking of the container Colour Metsjö grey Chassis weight 3 850 kg, Technical load 21 000 kg, Payload 17 150 kg Surface treatment: chemical degreasing, blasting SA 2,5 The body is puttied. The colour of the chassis is grey Painting according ISO 12944 A3.09. Colour system: Epoxy primer 2 x 70 µm. Top coat: Polyurethane 1 x 60 µm overall layer 200µm. Corrosion category C4 L

Tillval för MetaFlex 50-65 Pendulum axle 560/60x22,5

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Pairs well with

Telescopic tip

fast and strong

Our hook lifts use a telescopic tipping function, which makes our tipping function fast and strong.

Telescopic tower

Flexible weight distribution

Our hook lifts have telescopic towers to be compact and agile, with the ability to adjust their weight transfer to the tractor. At the same time as they can take long containers and have a smooth switching process

TELESCOPIC SHIFT SYSTEM

Low own weight

Our telescopic shifting system provides geometric advantages with great power distribution, which gives our hook lifts a low dead weight and a fast and strong progression.

Laser-aligned axles

Maneuverability and efficiency

We laser align our BPW axles for optimal compliance, reduced tire wear and fuel consumption. It is proven in independent studies that our system has approx. 25% less fuel consumption and approx. 50% lower soil compaction compared to conventional systems.

Hydraulic safety support beam

Safety

We use a hydraulic safety support beam at the rear that can be pushed into the ground when shifting for reduced negative force on the tractor. We recommend that the safety support beam is 10 cm above the ground when shifting so that you can roll during the shifting process. When the container touches the rollers, the wheels are compressed and the beam reaches the ground when the negative force is the greatest.

Large wheels within legal width

Accessibility

Our focus on agriculture has meant that over the years we have developed a construction that enables really large wheels within the legal width

Hydraulic axle suspension

Comfort and stability

Leveling of the chassis right/left side 35cm possible from the driver's cab. This enables greater safety and better geometry when shifting and working on slopes.

Our hydraulic axle suspension with communicating vessel technology provides a wide base and a stable ride.

Low chassis height

Stable and efficient shifting

The lower a hook lift is, the better the geometry for changing containers. At Metsjö, we are masters at building our trailers low.

Rear steering axle

Maximized maneuverability

Rear steering axle is standard on our larger wagons, the axle straightens when you put pressure on it. Front steering axle can be added.

You can upgrade the steering to manual forced steering, where you can force the axle with the tractor's hydraulic controls.

Or upgrade to fully automatic steering that acts proportionally to the trailers speed.
