Oisolerade hallar

lvarssons in Metsjö has manufactured halls for over 30 years. With that experience and the variety of halls that have been built, there is great experience and good opportunities to find the best for your own hall construction.

• Halls are manufactured in pulpit or gable roof trusses with spans from 8 - 28 m length
• modules in steps of 2.5 m
• Ceiling heights from 2, 5 - 12.0 m
• Roof slope 6°, 8° or 14° depending on truss model

In the insulated option, the inner roof plate is screwed into the subframe of the truss and the wall plate directly into the wall studs. Necessary wind protection fabric and diffusion plastic are installed. Pillars are built into the wall module, which means smooth and uninterrupted wall lines. Wall insulation is mineral wool, roof insulation loose wool.

The entire steel structure is primed. Blasting and topcoat can be obtained. Doors of the type overhead sliding doors, alternatively folding doors or roof sliding doors. Roof drainage system, roof safety equipment. Window combinations according to the customer's wishes. Edge-reinforced concrete slab, alternatively, cast-in-place edge plinth.

Delivery and assembly: The material is transported by car to the construction site. We carry out assembly of complete superstructure.

Standardinnehåll

• Komplett stålstomme med sadeltak (snözon 2.0)
• Regelverk i träutförande samt kondensskydd av armerad plastfolie
• Takplåt TP-18 0,6mm

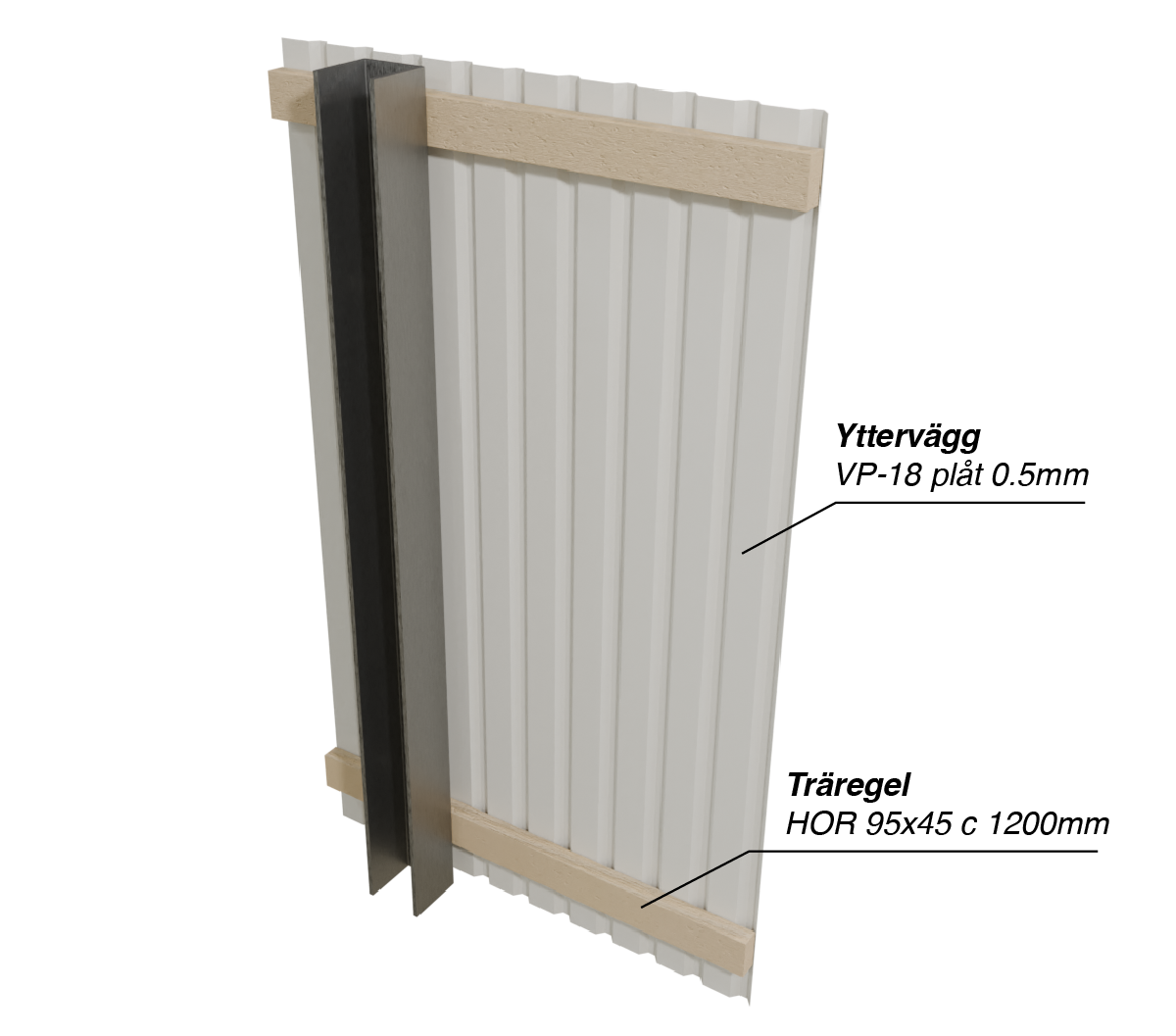

• Fasadplåt VP-18 0,5mm
• Komplett utvändiga beslag samt fästelement
• 1st komplett skjutport typ 1+1
• Montage av stålstomme på betonggrund/sockel
