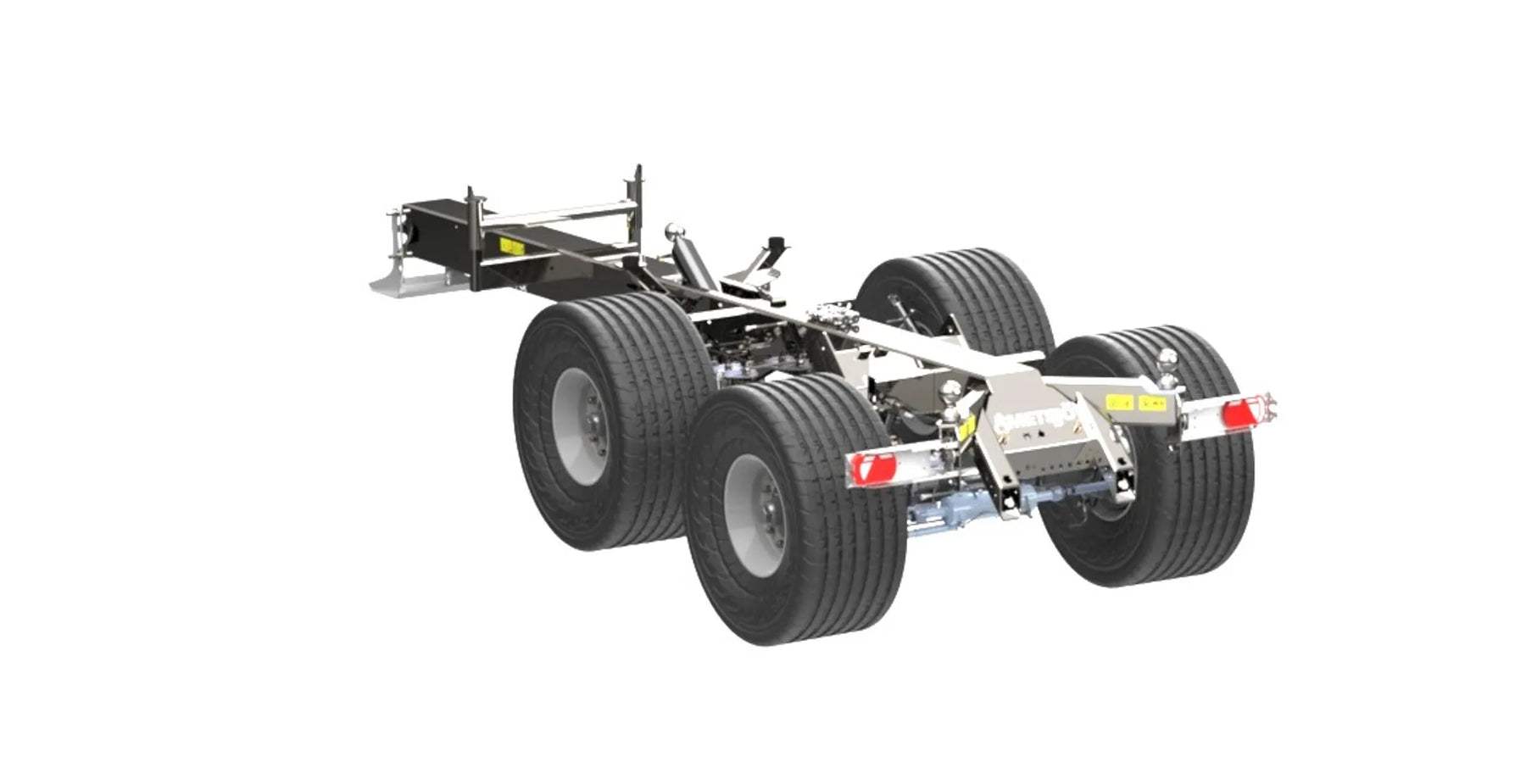

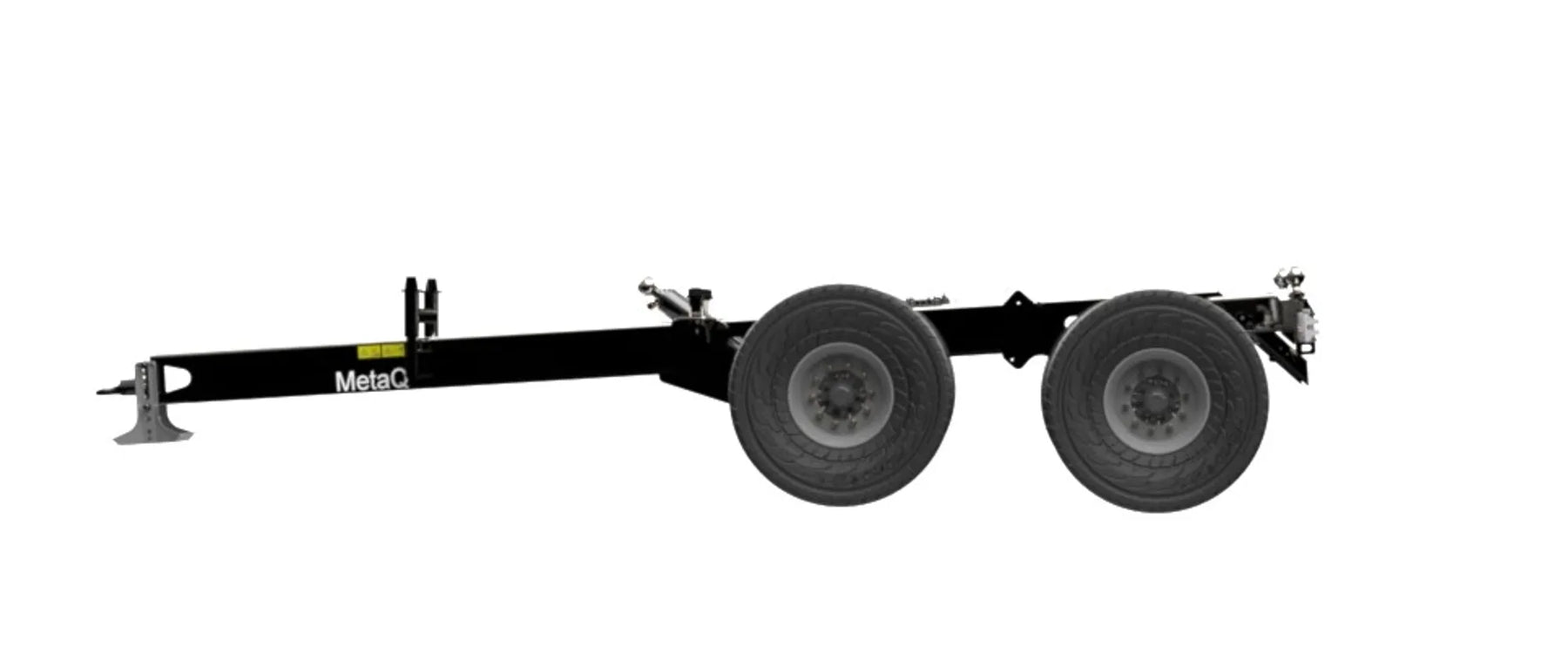

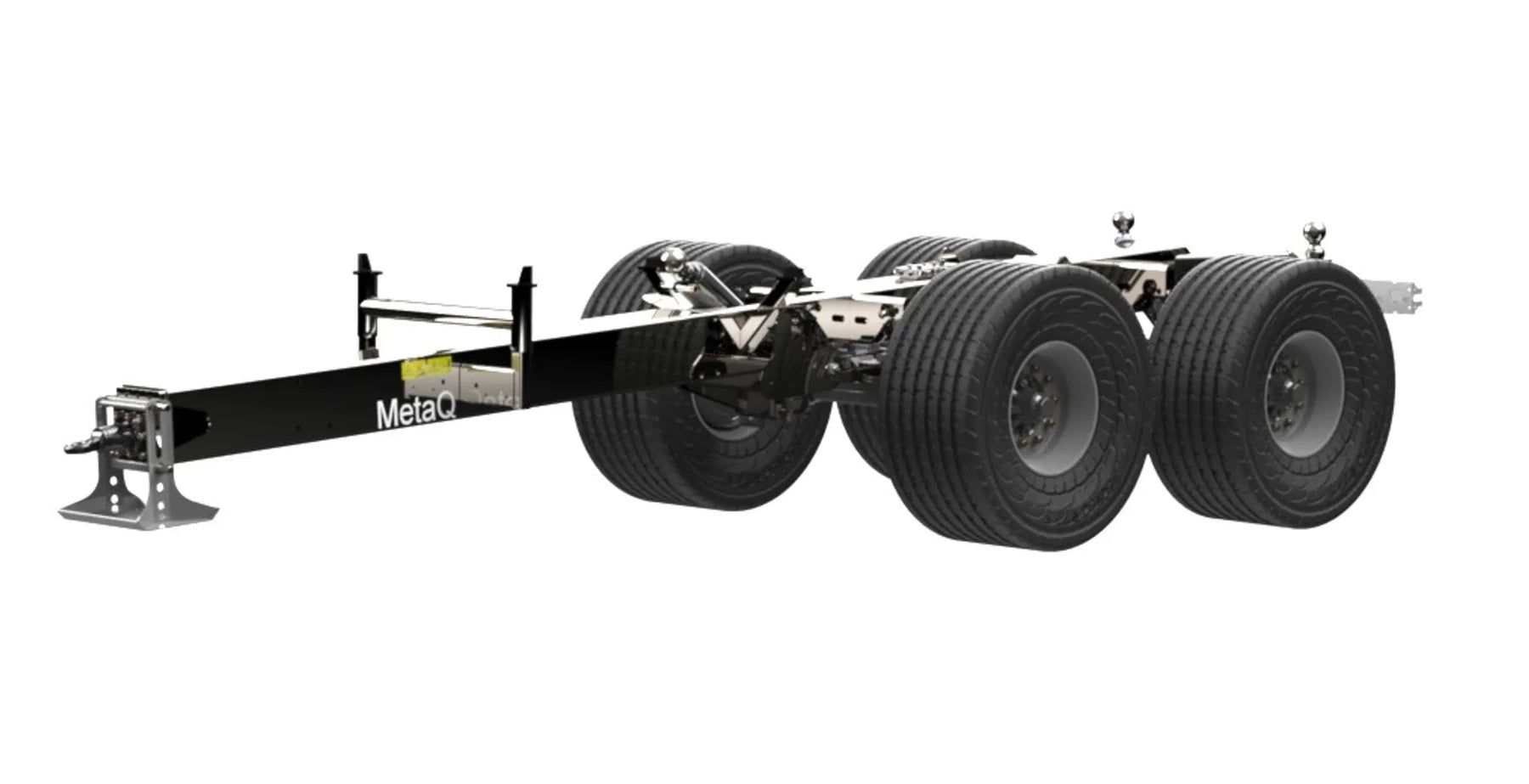

MQ60C chassis 560/60x22,5 cc1810

Item number chassis: 176845 Axles: one-piece axel body 120x120, Flange width 2 000 mm Load: 10,5 ton at 62 km/h, laser aligned Coated according KTL-method, black Axle distance 1 810mm (20 tons), Axle system: Road Self steering axle with hydraulic locking when reversing (axle 2) Rim connection 280x335x10, domed nuts Communicating vessels: The chassis height is adjustable (from the chassis) 350mm Hydraulic brakes on all drums. Size 410x120. According VVFS 2003:20 Automatically adjusted brake arms AGS. Maximum hydraulic pressure 110 bar Cover sheets stop dirt entering the brake drums Back tipping, Tipping angle 52, Oil volume 25L/210 bars, Electrical system 12 Volt Lights according TSV LED 12-24V 7 pol. Connection points for an automatic tailgate Prepared console for mounting different drawbars Colour Metsjö grey Prepared for MetaQ60 bodies Chassis weight: 2 800 kg, Technical load: 24 000 kg, Payload 21 200 kg Surface treatment: chemical degreasing, blasting SA 2,5 The body is puttied. Painting according ISO 12944 A3.09. Colour system: Epoxy primer 2 x 70 µm. Top coat: Polyurethane 1 x 60 µm overall layer 200µm. Corrosion category C4 L Equipped with: Self sterring axle Axle distance 1810mm
