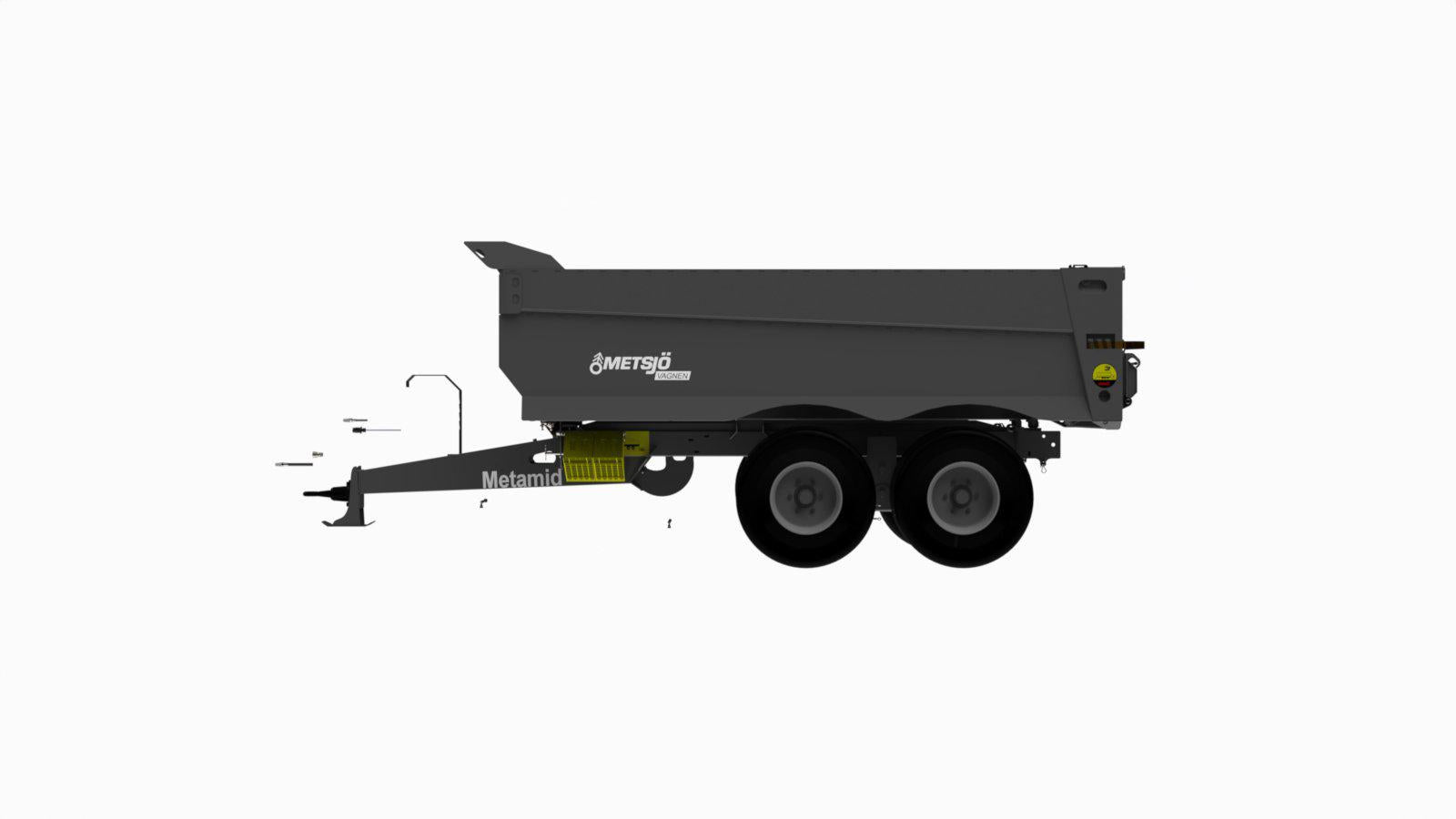

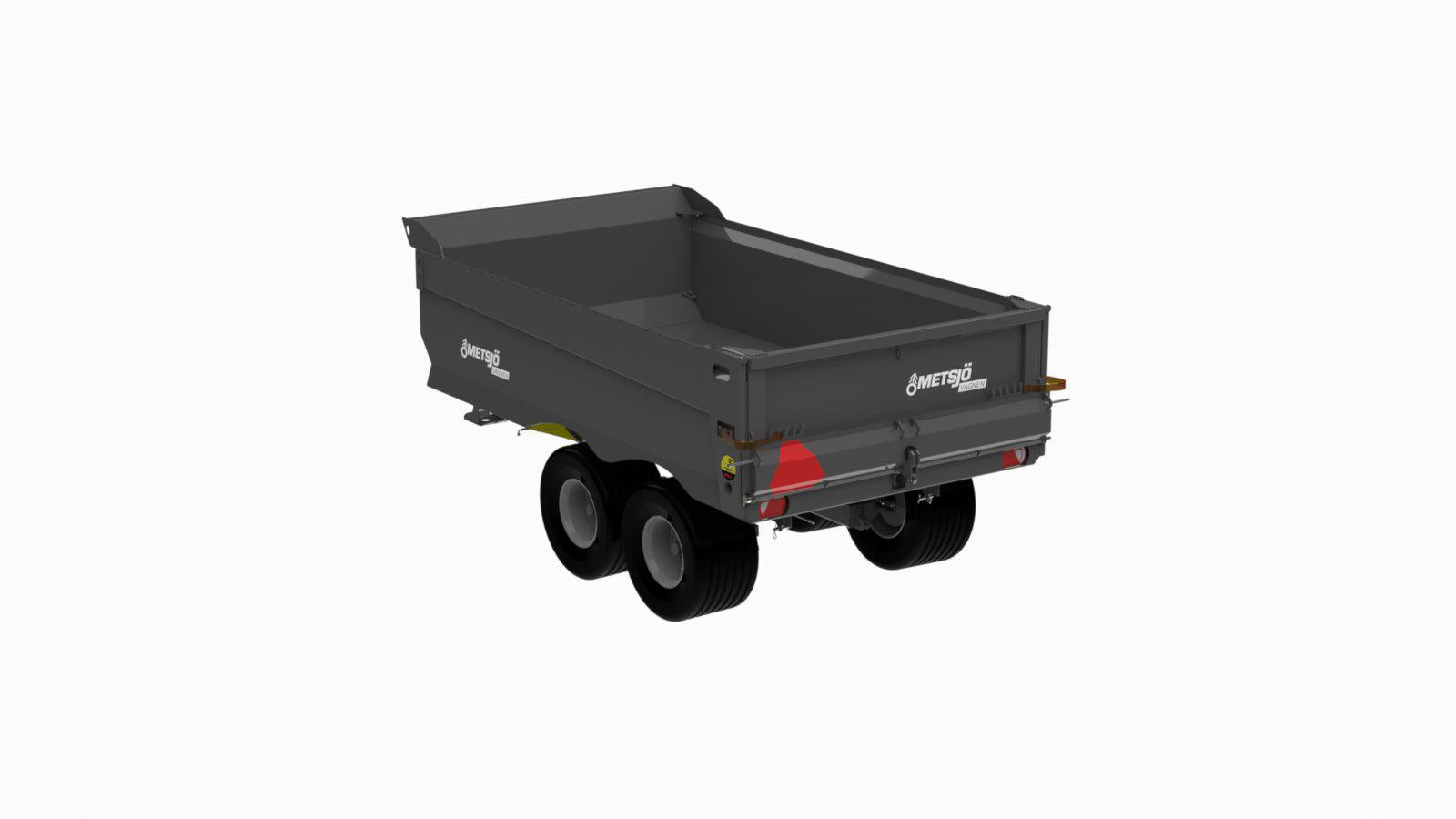

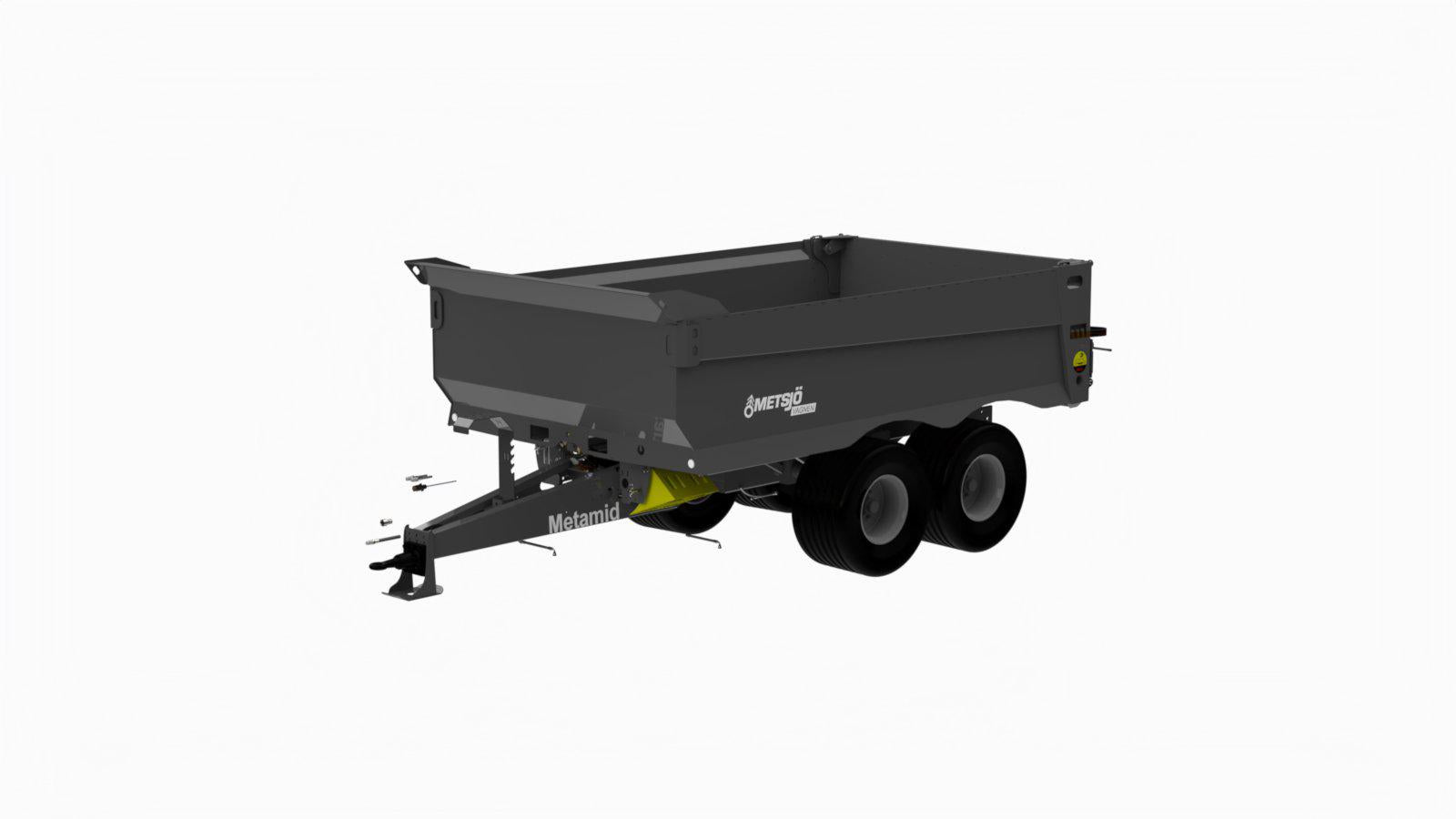

MetaMid Dumper 500/50x17

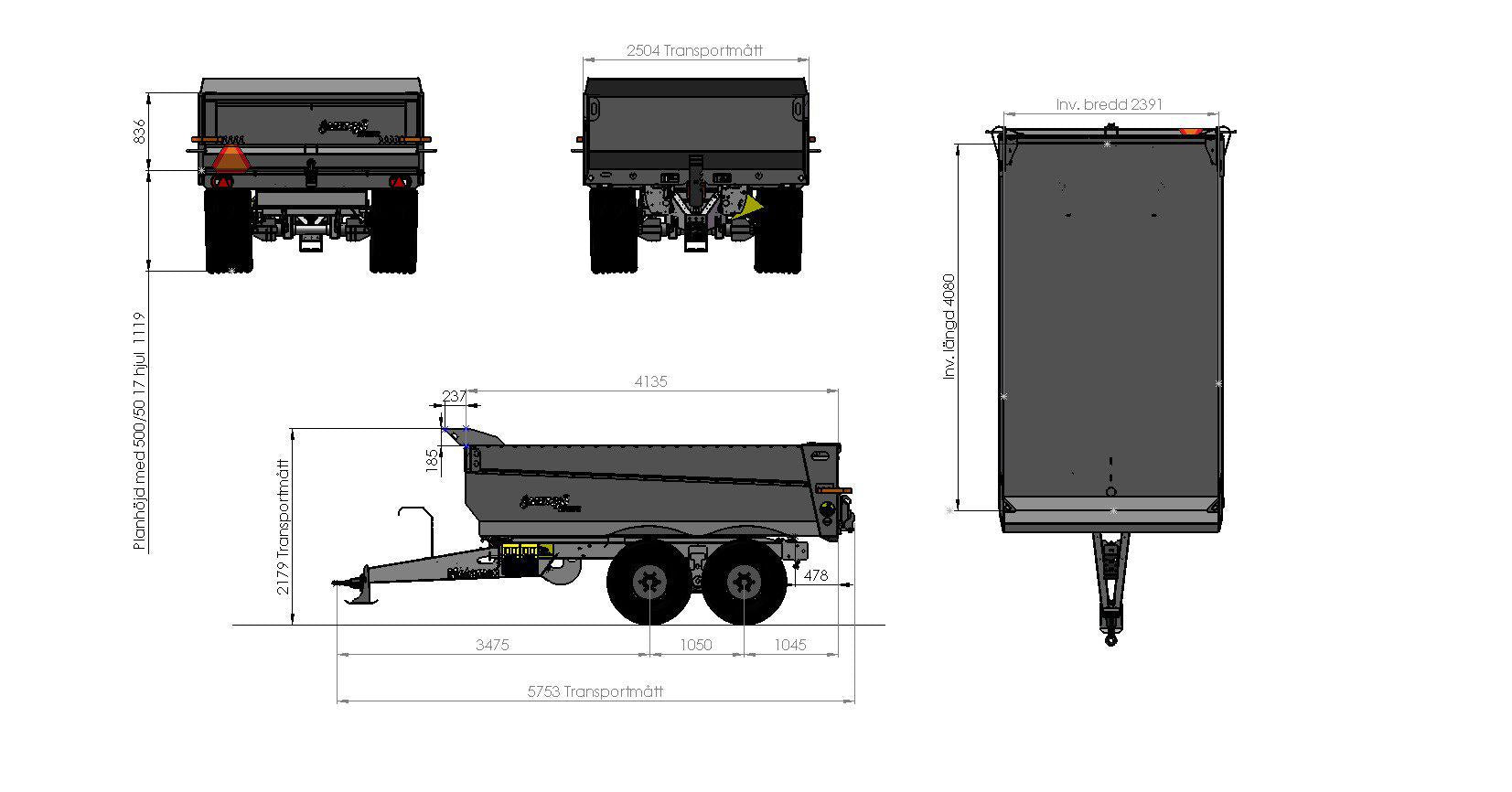

Item number chassis: 174724 Pendulum bogie distance 1050 mm, Maximum load 6 tons per axle Flange width 1850 mm. Coated according to KTL-method, black Rim connection 161x205x6 open nuts Hydraulic brakes: on all drums, According VVFS 2003:20 Manually adjusted brake arms. Maximum hydraulic pressure 110 bar Cover sheets stop dirt entering the brake drums Back tipping, tipping angle 55º, Oil volume 10L /210 bars Lights according TSV LED 12-24V 7 pol. Prepared console for mounting an axle lifting system Prepared console for mounting different drawbars Colour Metsjö grey Prepared for MetaMid/MetaNo bodies Chassis weight 1 550 kg, Technical load 15 000 kg Item number container: 172458 Earth/gravel body MetaMid L4080 H840 W2550 8,5m3 The bed sides are flanged 90" Heavy duty Steel 450 Brinell: Container bed 8 mm and sides 6 mm Purpose: Stones Hydraulic pivoting earth and gravel tailgate H 300 mm Hooks for load securing 1,5 tons inside/outside Consols for mounting different tailgates Consols for mounting supporting legs on the containers Colour grey, painted according Metsjö standards Fits on MetaMid and MetaNo chassis Weight 1 770 kg Equipped with: Pivoting tailgate top-hinged Trafic lights Weight of the trailer 3320 kg, Payload 11 680 kg Surface treatment: chemical degreasing, blasting SA 2,5 The body is puttied. Painting according ISO 12944 A3.09. Colour system: Epoxy primer 2 x 70 µm. Top coat: Polyurethane 1 x 60 µm overall layer 200µm. Corrosion category C4 L Equipped with: Rear hydraulic outlet 1/2 flow, 106643 x 2 pcs. Rear coupler bolt-on clevis + rear electrical socket 7 pol., 105366
