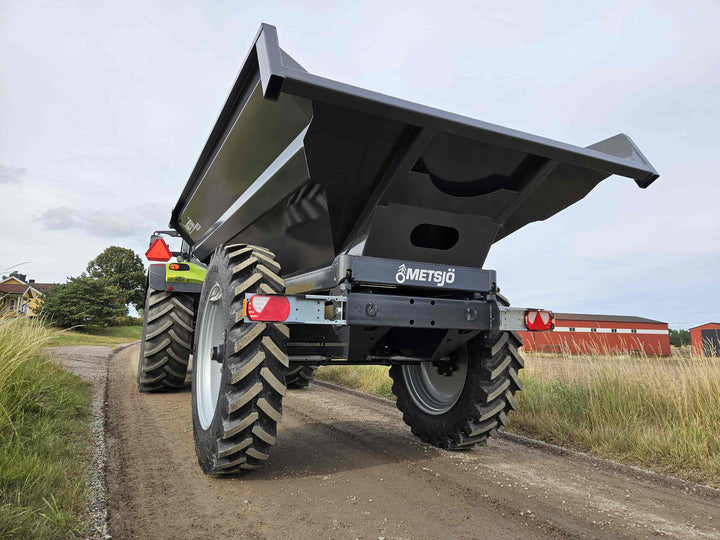

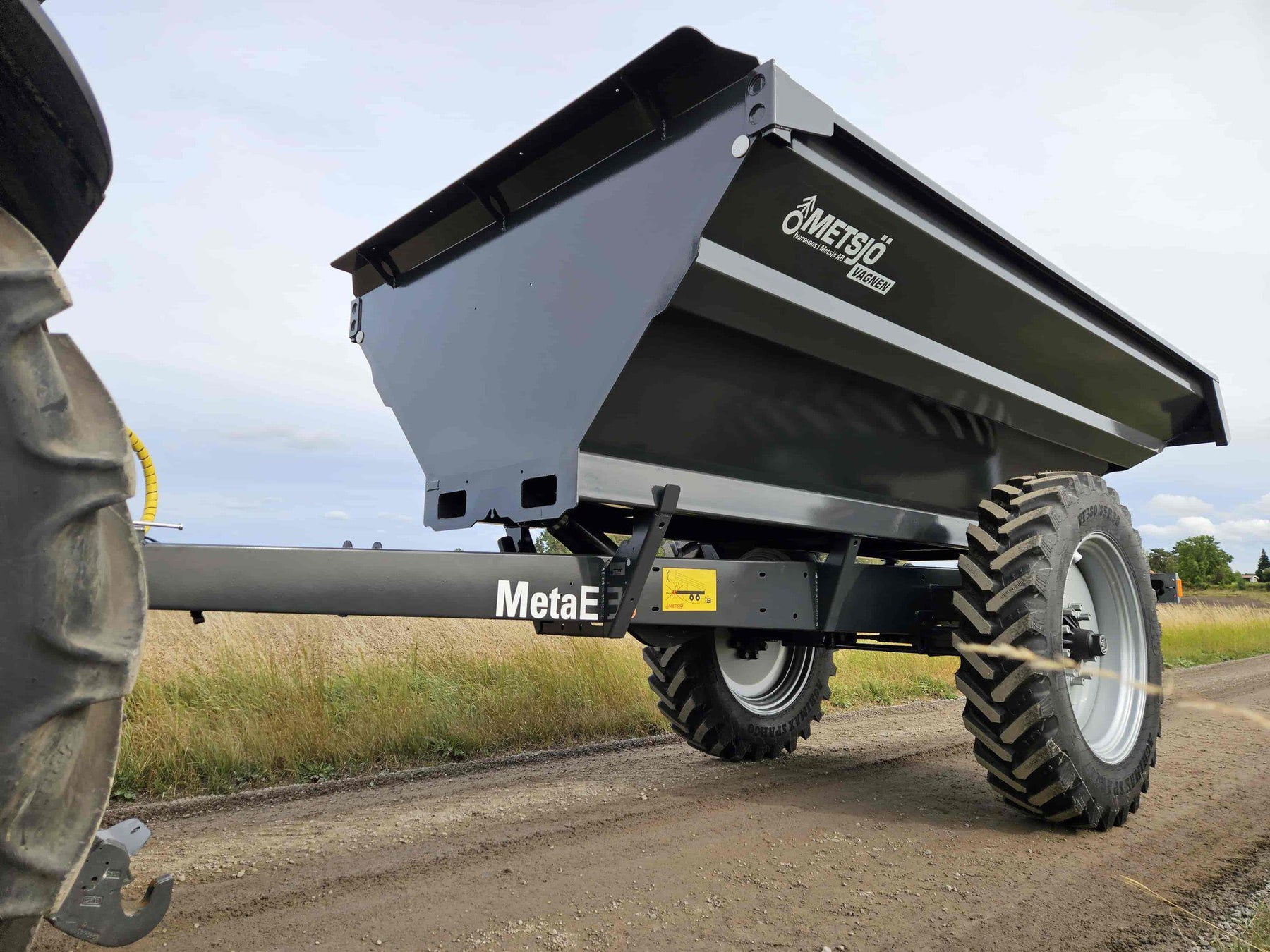

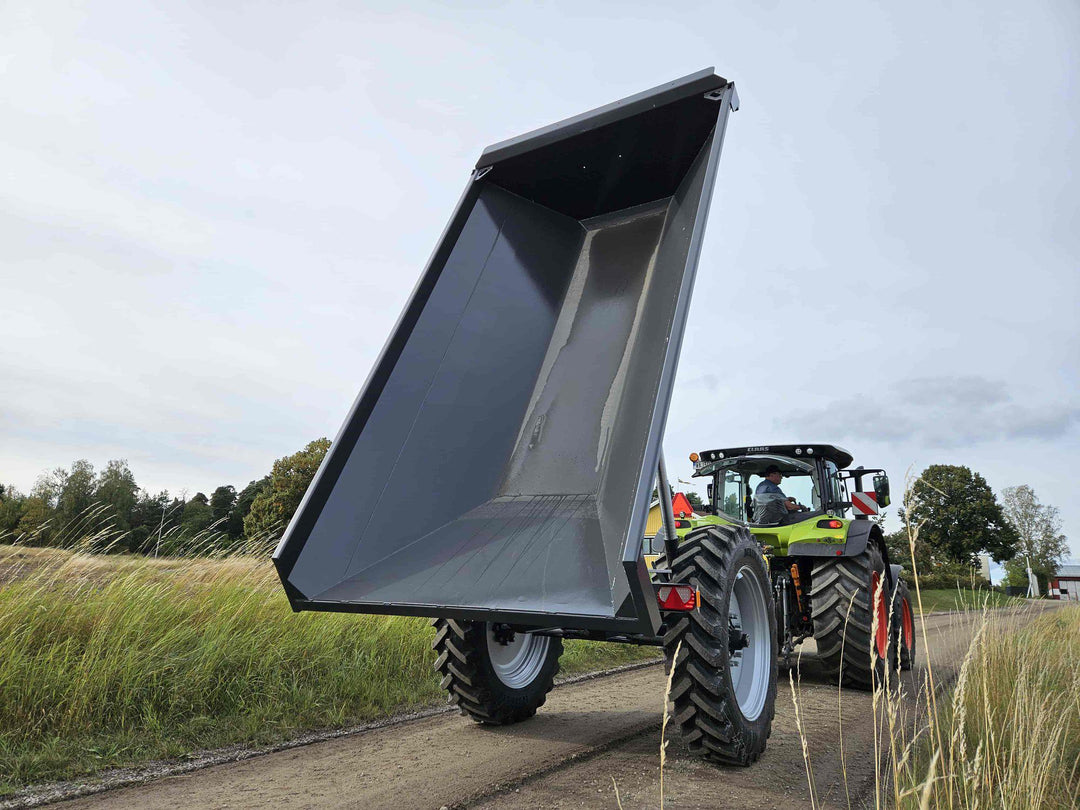

MetaE10 stone 1 axle 380/85x38 without brakes

Art: 167865

Item number kitt: 167636 One axle, Maximum load 10 tons per axle Flange width 1500-2000 mm. Manual adjusted Rim connection 280x335x10 open nuts Without brakes Back tipping, tipping angle 50º, Oil volume 12L /210 bars Lights according TSV LED 12-24V 7 pol. Prepared console for mounting different drawbars, optinal equipment Requiers 1 SA outlet Colour Metsjö grey Prepared for MetaMid/MetaNo bodies Chassis weight 760 kg, Technical load 13 000 kg Stone body Mid/No 8.1 L4500 H900 W2550 8,5m3 The bed sides are flanged 90", Capacity 8,5 m3 Heavy duty Steel 450 Brinell: Container bed 6 mm and sides 4 mm Purpose: Stones Colour grey, painted according Metsjö standards Fits on MetaMid and MetaNo chassis Weight 1 193 kg Weight of the trailer 1953 kg, Payload 11 047 kg Surface treatment: chemical degreasing, blasting SA 2,5 The body is puttied. Painting according ISO 12944 A3.09. Colour system: Epoxy primer 2 x 70 µm. Top coat: Polyurethane 1 x 60 µm overall layer 200µm. Corrosion category C4 L

Tillval för MetaE10 stone 1 axle 380/85x38 without brakes

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Maximized capacity

Low cost per transported ton

We build our trailers as compact as possible with efficient use of width and height. This gives you a smooth trailer and efficient logistics.

Change of container

The right equipment for the right job

On our tipper trailers, you can change the container/flatbed, and in this way use the chassis all year round for harvesting, dump truck driving, manure driving, machine moving and bale transport.

Well-thought-out construction and the best materials

Low own-weight

We construct your body with the best materials in some of Europe's largest industrial machines. For example, almost all containers are built in Brinell 450 (Hardox). This gives us low net weight but high load capacity, which is proven in independent studies that find that our system has approx. 25% less fuel consumption and approx. 50% lower soil compaction compared to conventional systems.

Axles

Stability

Our axle suspension has a wide base and a stable, compliant ride. At Metsjö, we are also masters at building our wagons low.

Large wheels within legal width

Accessibility

Our focus on agriculture has meant that over the years we have developed a construction that enables really large wheels within the legal width

Experience Metsjö

Metsjö is an innovation-leading manufacturer of trailers, hook lifts, mobile storage solutions and machine halls. By controlling the entire chain from steel to finished product – and by using some of Europe's largest industrial machines – we can offer a wide range of industrial and agricultural products. Products that are appreciated by many for their high capacity, market-leading stability and low fuel consumption.
