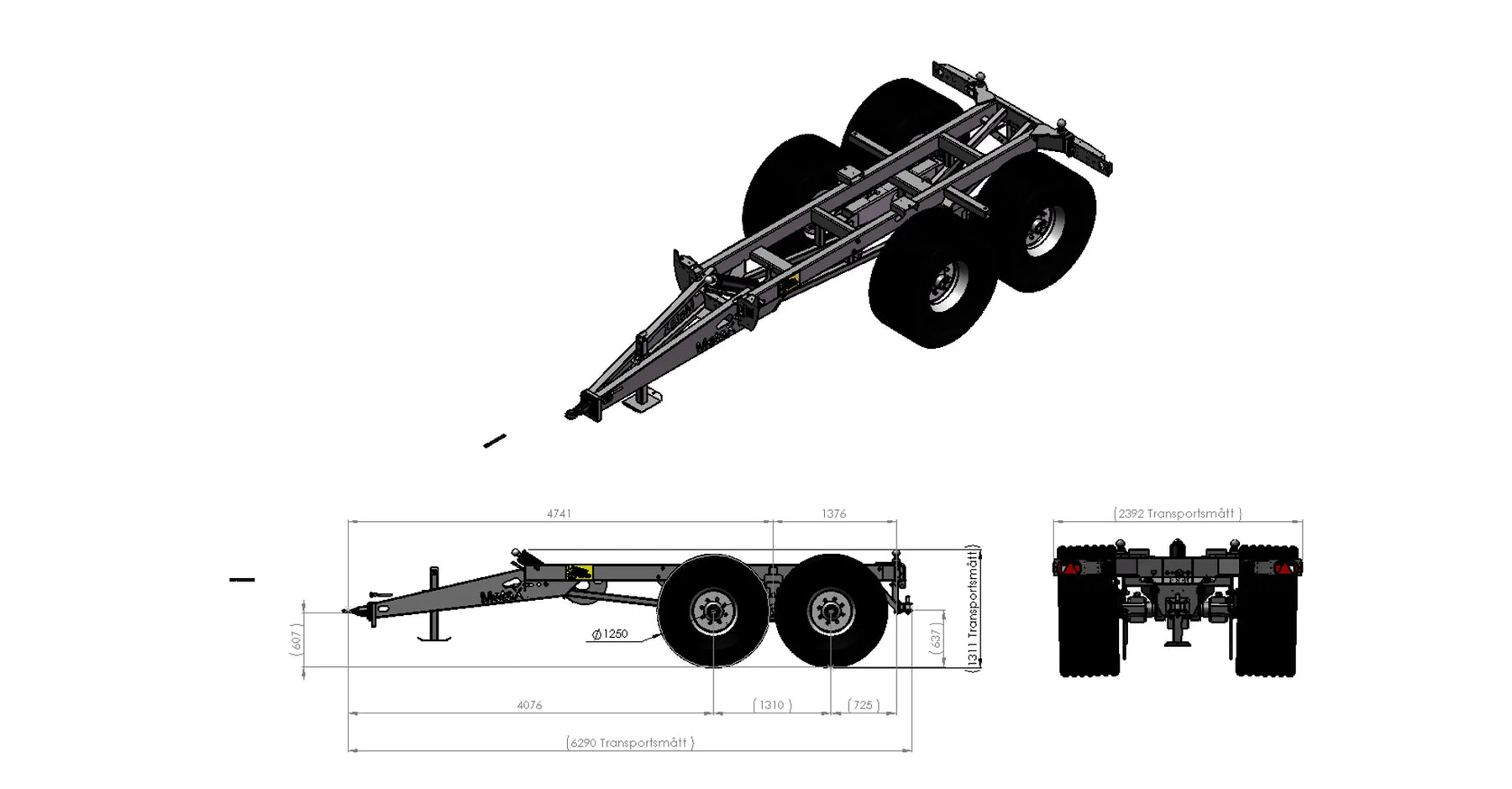

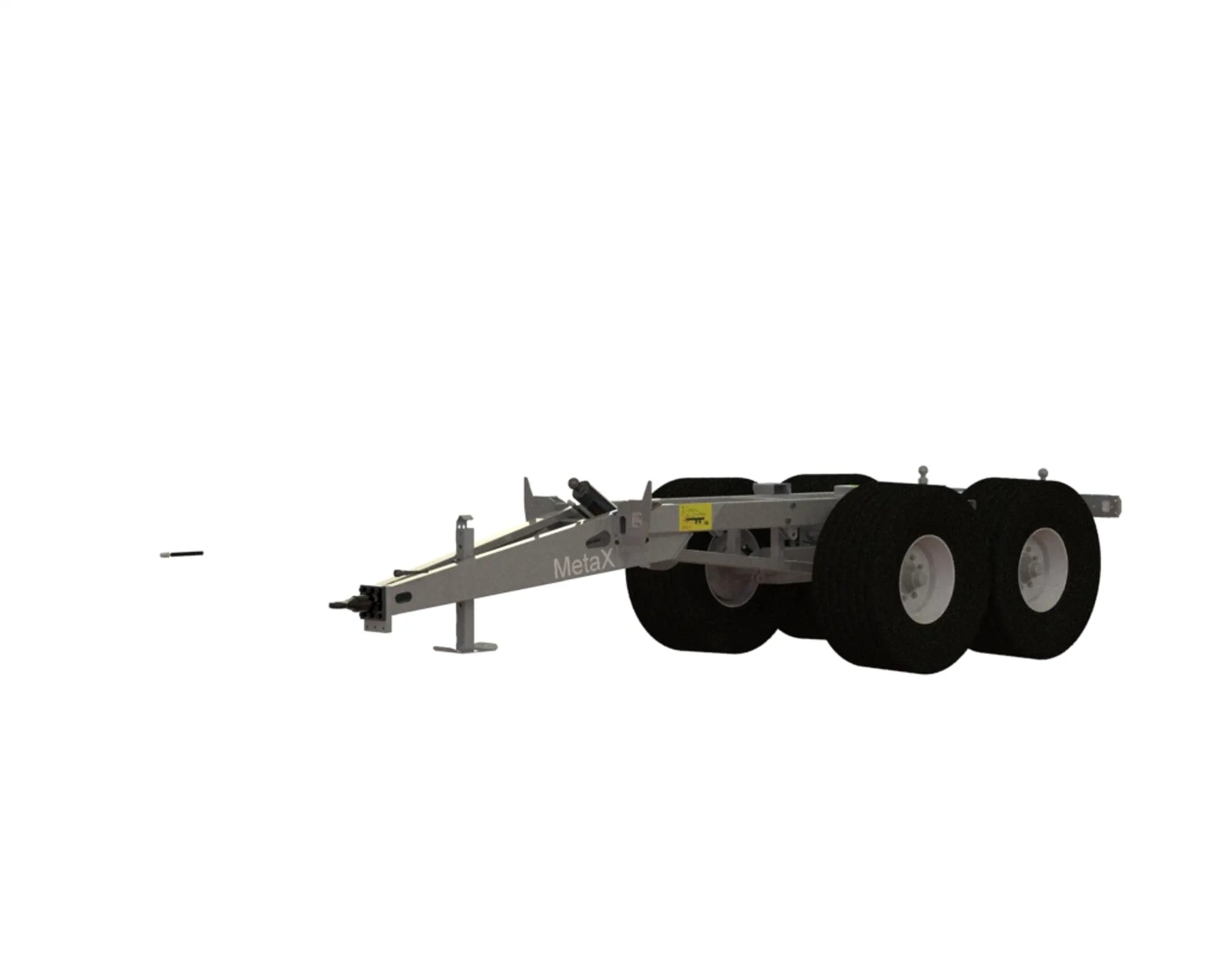

MetaX chassis 560/60x22,5

Item number chassis: 110117 Pendulum bogie distance 1310 mm, Maximum load 9 tons per axle Flange width 1780 mm. Coated according to KTL-method, black Axle profile 120. Rim connection 220x275x8, open nuts Hydraulic brakes: on all drums, According VVFS 2003:20 Automatically adjusted brake arms AGS. Maximum hydraulic pressure 110 bar Cover sheets stop dirt entering the brake drums Back tipping, tipping angle 51º, Oil volume 16L /210 bars Lights according TSV LED 12-24V 7 pol. Connection points for an automatic tailgate Prepared console for mounting an axle lifting system Prepared console for mounting different drawbars Colour Metsjö grey Prepared for MetaX bodies Chassis weight 2 250 kg, Technical load 21 000 kg, Payload 18 750 kg Surface treatment: chemical degreasing, blasting SA 2,5 The body is puttied. Painting according ISO 12944 A3.09. Colour system: Epoxy primer 2 x 70 µm. Top coat: Polyurethane 1 x 60 µm overall layer 200µm. Corrosion category C4 L Equipped with: Rear hydraulic outlet 1/2 flow, 106643 Rear hydraulic brake outlet, 106642 Rear coupler bolt-on clevis + rear electrical socket 7 pol., 105366
