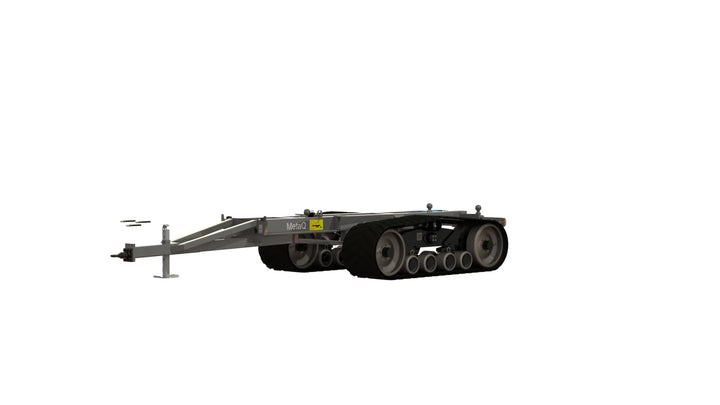

MQ60 rubber tracks TTS80

Art: 137969

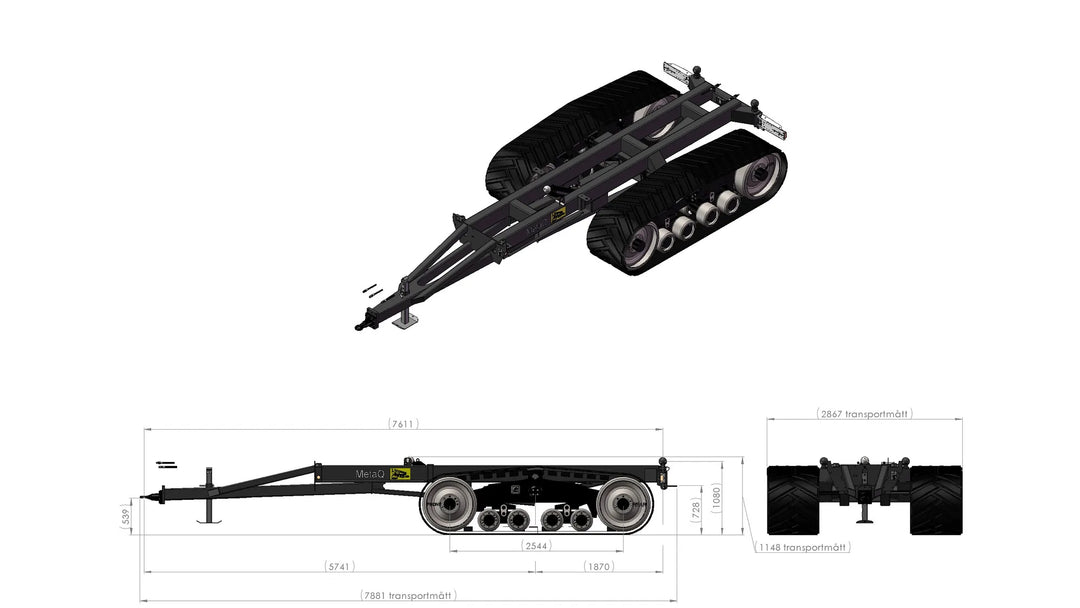

Item number chassis: 137969 Tracks: Camso TTS 80 Payload 36 000 kg Total outer width 2862mm, Trace width 2100mm Width 762mm Track length 3450mm (distance rollers 2830mm) Height 900mm/1013mm 40km/h Hinged in the middle Without brakes Tracks weight 4 500kg Back tipping, Tipping angle 52, Oil volume 25L/210 bars, Electrical system 12 Volt Lights according TSV LED 12-24V 7 pol. Prepared console for mounting different drawbars Colour Metsjö grey Prepared for MetaQ60 bodies Chassis weight: 6 600 kg, Technical load: 39 000 kg, Payload 32 400 kg Surface treatment: chemical degreasing, blasting SA 2,5 The body is puttied. Painting according ISO 12944 A3.09. Colour system: Epoxy primer 2 x 70 µm. Top coat: Polyurethane 1 x 60 µm overall layer 200µm. Corrosion category C4 L Equipped with: Rear hydraulic outlet 1/2 flow, 106643 x 2 pcs.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Back to MetaQ60

Experience Metsjö

Metsjö is an innovation-leading manufacturer of trailers, hook lifts, storage cabinets and machine halls. By controlling the entire chain from steel to finished products at our production site in Sweden — and by using some of Europe’s biggest industrial machines — we can offer a broad range of industrial and agricultural products. Appreciated by so many for their high capacity, market-leading stability and low fuel consumption.
