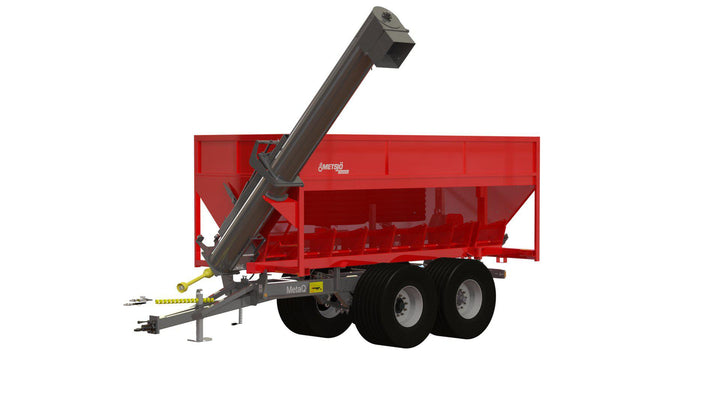

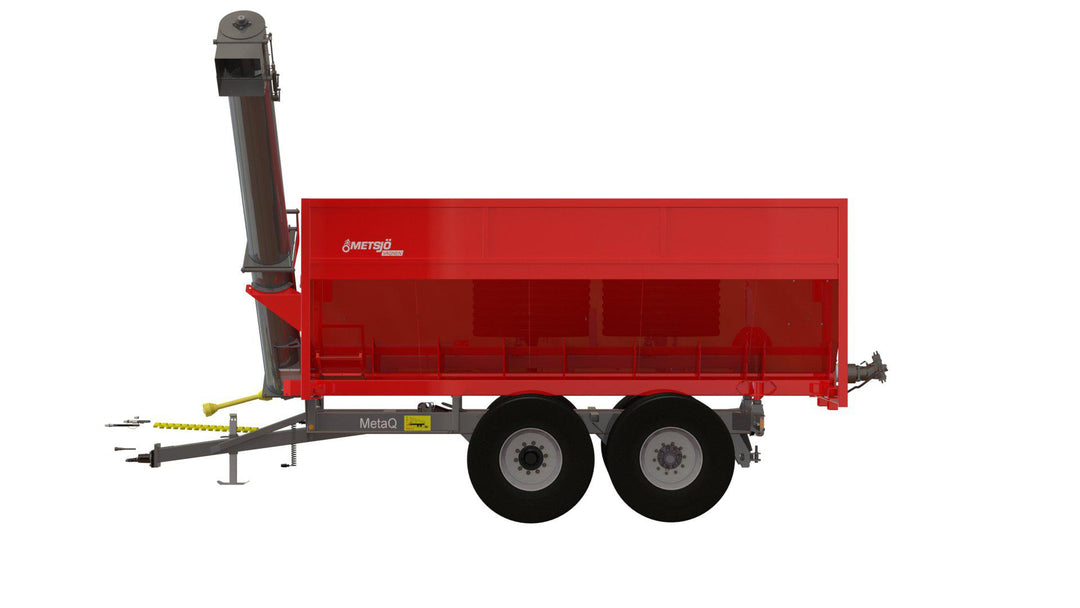

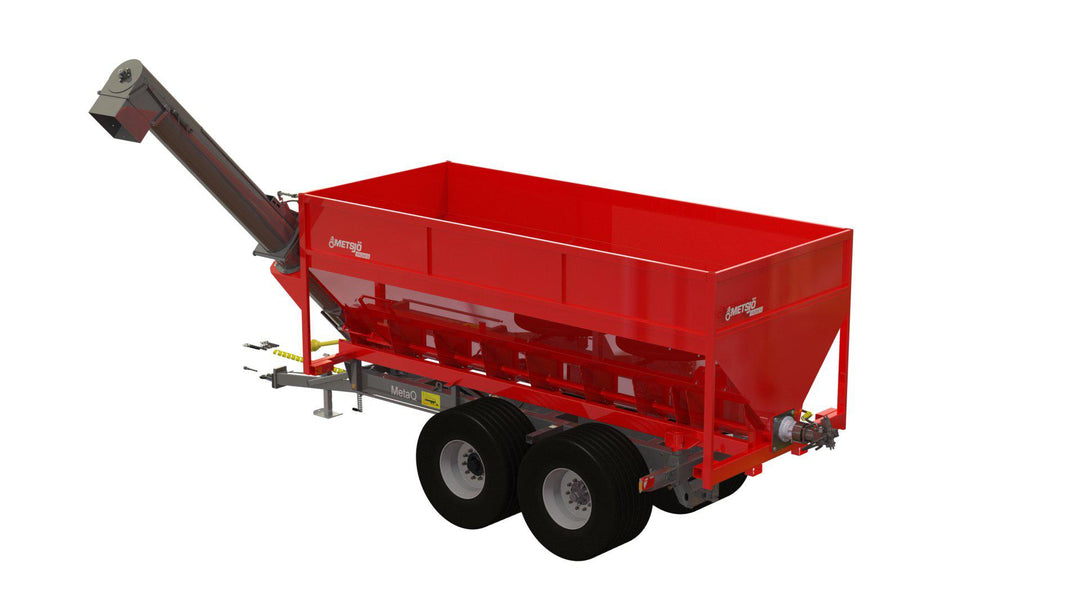

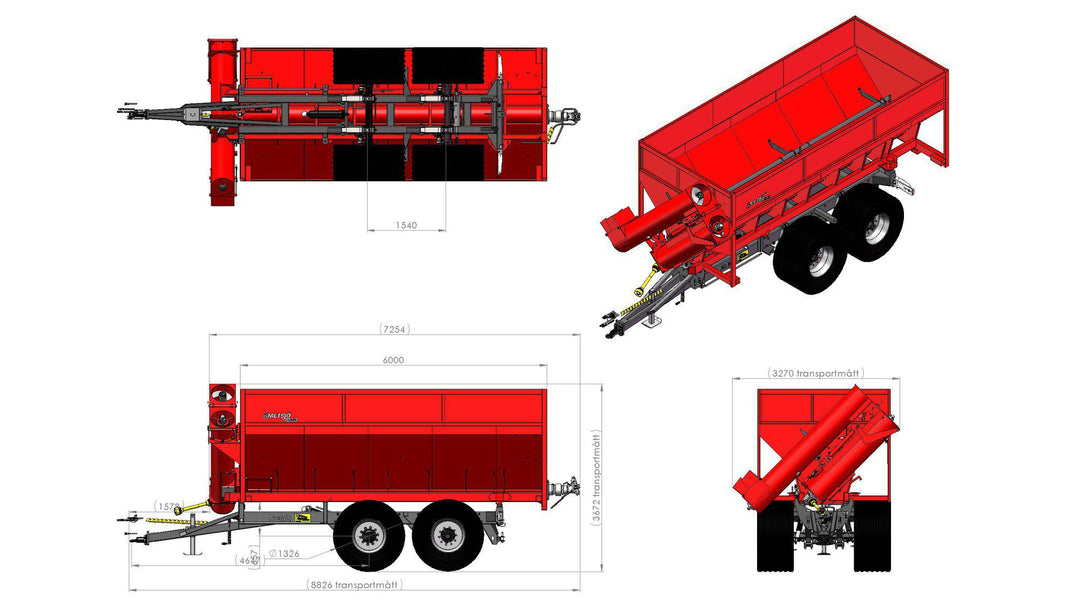

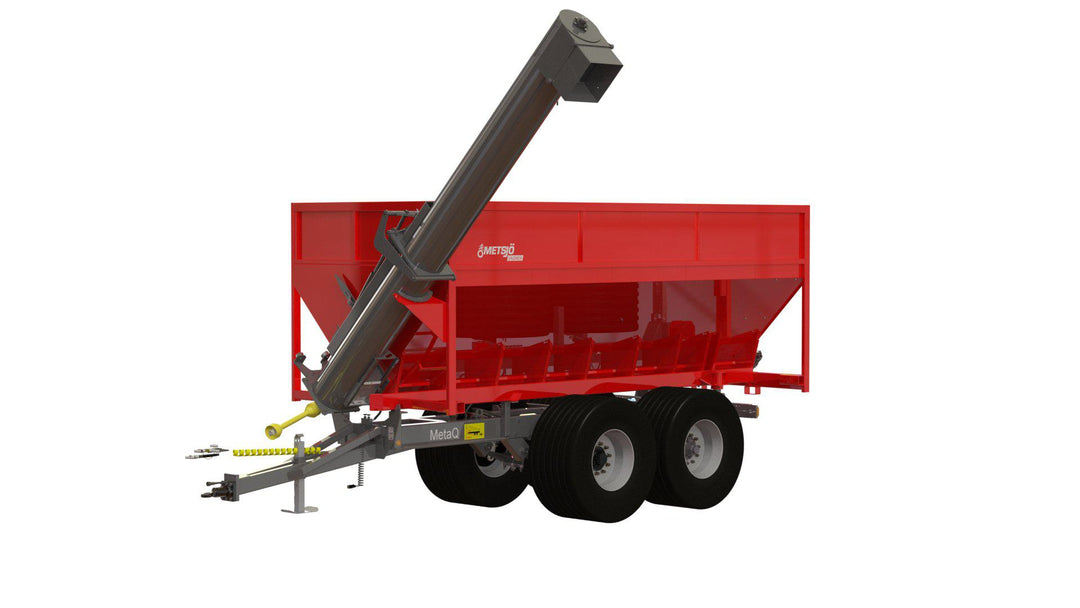

MQ60 grain chaser L6000 H2000 W2600 24m3 710/50x26,5

Art: 108391

Item number chassis: 110140 Axles: one-piece axel body 120x120, Flange width 2 000 mm Load: 10,5 ton at 62 km/h, laser aligned Coated according KTL-method, black Axle distance 1 540mm, Axle system: Road Self steering axle with hydraulic locking when reversing (axle 2) Rim connection 280x335x10, domed nuts Communicating vessels: The chassis height is adjustable (from the chassis) 350mm Hydraulic brakes on all drums. Size 410x120. According VVFS 2003:20 Automatically adjusted brake arms AGS. Maximum hydraulic pressure 110 bar Cover sheets stop dirt entering the brake drums Back tipping, Tipping angle 52, Oil volume 25L/210 bars, Electrical system 12 Volt Lights according TSV LED 12-24V 7 pol. Connection points for an automatic tailgate Prepared console for mounting different drawbars Colour Metsjö grey Prepared for MetaQ60 bodies Chassis weight: 3 000 kg, Technical load: 24 000 kg Item number container: 108306 Grain chaser bin MQ60 PTO 540 L6000 H2000 W2600 24m3 Steel 355 Brinell: lower side 3 mm / upper side 2mm 1 shutter in the front at the unloading auger 1 shutter in the bottom feeding Mechanically adjustable inner V - sheet over the feeding auger (for different crop densities) Sight window on the front wall (perforated)-cover sheet available (not standard) 1 ladder on the rear wall (excluded if equipped with standing platform) 1 ladder inside of the body Hydr.folding of unloading auger,transport/loading position with an over centre valve Auger driven by hydr.motor which works in both directions Hydr.flow 90l/min at 180 bar Unloading time 3 min (wheat with a moisture of 20%) Measurements: Length 6 000mm, Width 2 600mm, Height 2 000mm Length with unloading auger 7 000mm Width transport position 3 100mm Width unloading position 5 050mm Height unloading position with wheel diameter 1 350mm: Total height 5 050mm and free height under auger 4 800mm Requires: 3 DA hydr.outlets Colour red, painted according Metsjö standards Fits on MetaQ60 and Olympia 60 chassis Weight 3 350kg Weight of the trailer 6350 kg, Payload 17 650 kg Surface treatment: chemical degreasing, blasting SA 2,5 The body is puttied. Painting according ISO 12944 A3.09. Colour system: Epoxy primer 2 x 70 µm. Top coat: Polyurethane 1 x 60 µm overall layer 200µm. Corrosion category C4 L Equipped with: Rear hydraulic outlet 1/2 flow, 106643 xx 2 pcs. Rear hydraulic brake outlet, 106642 Rear coupler bolt-on clevis + rear electrical socket 7 pol., 105366 Self sterring axle, 113241

Tillval för MQ60 grain chaser L6000 H2000 W2600 24m3 710/50x26,5

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Alternative Chassis
Alternative Containers
Back to 24 Ton MetaQ 60
Maximized capacity

Low cost per transported ton

We build our trailers as compact as possible with efficient use of width and height. This gives you a smooth trailer and efficient logistics.

Change of container

The right equipment for the right job

On all our wagons with the MetaQ system, you can change the container/ flatbed, and in this way use the chassis all year round for harvesting, dumper, manure driving, machine moving and bale transport. In changing the body, the chassis is raised 35 cm with the hydraulic suspension and the axles in the tip joints are loosened. Tool legs are placed in the container body and the chassis is then lowered. Ready for change.

Well-thought-out construction and the best materials

Low own-weight

We construct your body with the best materials in some of Europe's largest industrial machines. For example, almost all containers are built in Brinell 450 (Hardox). This gives us low net weight but high load capacity, which is proven in independent studies that find that our system has approx. 25% less fuel consumption and approx. 50% lower soil compaction compared to conventional systems.

Laser-aligned axles

Maneuverability and efficiency

We laser align our BPW axles for optimal compliance, reduced tire wear and fuel consumption. It is proven in independent studies that our system has approx. 25% less fuel consumption and approx. 50% lower soil compaction compared to conventional systems.

Hydraulic axle suspension

Comfort and stability

Our hydraulic axle suspension with communicating vessel technology has a wide base and a stable ride. At Metsjö, we are also masters at building our trailers low.

Large wheels within legal width

Accessibility

Our focus on agriculture has meant that over the years we have developed a construction that enables really large wheels within the legal width

Rear steering axle

Maximized maneuverability

Rear steering axle is standard on our larger wagons, the axle straightens when you put pressure on it. Front steering axle can be added.

You can upgrade the steering to manual forced steering, where you can force the axle with the tractor's hydraulic controls.

Or upgrade to fully automatic steering that acts proportionally to the trailers speed.

Experience Metsjö

Metsjö is an innovation-leading manufacturer of trailers, hook lifts, mobile storage solutions and machine halls. By controlling the entire chain from steel to finished product – and by using some of Europe's largest industrial machines – we can offer a wide range of industrial and agricultural products. Products that are appreciated by many for their high capacity, market-leading stability and low fuel consumption.
