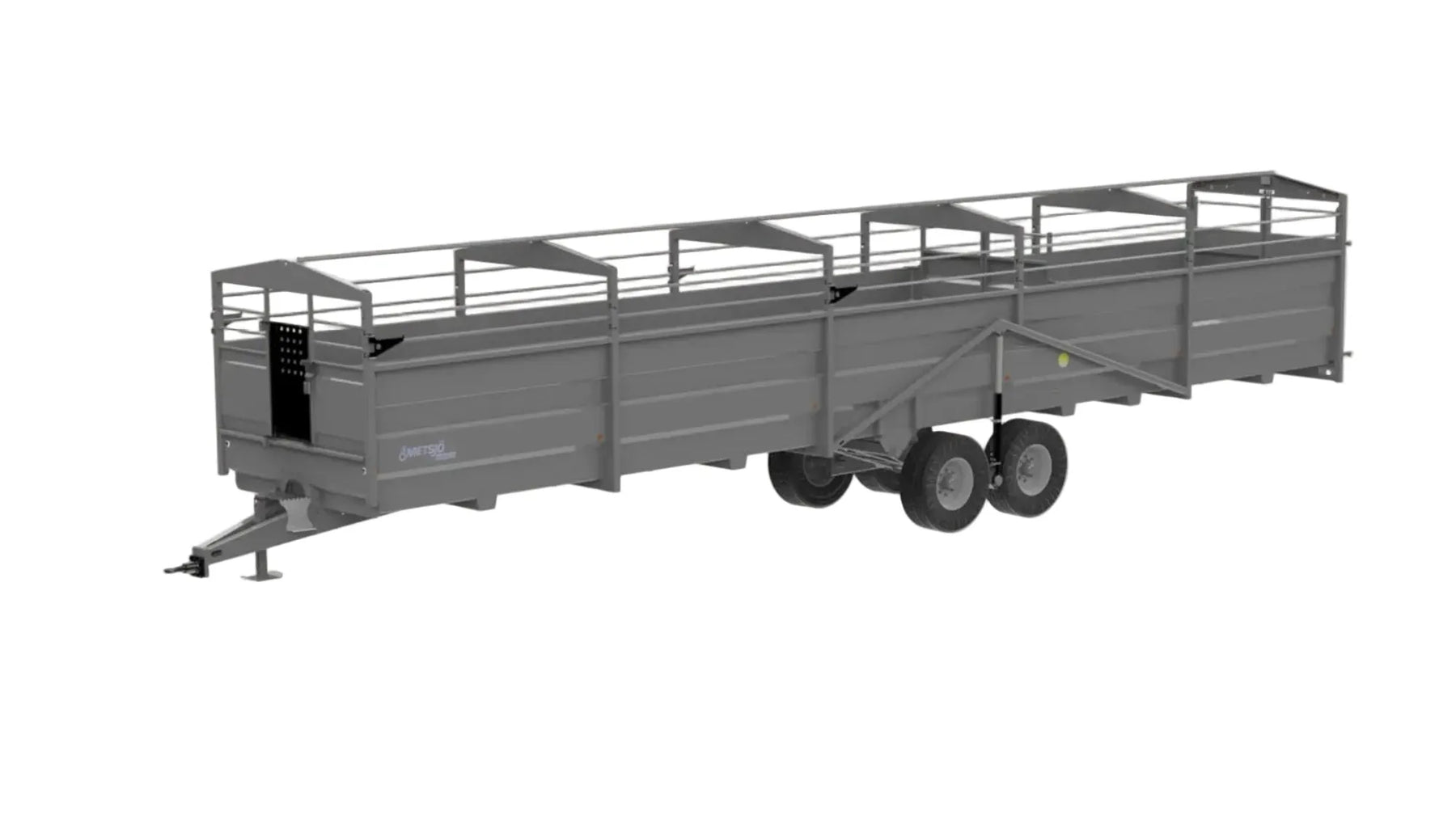

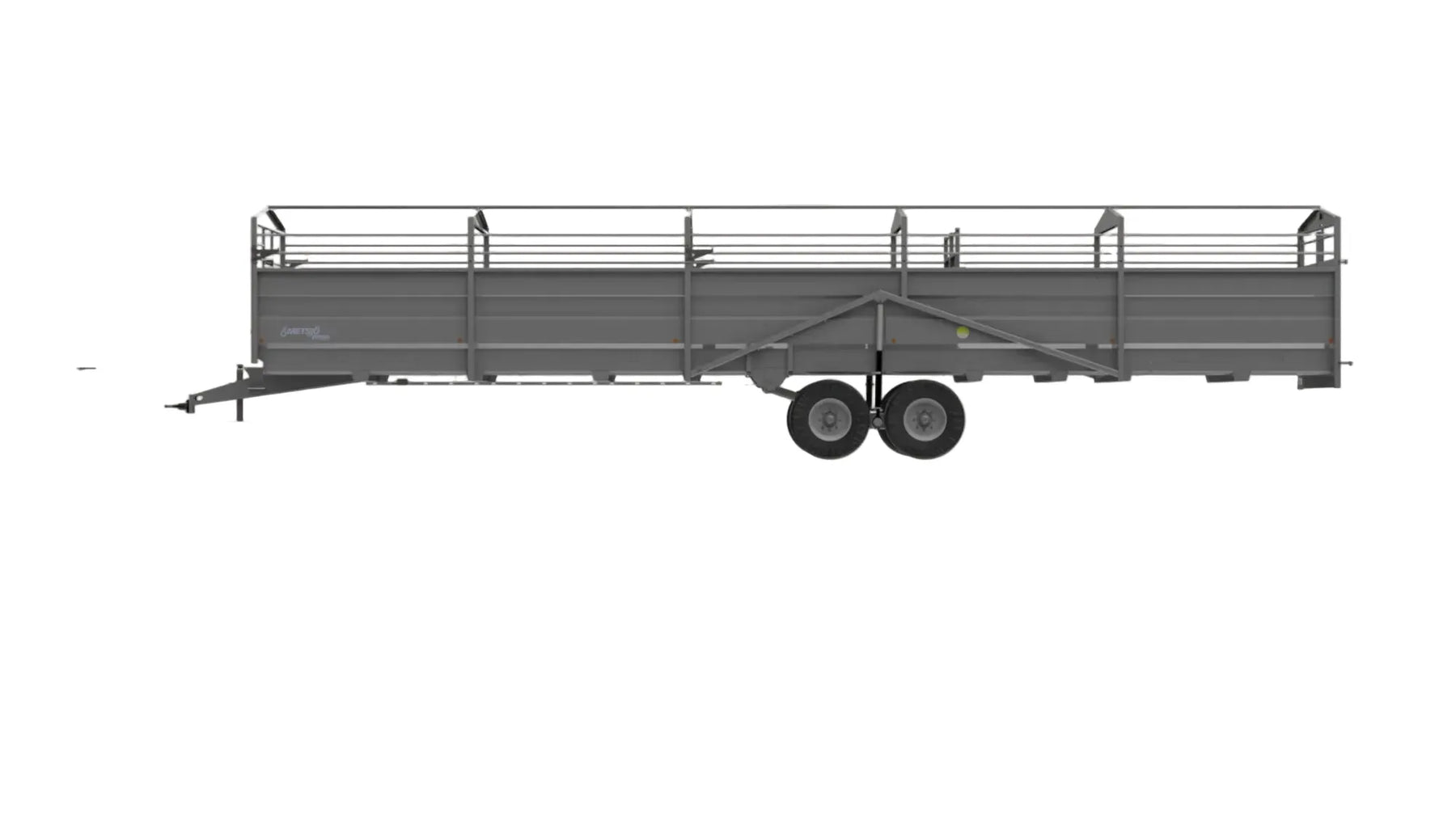

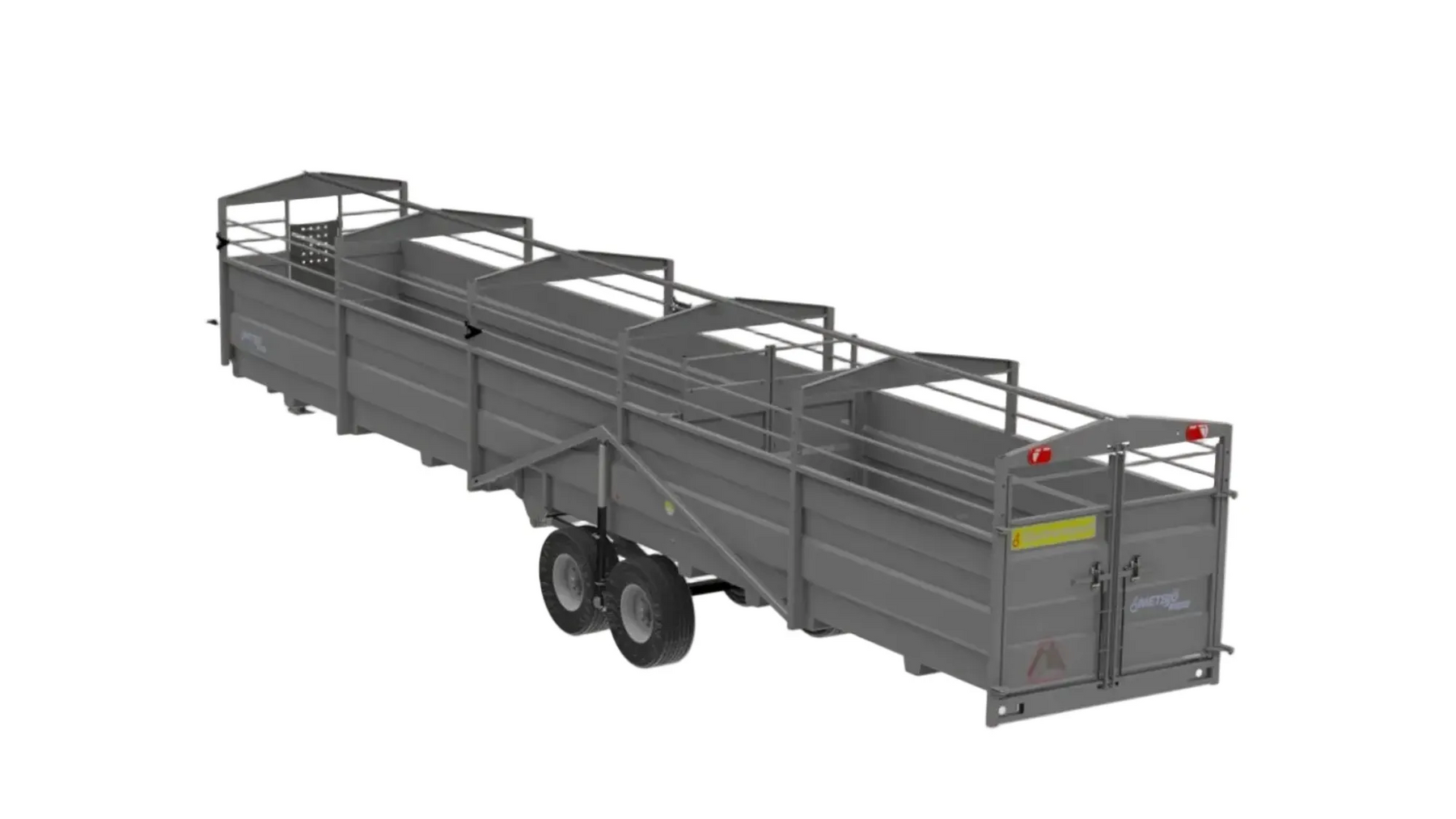

MetaMove 15m 385/65x22,5

MetaMove 15 Item number complete: 175171 Length 16600mm (Platform 15000mm ) Width 2550mm (in. 2350mm straight walls) Transport height of the platform 1050mm, Loading height 250mm - hydraulically controlled from tractor Total height 3450mm Slip secured platform Pendulum bogie distance 1310 mm, Maximum load 9 tons per axle Flange width 1850 mm. Coated according to KTL-method, black Rim connection 220x275x8 open nuts Hydraulic brakes: on all drums, According VVFS 2003:20 Manually adjusted brake arms. Maximum hydraulic pressure 110 bar Cover sheets stop dirt entering the brake drums Rear doors opening 270" Front evacuation door Roof from Zinc steel plates is OPTIONAL equipment Hitch drawbar Telescopic jack Prepared console for mounting inner partition doors Consoles for mounting outer animal doors Prepared console for mounting different drawbars Lights according TSV LED 12-24V 7 pol. Requires one double-acting + one simple acting hydraulic outlets Colour Metsjö grey Chassis weight 5 000 kg, Technical load 21 000 kg, Payload 16 000 kg Surface treatment: chemical degreasing, blasting SA 2,5 The body is puttied. Painting according ISO 12944 A3.09. Colour system: Epoxy primer 2 x 70 µm. Top coat: Polyurethane 1 x 60 µm overall layer 200µm. Corrosion category C4 L
