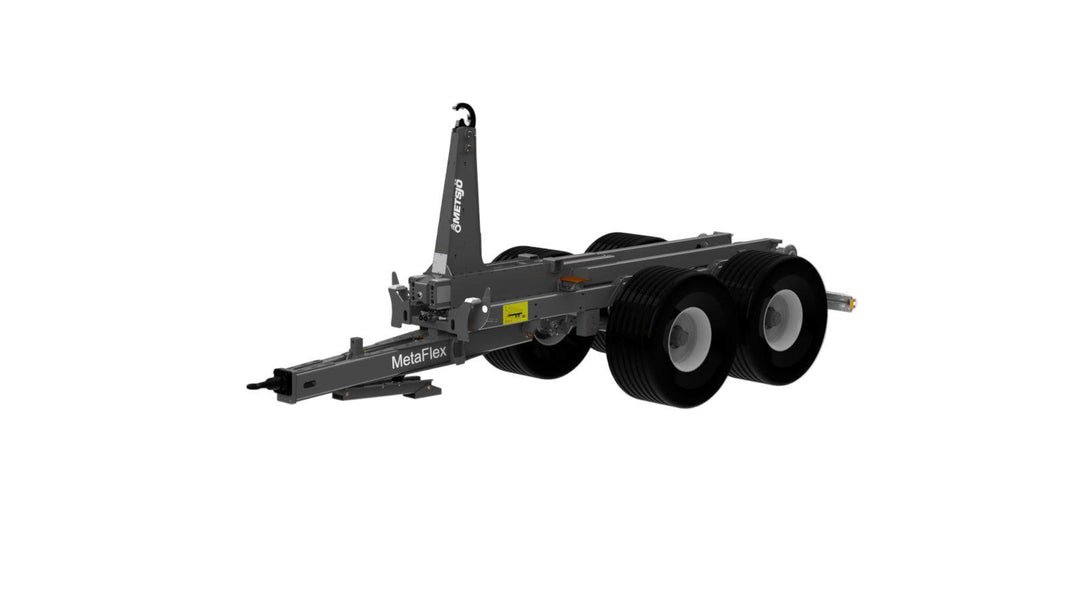

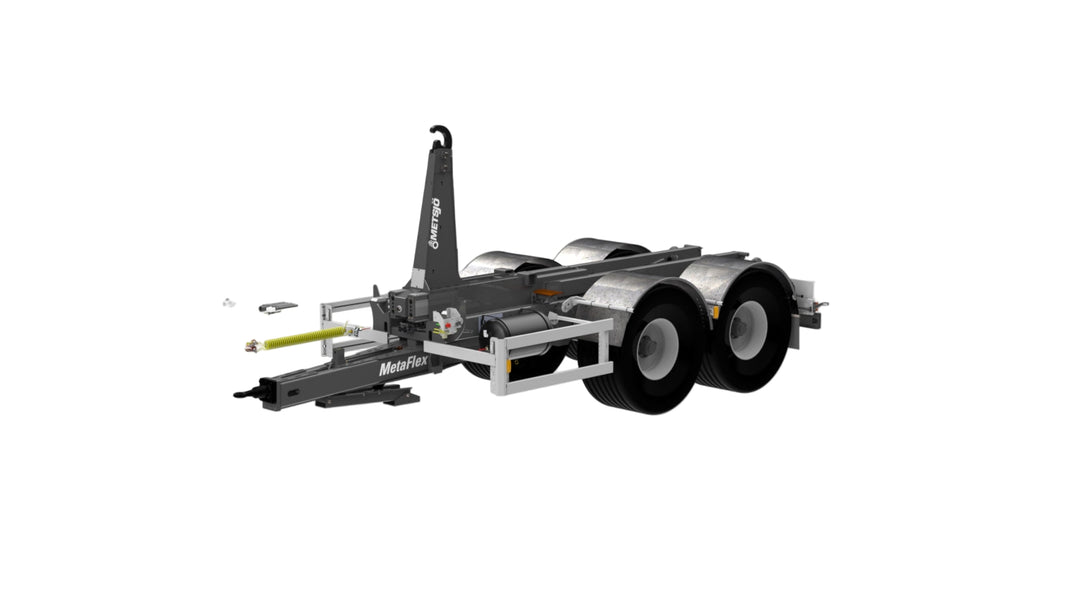

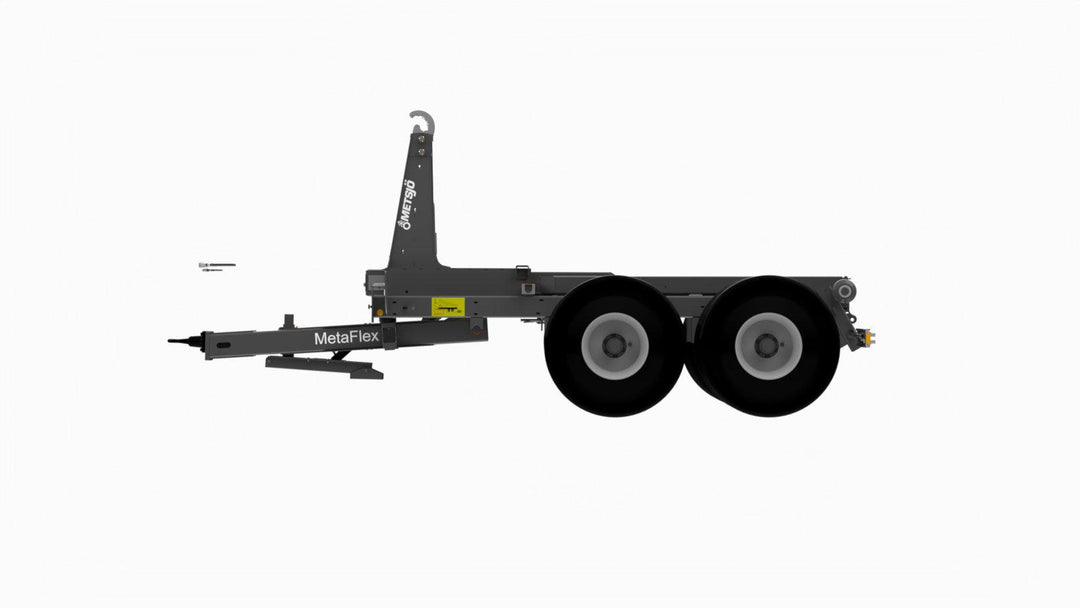

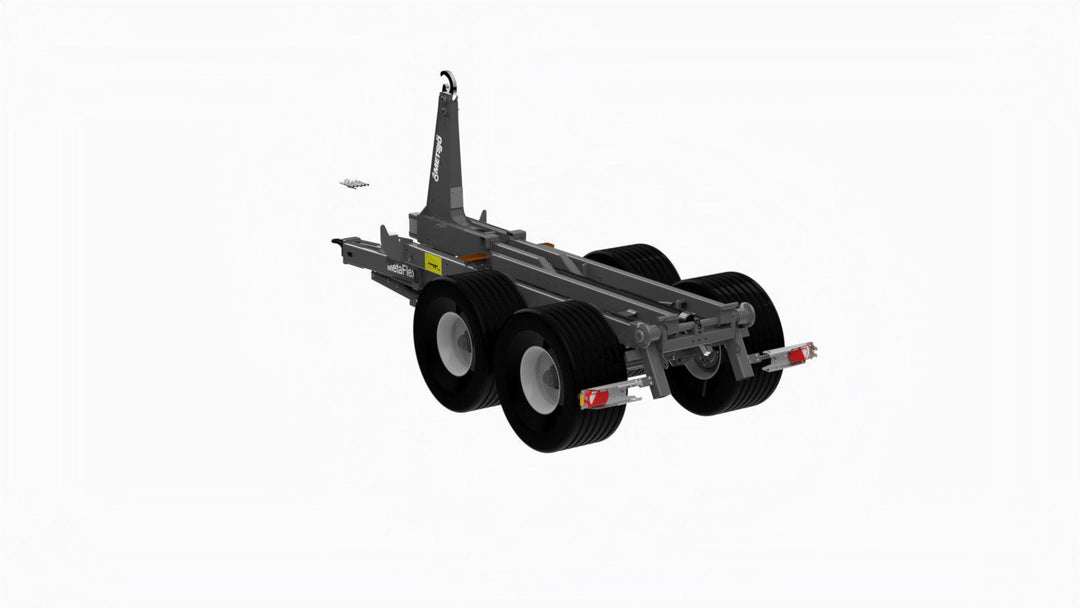

MF40-60 Hook Lift Trailer 560/60x22,5

Item number 172270 Container standards DIN 30722 SIS3021 SS3659, Hook height 1450 mm - 1570 mm Container lengths 4000mm-6000mm. Optimized for 5,2m meter containers Telescopic tower (1050mm) with adjustable load on the drawbar Drawbar with possibility for height adjustment. Hydraulic adjustment is an add on. Axles: one-piece axel body 110x110, Flange width 1 800 mm Load: 8,5 ton at 60 km/h, laser aligned Coated according KTL-method, black Axle distance 1 350mm (17 tons), Axle system: Road Rim connection 220x275x8, domed nuts Communicating vessels: The chassis height is adjustable (from the chassis) 350mm Hydraulic brakes on all drums. Size 340x110. According VVFS 2003:20 Manually adjusted brake arms AGS. Cover sheets stop dirt entering the brake drums. Hydraulic outlets needed on tractor: 2 DA +1SA+ free return+ brakes, el. system 12 Volt Tipping power 17 tons with 5,2m container, with tower fully forward at 210 bars Tipping angle 55º,Oil volume needed while tipping 18 liters Shifting power 18 tons, Oil volume needed while shifting 20 liters Oil volume need from tractor: 16 L/210 Bar, Oil tank in tractor min.20L Lights according TSV LED 12-24V 7 pol. Hydraulic switching between shifting and tipping Prepared console for mounting different drawbars. Hitch eye 50 mm is standard Prepared for hydraulic and electric outlet in rear and on tower Prepared console for mounting a hydraulic underrun protection Prepared console for mounting a hydraulic rear supporting bar Prepared for chassi height regulation from driver seat Colour Metsjö grey Chassis weight 3 100 kg, Technical load 20 000 kg, Payload 16 900 kg Surface treatment: chemical degreasing, blasting SA 2,5 The body is puttied. The colour of the chassis is grey Painting according ISO 12944 A3.09. Colour system: Epoxy primer 2 x 70 µm. Top coat: Polyurethane 1 x 60 µm overall layer 200µm. Corrosion category C4 L Extra equimpent: Hydraulic support leg
