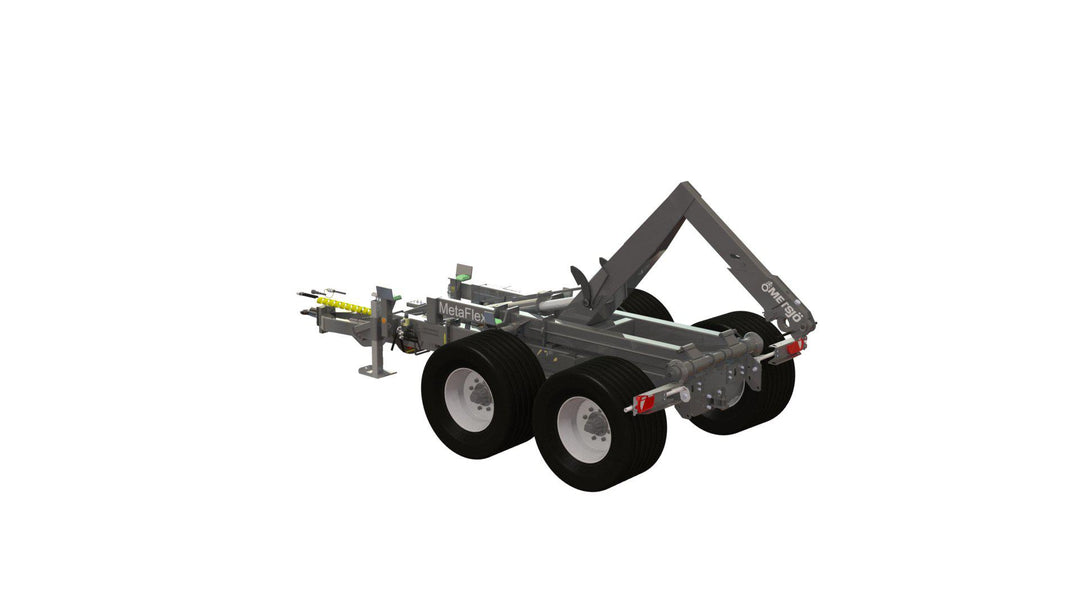

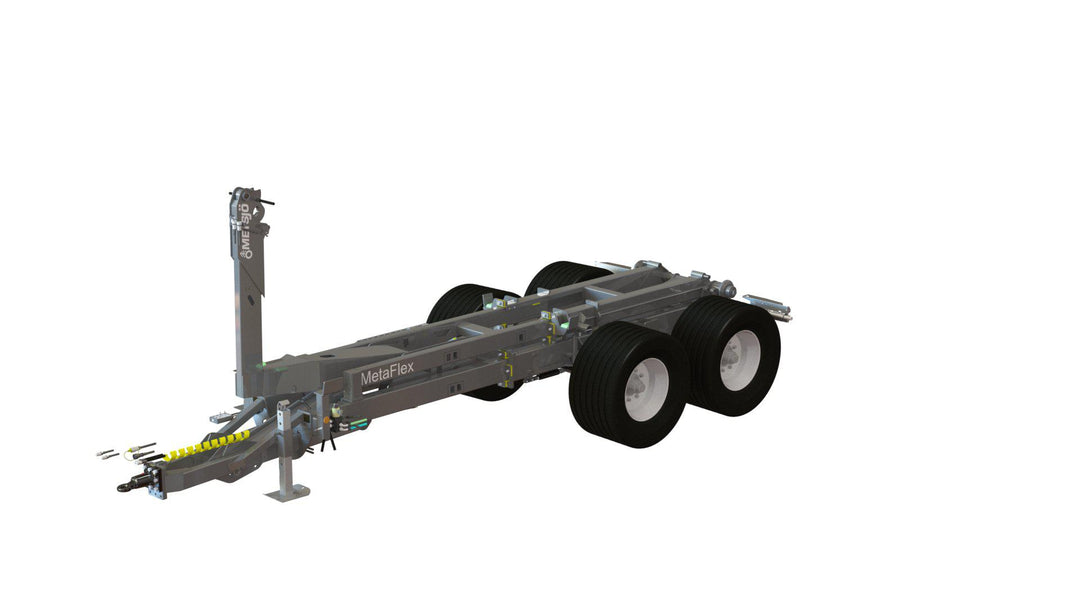

MetaFlex16 chassis 560/45x22,5

Art: 105454

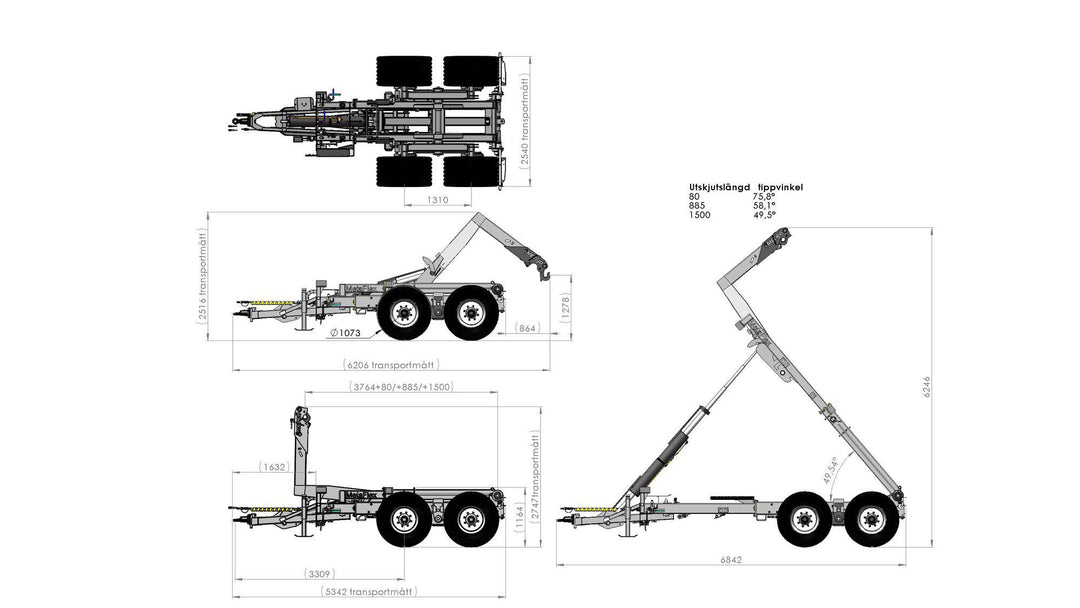

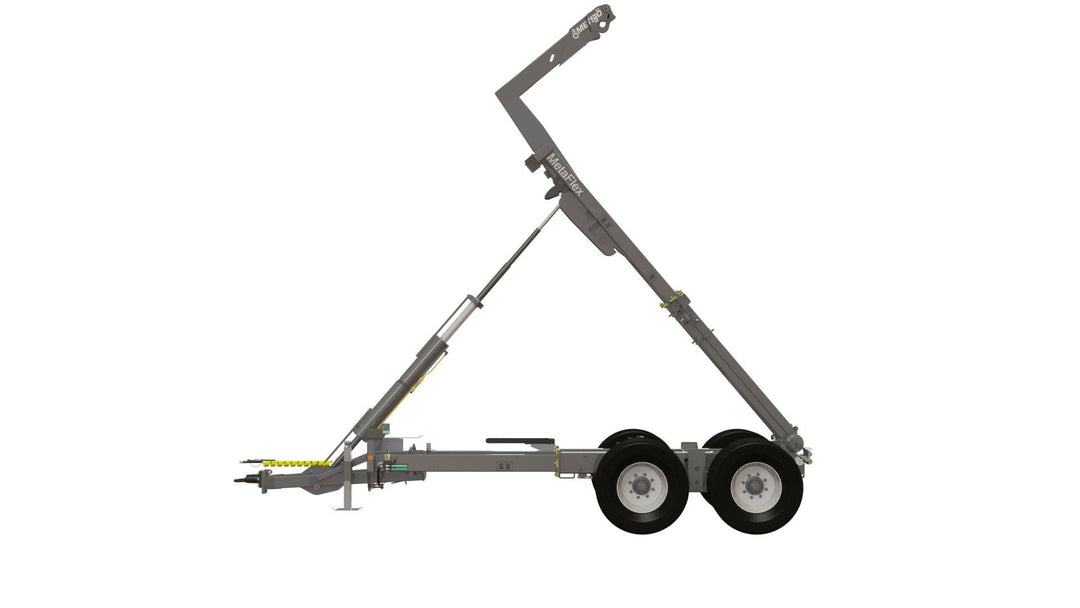

Item number 105454 Container standards DIN 30722 SIS3021 SS3659, Hook height 1450 mm - 1570 mm Container lengths 4500mm-5050mm-6000mm. The length of the chassis is hydraulically adjusted Pendulum bogie distance 1310 mm, Maximum load 9 tons per axle Flange width 1780 mm. Coated according to KTL-method, black Axle profile 120. Rim connection 220x275x8, open nuts Hydraulic brakes: on all drums, According VVFS 2003:20 Automatically adjusted brake arms AGS. Maximum hydraulic pressure 110 bar Cover sheets stop dirt entering the brake drums Hydraulic outlets needed on tractor: 2 DA + brakes, el. system 12 Volt El. panel from driver seat, diode indication when the frame is locked , electric park brake/unlock frame Tipping power 14 tons, Tipping angle 75º-62º-50º Shifting power 14 tons Oil volume need from tractor: 12 L/ 210 Bar Lights according TSV LED 12-24V 7 pol. Prepared console for mounting an axle lifting system Prepared console for mounting different drawbars Colour Metsjö grey Chassis weight 3 400 kg, Technical load 21 000 kg, Payload 17 600 kg Surface treatment: chemical degreasing, blasting SA 2,5 The body is puttied. The colour of the chassis is grey Painting according ISO 12944 A3.09. Colour system: Epoxy primer 2 x 70 µm. Top coat: Polyurethane 1 x 60 µm overall layer 200µm. Corrosion category C4 L Equipped with: Hydraulic socket DA on the hook-lift arm, 108066 Rear coupler bolt-on clevis + rear electrical socket 7 pol., 105366

Tillval för MetaFlex16 chassis 560/45x22,5

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Maximized capacity

Low cost per transported ton

We build our trailers as compact as possible with efficient use of width and height. This gives you a smooth trailer and efficient logistics.

Well-thought-out construction and the best materials

Low own-weight

We construct your body with the best materials in some of Europe's largest industrial machines. For example, almost all containers are built in Brinell 450 (Hardox). This gives us low net weight but high load capacity, which is proven in independent studies that find that our system has approx. 25% less fuel consumption and approx. 50% lower soil compaction compared to conventional systems.

Axles

Stability

Our axle suspension has a wide base and a stable, compliant ride. At Metsjö, we are also masters at building our wagons low.

Large wheels within legal width

Accessibility

Our focus on agriculture has meant that over the years we have developed a construction that enables really large wheels within the legal width

Experience Metsjö

Metsjö is an innovation-leading manufacturer of trailers, hook lifters, mobile storage solutions and machine halls. By controlling the entire chain from steel to finished product – and by using some of Europe's largest industrial machines – we can offer a wide range of industrial and agricultural products. Products that are appreciated by many for their high capacity, market-leading stability and low fuel consumption.
