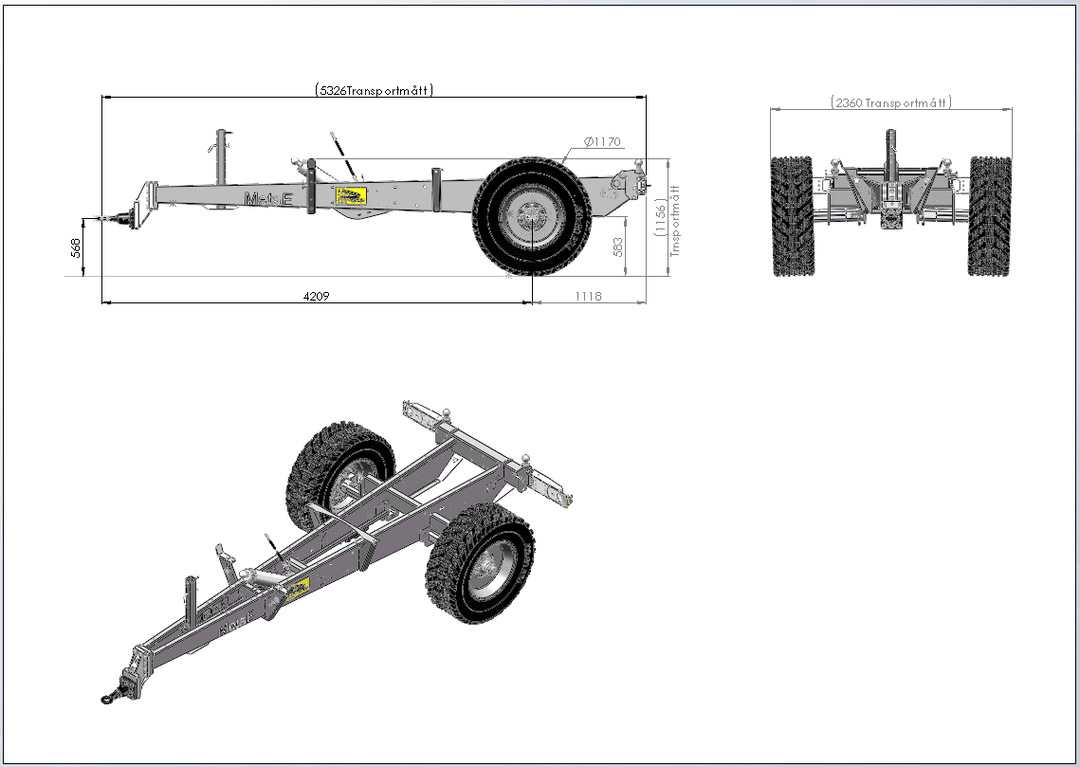

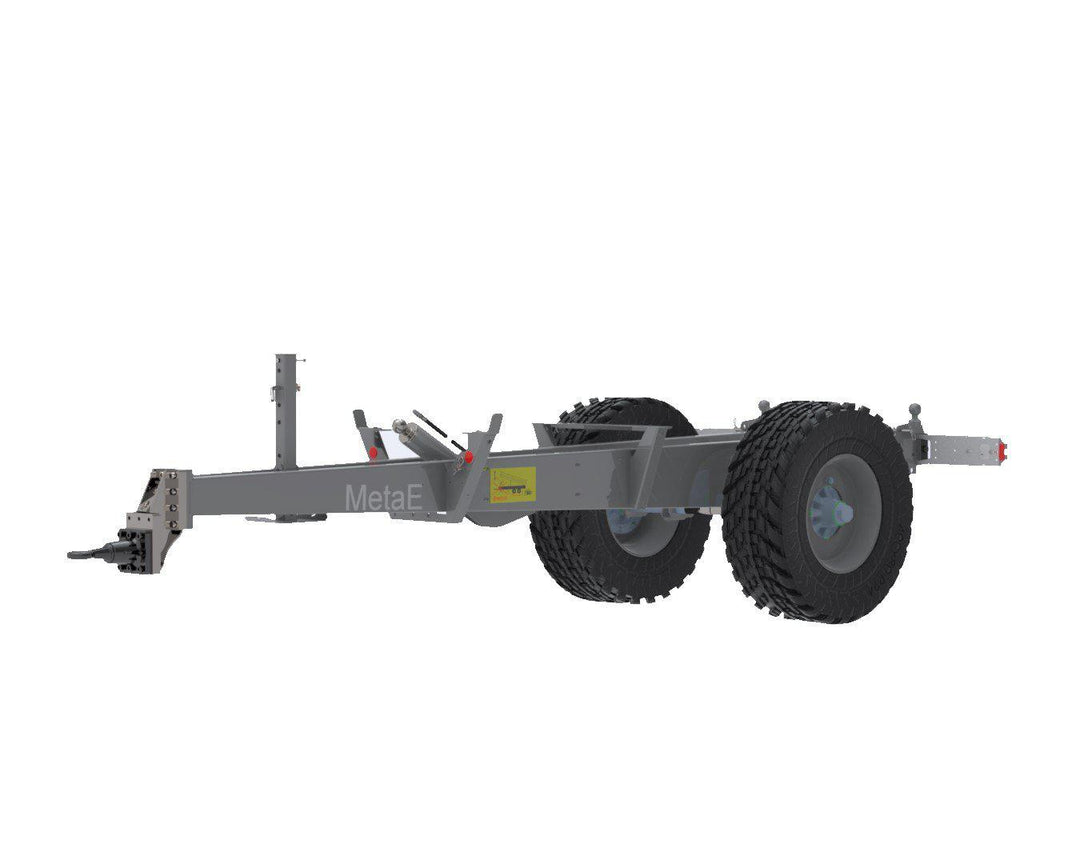

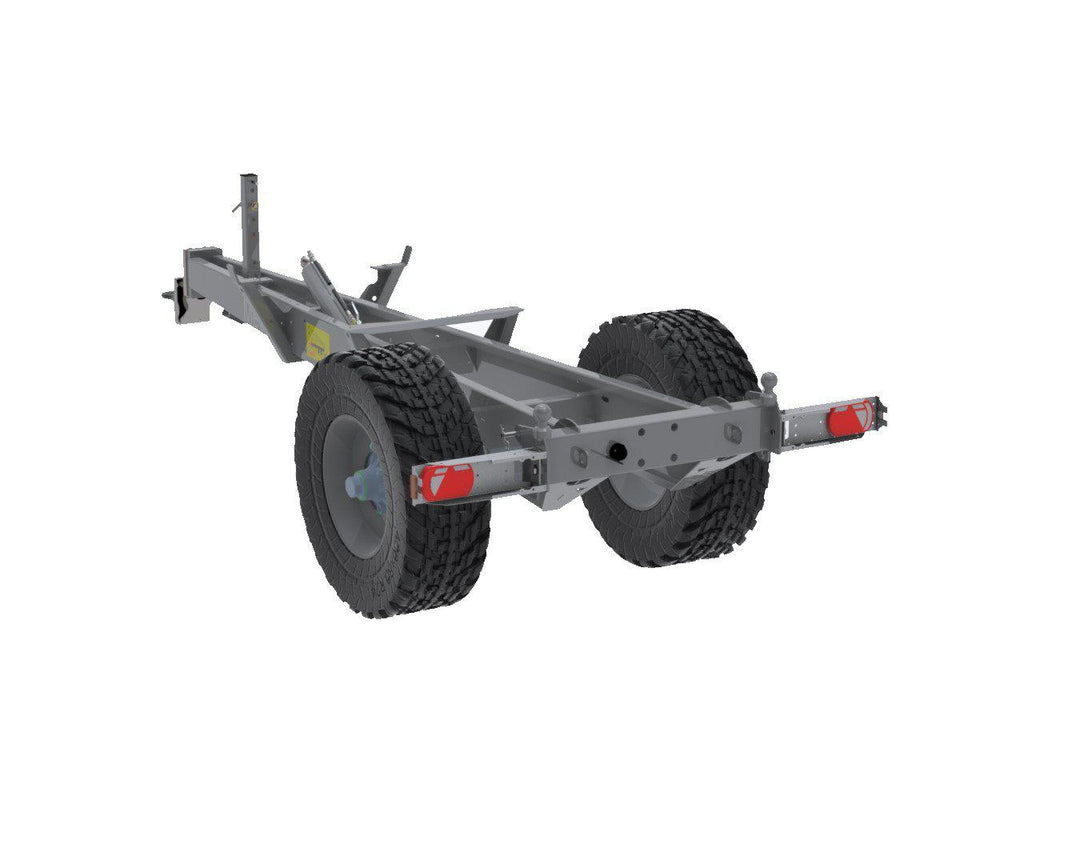

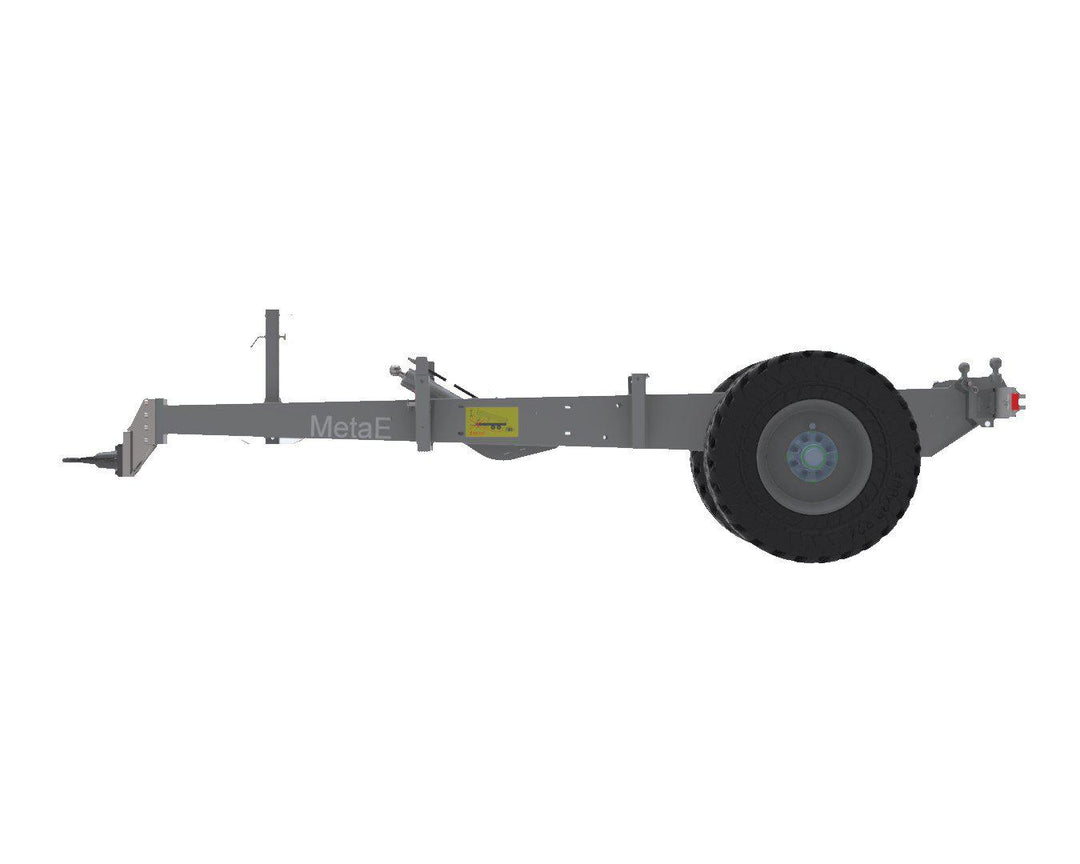

MetaE10 1 axle 480/80x24 without brakes

Art: 167636

Item number chassis: 167636 One axle, Maximum load 10 tons per axle Flange width 1500-2000 mm. Manual adjusted Rim connection 280x335x10 open nuts Without brakes Back tipping, tipping angle 50º, Oil volume 12L /210 bars Lights according TSV LED 12-24V 7 pol. Prepared console for mounting different drawbars, optinal equipment Requiers 1 SA outlet Colour Metsjö grey Prepared for MetaMid/MetaNo bodies Chassis weight 760 kg, Technical load 13 000 kg, Payload 12 230 kg Surface treatment: chemical degreasing, blasting SA 2,5 The body is puttied. Painting according ISO 12944 A3.09. Colour system: Epoxy primer 2 x 70 µm. Top coat: Polyurethane 1 x 60 µm overall layer 200µm. Corrosion category C4 L
