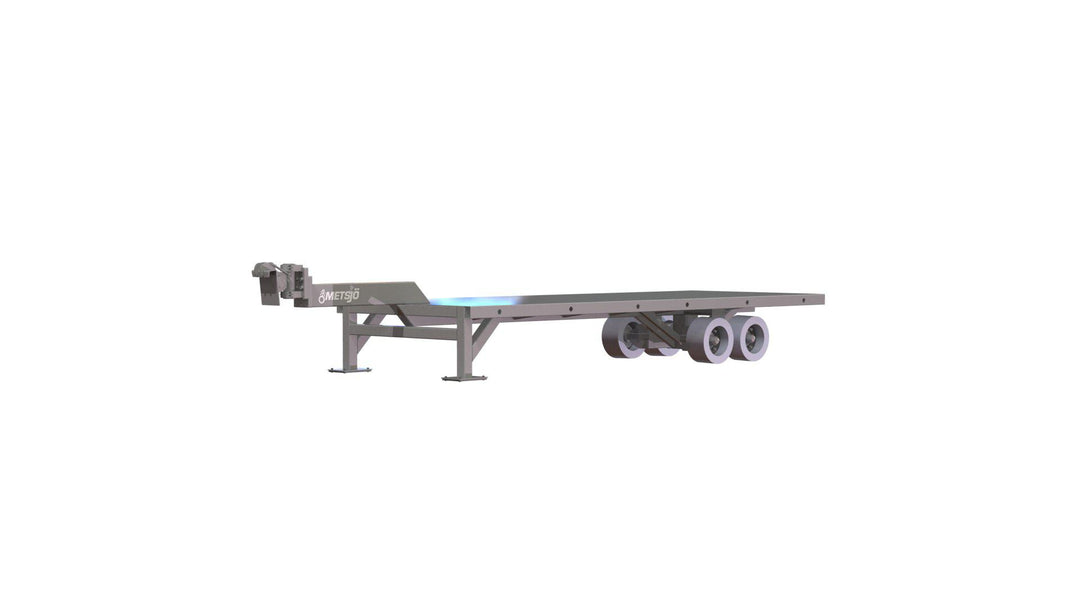

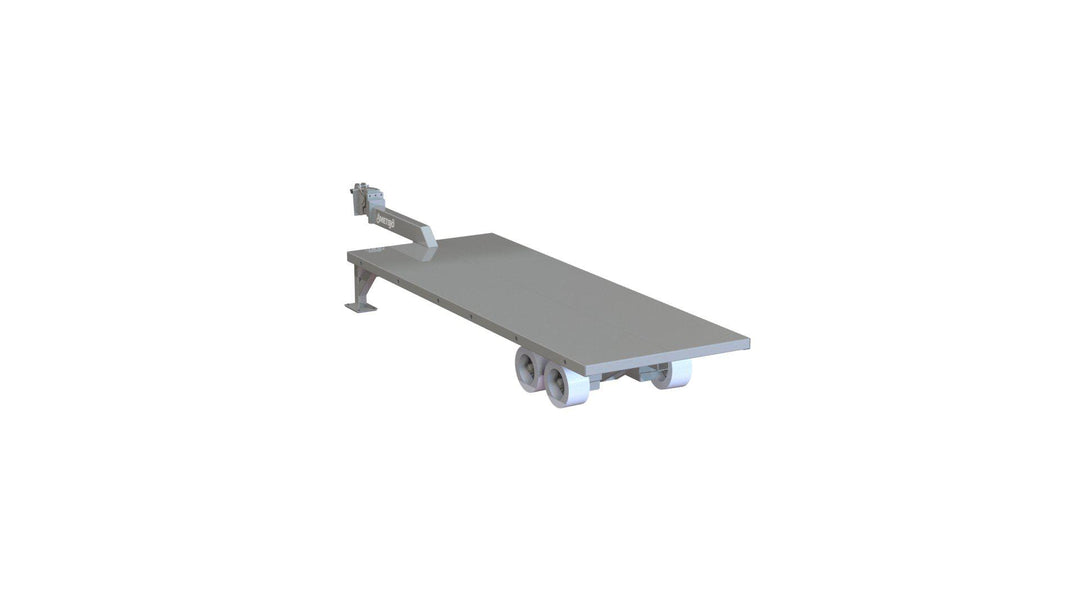

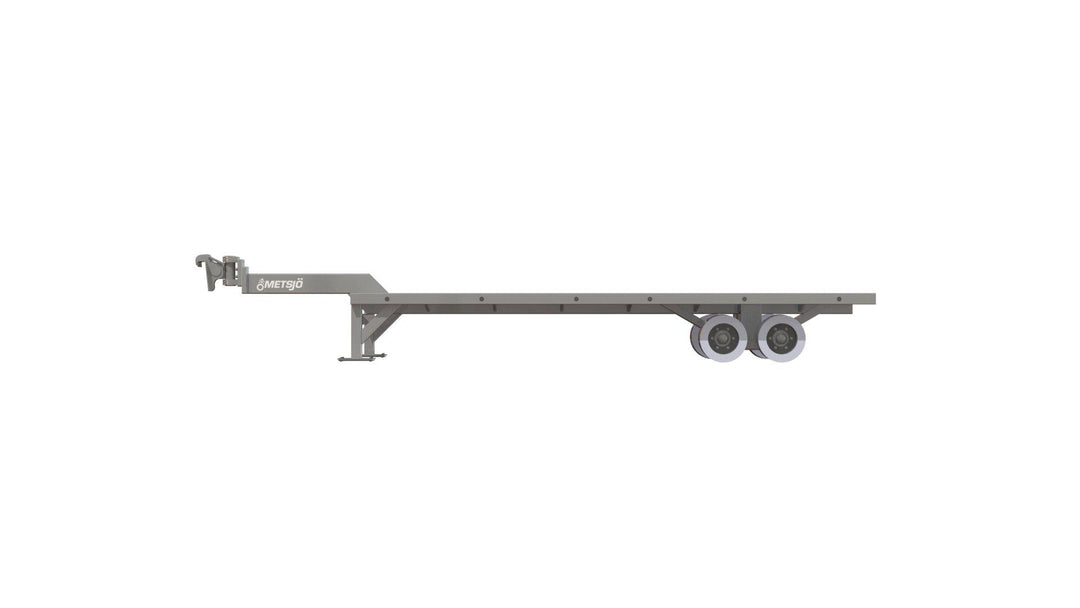

Material vagn massiva hjul Längd 5000x Bred1800

Art: 156260

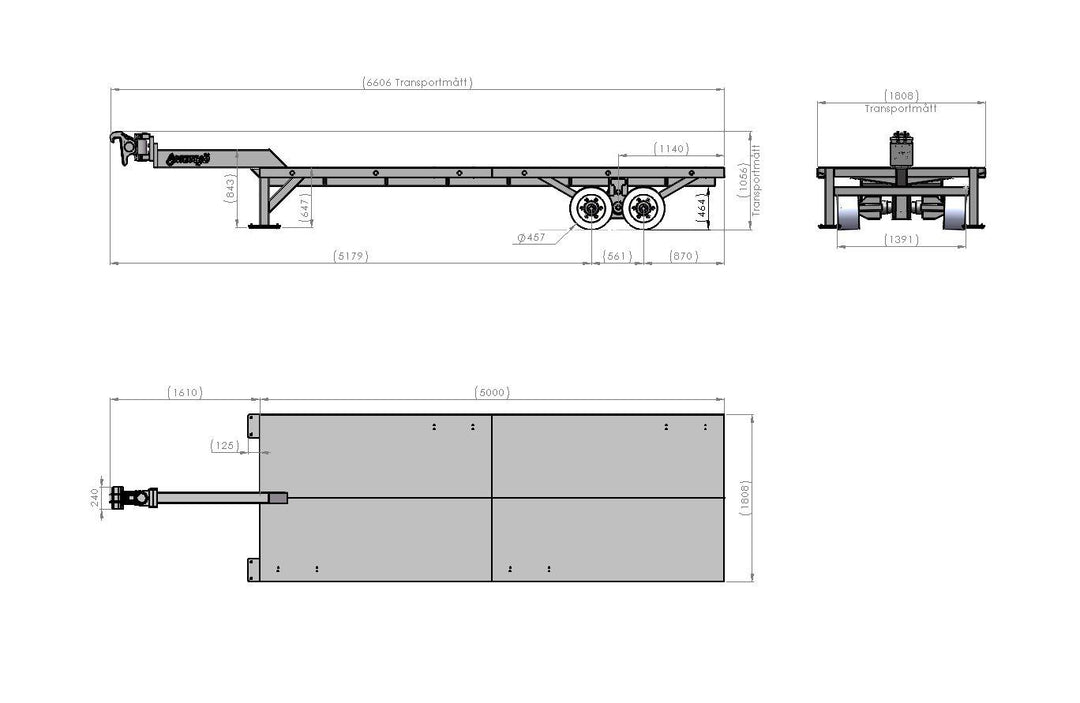

Matrialvagn art 156260 Längd 5005 Bredd 1800 Flak höjd 650 Pendelbogg o-bromsade axelar profil 70x70 tapp lastar i bogie i 25 km/h 2750 kgx4 ger 11 ton Hjul Massiva banor på stålfälg med 6-bults hålning.161-205-6 Diameter: 457 mm Bredd: 229 mm Belastning 2475 Kg/st vid 16 km/h Flakplan av tårplåt hacksäkrad. CC 555 uttag för spänband. Färg Metsjö grå Chassivikt 1750 kg Ytbehandling: Förbehandling med alkalisk avfettning och blästring Sa 2,5 Karosseri kittas. Lackerat enl. ISO 12944 A3.09. Färgsystem: Epoxiprimer 2 x 70 µm. Täckfärg: Polyuretan 1 x 60 µm totalskikt ca. 200µm. Korrosivitetklass C4 L

Tillval för Material vagn massiva hjul Längd 5000x Bred1800

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Maximized capacity

Low cost per transported ton

We build our trailers as compact as possible with efficient use of width and height. This gives you a smooth trailer and efficient logistics.

Well-thought-out construction and the best materials

Low own-weight

We construct your body with the best materials in some of Europe's largest industrial machines. For example, almost all containers are built in Brinell 450 (Hardox). This gives us low net weight but high load capacity, which is proven in independent studies that find that our system has approx. 25% less fuel consumption and approx. 50% lower soil compaction compared to conventional systems.

Axles

Stability

Our axle suspension has a wide base and a stable, compliant ride. At Metsjö, we are also masters at building our wagons low.

Large wheels within legal width

Accessibility

Our focus on agriculture has meant that over the years we have developed a construction that enables really large wheels within the legal width

Experience Metsjö

Metsjö is an innovation-leading manufacturer of trailers, hook lifters, mobile storage solutions and machine halls. By controlling the entire chain from steel to finished product – and by using some of Europe's largest industrial machines – we can offer a wide range of industrial and agricultural products. Products that are appreciated by many for their high capacity, market-leading stability and low fuel consumption.
