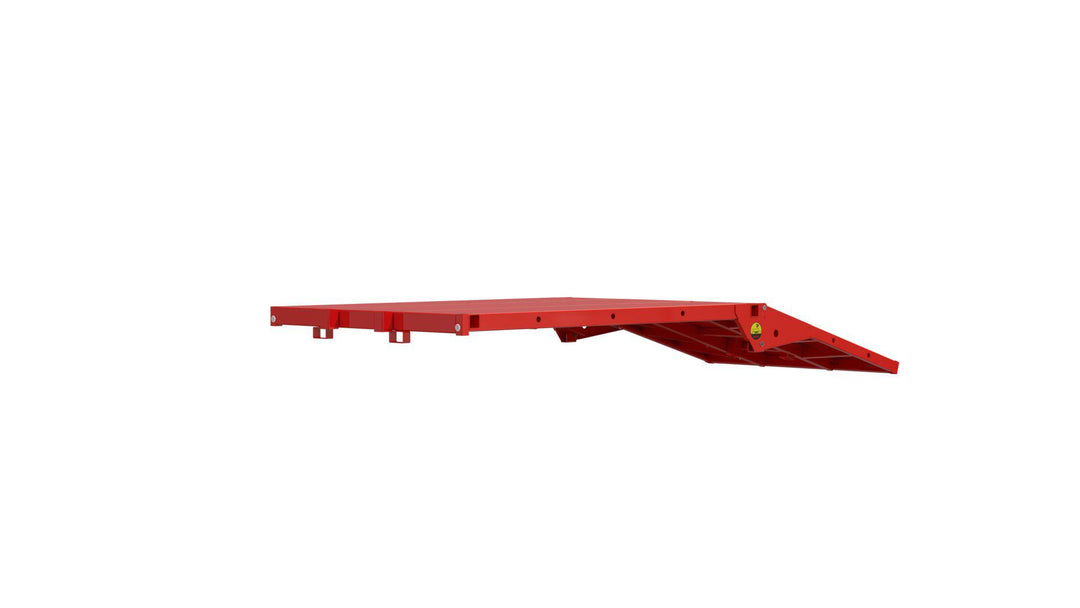

Machinery/bale platform Mid/No L6265 W2550

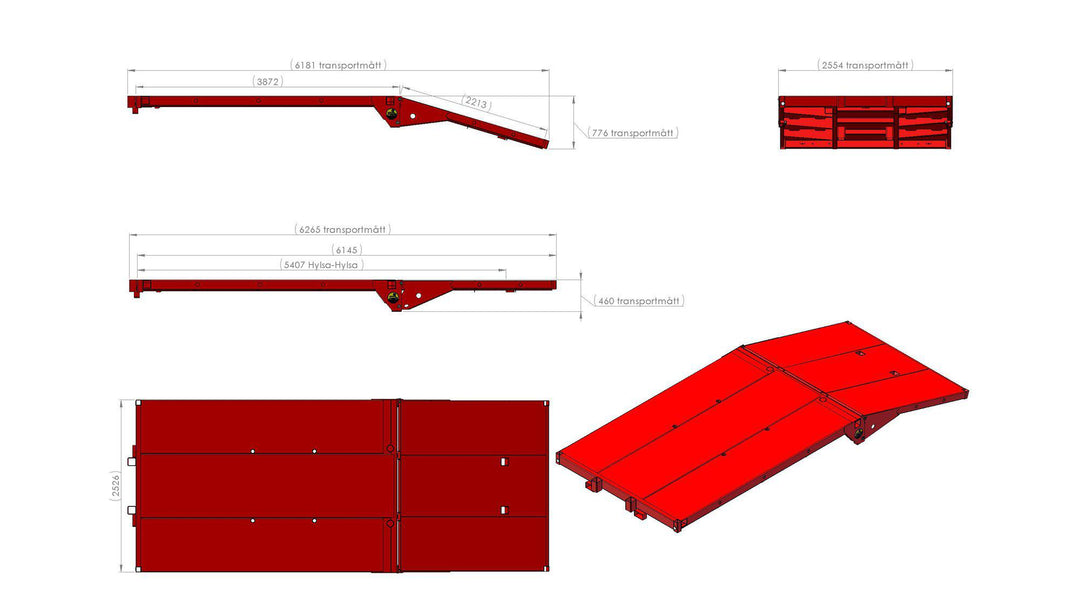

Heavy duty Steel 450 Brinell: Platform bed 2mm Flat part of the platform 3925mm, foldable ramp 2340mm, Total length 6265mm The rear LED lights 12/24V are inbuilt in the platform bed Hooks for load securing - outside lining of the platform, distance 900mm Load securing holes in flat part of the platform, distance 1015mm Consols for mounting different options for bale transport L5420mm Consols for mounting a plate for reducing the risk of slippering Consols for mounting supporting legs on the containers Colour red, painted according Metsjö standards Fits on MetaMid and MetaNo chassis Used to transport bales, machines and boxes For machines with rubber tires only Shifting between bale/machinery platform is done through the tipping function. Take away the pins on the side and tipp the platform till it reaches the ground. Proceed untill the platform is flat and then return the pins to their place. Control the total height as well as that you get the required payload on the tractor. Weight 910 kg
