Chemical storage Outdoor use Uninsulated (106677)

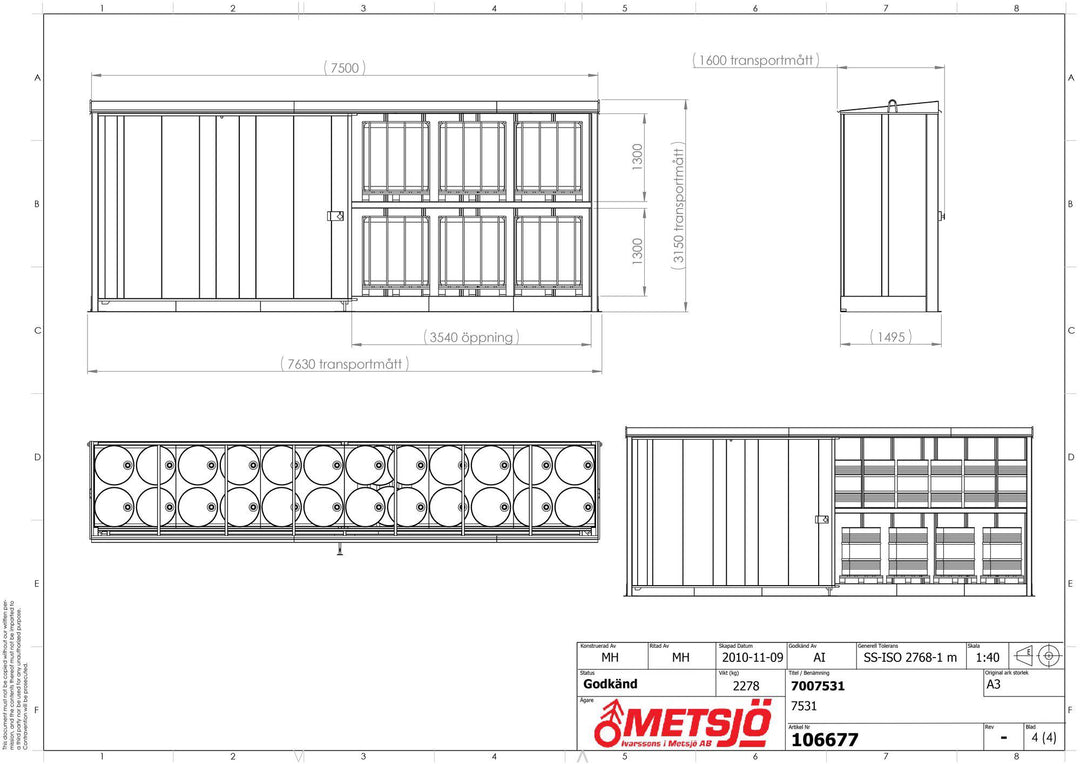

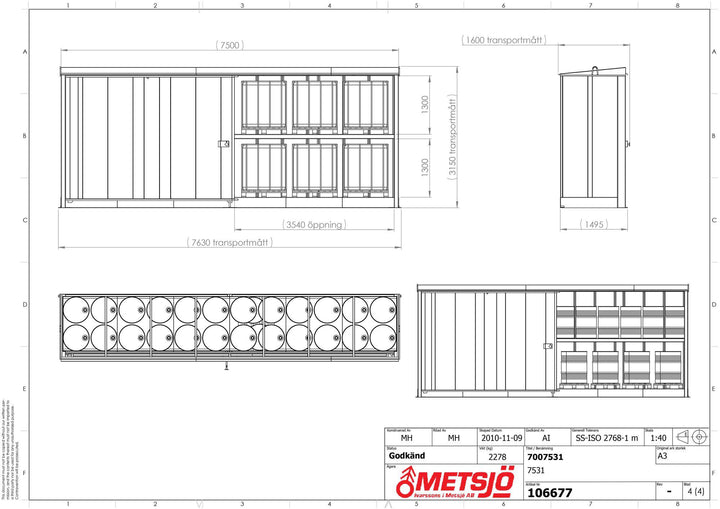

Chemical storage, with 2100 litre containment sump. Internal mesurements W.H.D 7300x2700x1250 mm. Transport mesurements W.H.D 7630x3150x1600 mm. For storage of 16 pcs EUR-pallets or 12 pcs IBC/Cipax. Storage weight 2280 kg. Containment sump volume requirements: Largest vessel + 10% of other vessels. Lower and upper floor of galvanized steel grating. Capacity per floor: 9000 kg. Lower floor located at 220 mm from ground level, upper floor located at 1620 mm. Height clearence between levels: 1300 mm. Sliding doors with robust locking cover, for alternately opening. Doors are locked by pad lock (shackle height 65mm). Ventilation through natural draft, 1% of floor area. Located above and below the doors. Surface treatment acc. to ISO 12944: Pretreatment with alkaline degreasing and blasting Sa 2.5 C4-Med. Epoxi base-coat, Polyurethane top-coat. Internally C3 acc. to Metsjö standard. Creates a surface that retains gloss and color and is easy to clean.
