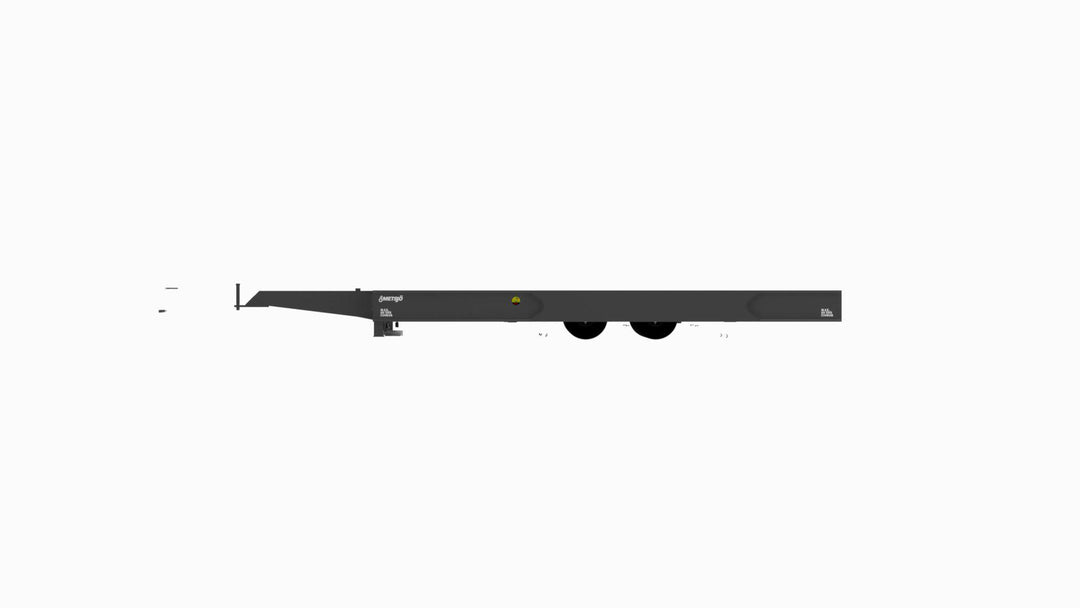

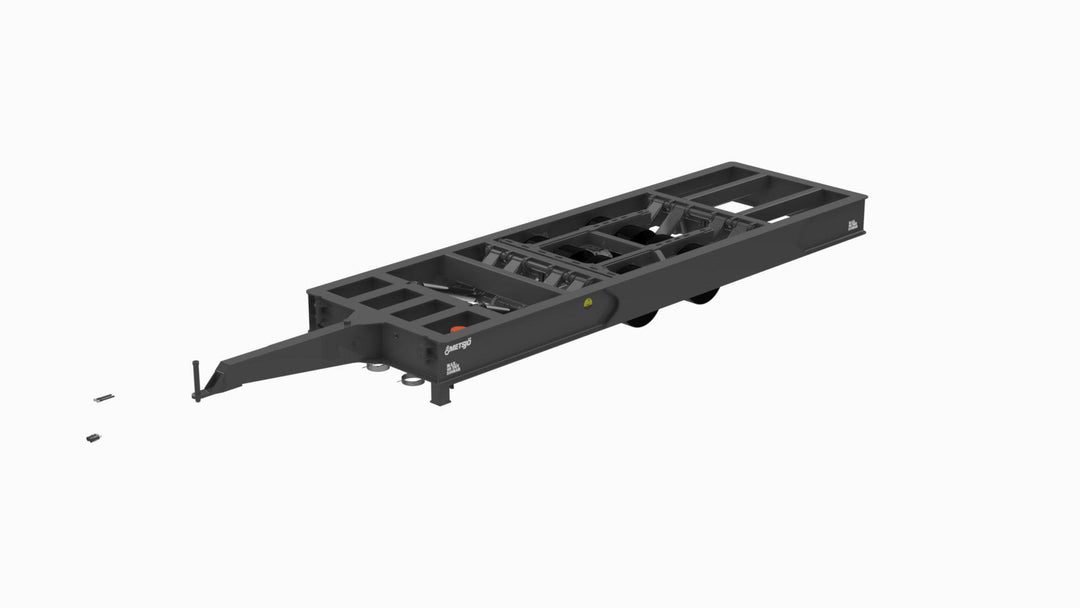

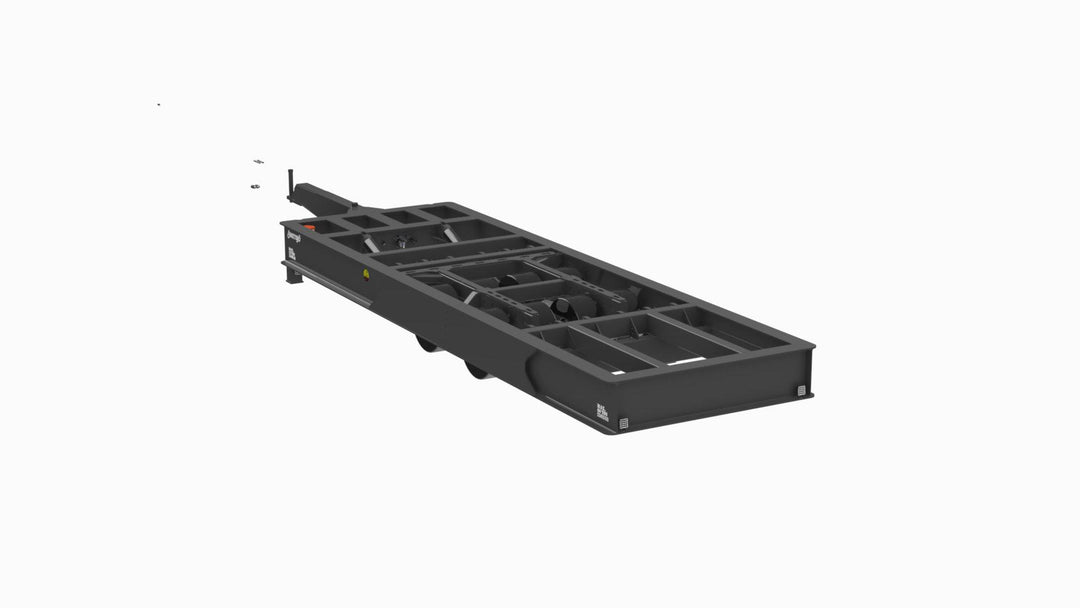

MQ75 chassis 560/60x22,5

Art: 163435

Item number chassis: 110188 Axles: one-piece axel body 120x120, Flange width 2 000 mm Load: 10,5 ton at 62 km/h, laser aligned Coated according KTL-method, black Axle distance 1 540mm, Axle system: Road Self steering axle with hydraulic locking when reversing (axle 3) Rim connection 280x335x10, domed nuts Communicating vessels: The chassis height is adjustable (from the chassis) 350mm Hydraulic brakes on all drums. Size 410x120. According VVFS 2003:20 Automatically adjusted brake arms AGS. Maximum hydraulic pressure 110 bar Cover sheets stop dirt entering the brake drums Back tipping, Tipping angle 52, Oil volume 45L/210 bars, Electrical system 12 Volt Lights according TSV LED 12-24V 7 pol. Connection points for an automatic tailgate Prepared console for mounting different drawbars Colour Metsjö grey Prepared for MetaQ75 bodies Chassis weight: 4 300 kg, Technical load: 34 500 kg, Payload 30 200 kg Surface treatment: chemical degreasing, blasting SA 2,5 The body is puttied. Painting according ISO 12944 A3.09. Colour system: Epoxy primer 2 x 70 µm. Top coat: Polyurethane 1 x 60 µm overall layer 200µm. Corrosion category C4 L Equipped with: Rear hydraulic outlet 1/2 flow, 106643 Rear hydraulic brake outlet, 106642 Rear coupler bolt-on clevis + rear electrical socket 7 pol., 105366

Tillval för MQ75 chassis 560/60x22,5

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Maximized capacity

Low cost per transported ton

We build our trailers as compact as possible with efficient use of width and height. This gives you a smooth trailer and efficient logistics.

Well-thought-out construction and the best materials

Low own-weight

We construct your body with the best materials in some of Europe's largest industrial machines. For example, almost all containers are built in Brinell 450 (Hardox). This gives us low net weight but high load capacity, which is proven in independent studies that find that our system has approx. 25% less fuel consumption and approx. 50% lower soil compaction compared to conventional systems.

Axles

Stability

Our axle suspension has a wide base and a stable, compliant ride. At Metsjö, we are also masters at building our wagons low.

Large wheels within legal width

Accessibility

Our focus on agriculture has meant that over the years we have developed a construction that enables really large wheels within the legal width
