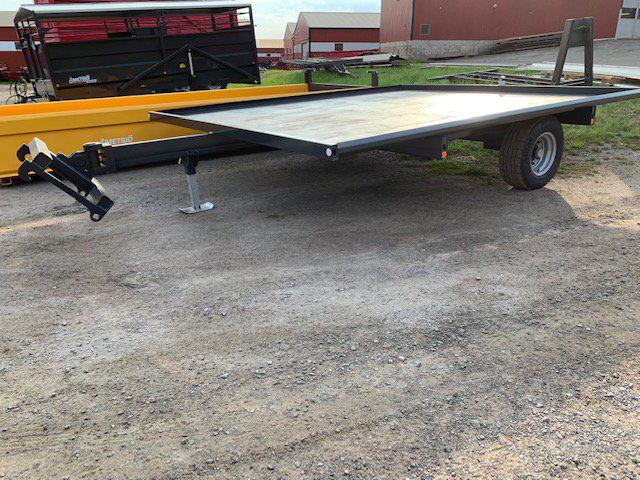

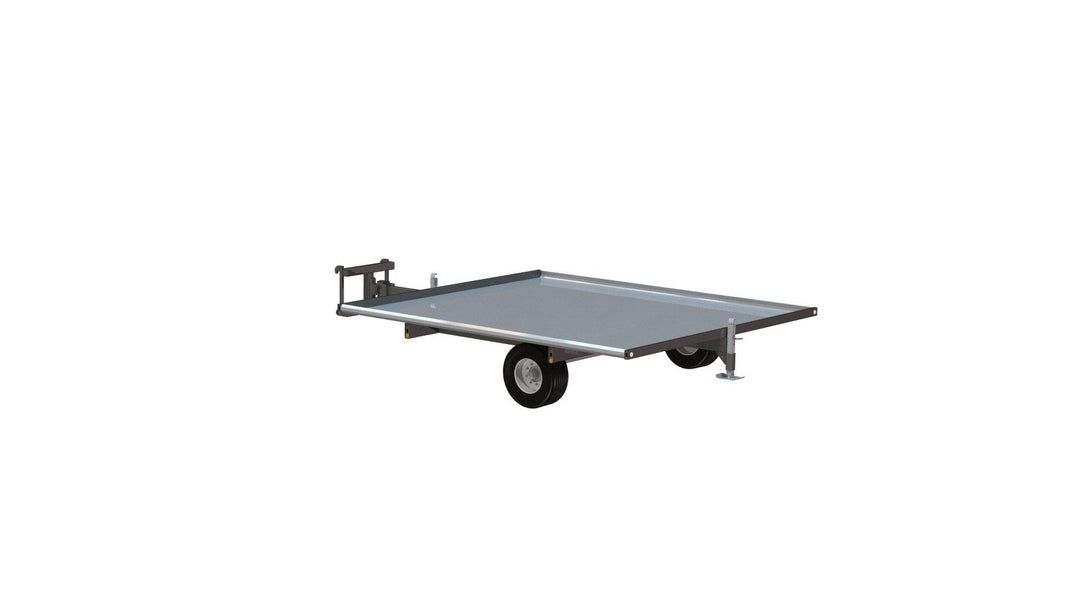

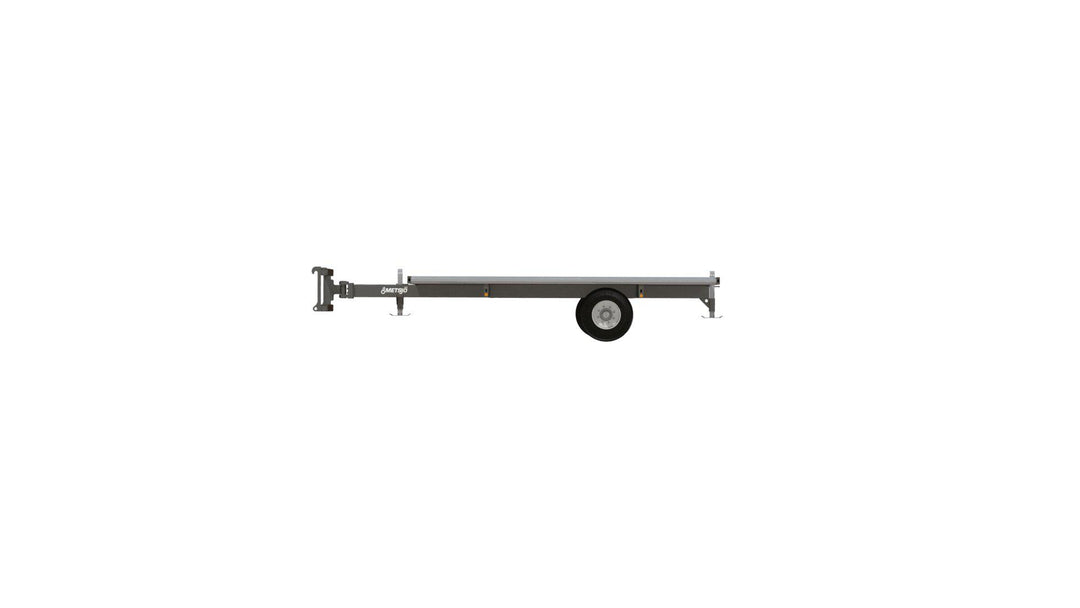

Gripvagn Elhydrauliskpollygrep 355/60x18R

Art: 159844

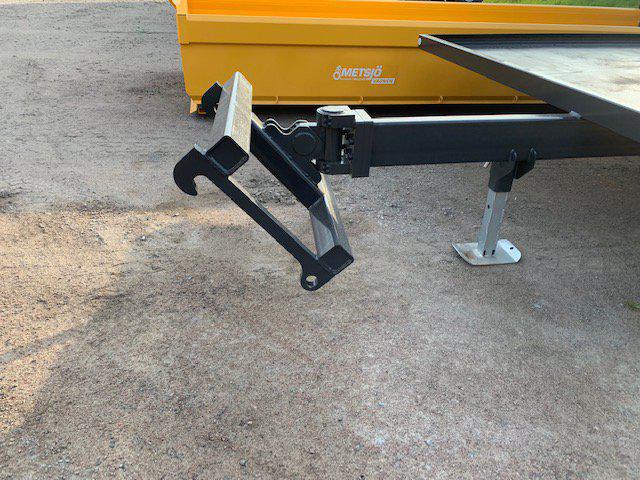

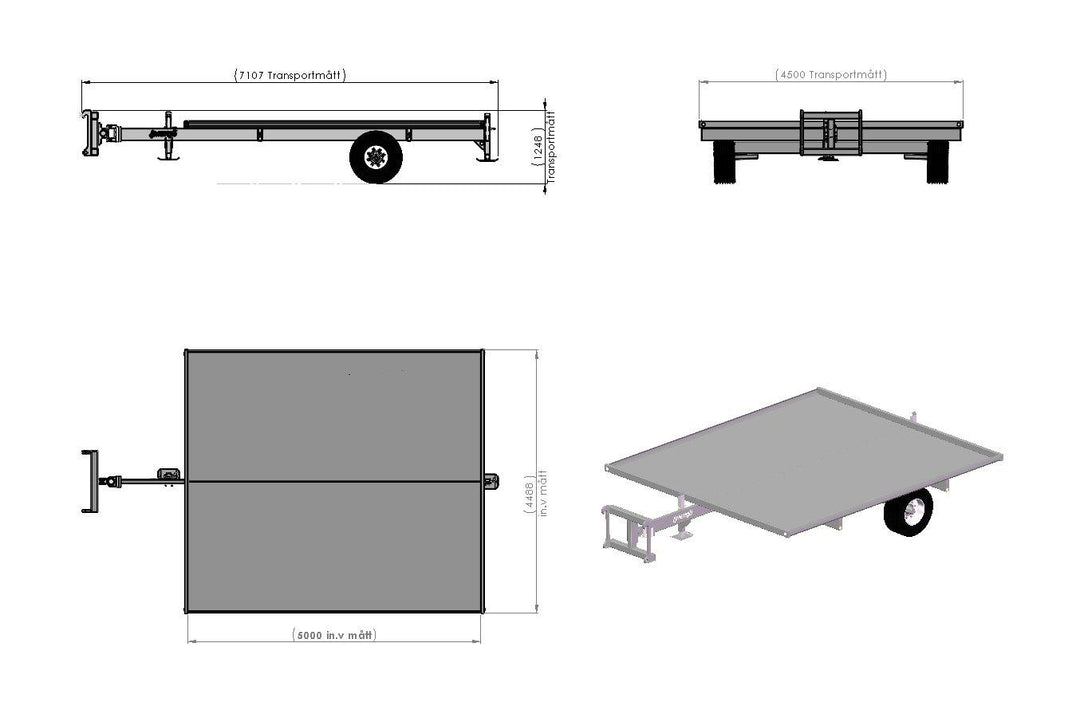

Artikelnummer komplett: 159844 Flaklängd 5000 Bredd 4500 Sid kant H 100 Flak Plåt Brinell 450: Tjocklek Botten 6 mm.(hardoxstål) Totallängd 6800 Last höjd 930 Axel O bromsad Max belastning 8 ton/axel Avstånd över navflänsar 3645 mm. Axel profil 90. Anslutning 220x275x8 mutter öppen Stödben Typ Mekan Teleskåpben Fram-bak Bromsklossar. Fäste för valbart framdrag drag Standard draget LM Stora Volvo BM cc 1000 Girohängt. Färg Metsjö Chassi GRÅ Chassivikt 2500 kg, Teknisk belastning 11 000 kg, Nyttolast 6000 kg Ytbehandling: Förbehandling med alkalisk avfettning och blästring Sa 2,5 Karosseri kittas. Lackerat enl. ISO 12944 A3.09. Färgsystem: Epoxiprimer 2 x 70 µm. Täckfärg: Polyuretan 1 x 60 µm totalskikt ca. 200µm. Korrosivitetklass C4 L

Tillval för Gripvagn Elhydrauliskpollygrep 355/60x18R

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Maximized capacity

Low cost per transported ton

We build our trailers as compact as possible with efficient use of width and height. This gives you a smooth trailer and efficient logistics.

Well-thought-out construction and the best materials

Low own-weight

We construct your body with the best materials in some of Europe's largest industrial machines. For example, almost all containers are built in Brinell 450 (Hardox). This gives us low net weight but high load capacity, which is proven in independent studies that find that our system has approx. 25% less fuel consumption and approx. 50% lower soil compaction compared to conventional systems.

Axles

Stability

Our axle suspension has a wide base and a stable, compliant ride. At Metsjö, we are also masters at building our wagons low.

Large wheels within legal width

Accessibility

Our focus on agriculture has meant that over the years we have developed a construction that enables really large wheels within the legal width

Experience Metsjö

Metsjö is an innovation-leading manufacturer of trailers, hook lifters, mobile storage solutions and machine halls. By controlling the entire chain from steel to finished product – and by using some of Europe's largest industrial machines – we can offer a wide range of industrial and agricultural products. Products that are appreciated by many for their high capacity, market-leading stability and low fuel consumption.
