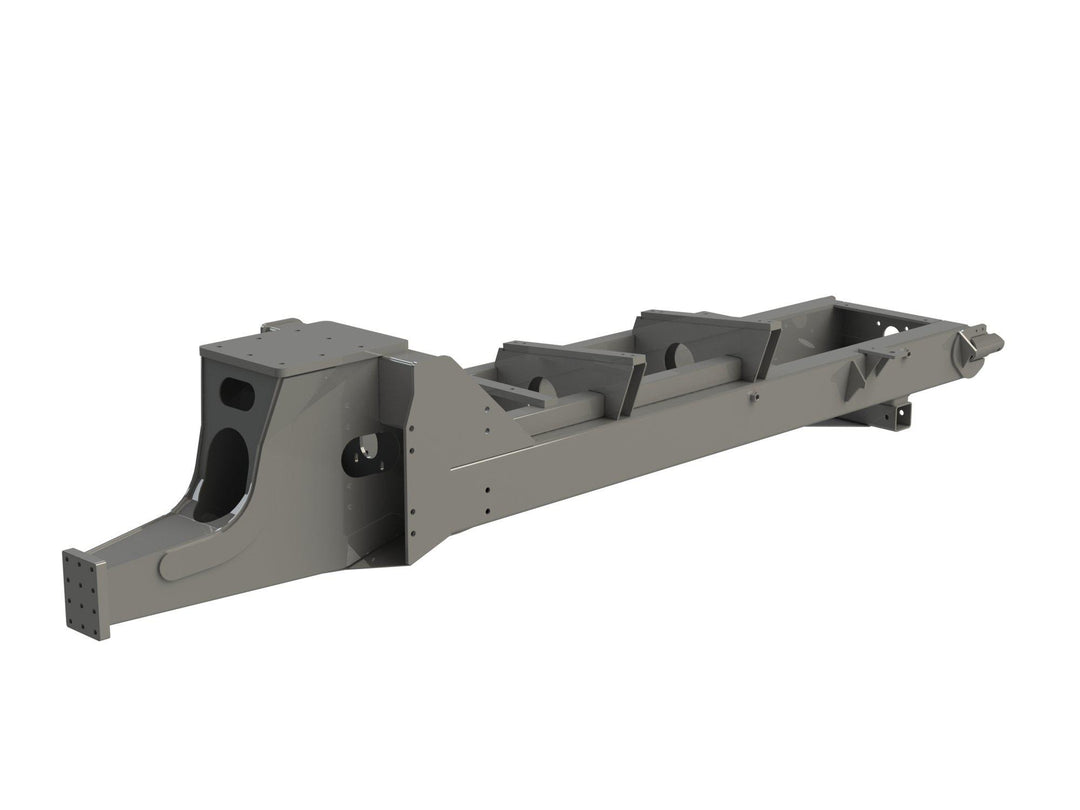

Drawbar adapter Bruks 605 Meta Flex24/Bruks dolly
Art: 112682
"Multi-modul 112682
Frame width 850mm, Length 4 600mm, Drawbar height 550 (bolted-on tow-eye)
Hydraulic relay (left-right side)
Prepared attachment for a Bruks 605 535-50x814/24-8
Crane stump TJ30 drilled 350x350/8-26
Attachment button. Hydraulic crane legs TJ 15 drillied 80-360-380-220
Lights according TSV, 7pol connector
Weight 1000 Kg
Prepared attachment. Possible options:
Rear drawbar 160x100
Pendulum axle for mounting a Bruks 605 Multi+ Mudguards with TSV lightning 505/50x17R , 112640
Parking tires 300x15,3"" one axle, 112704
Surface treatment: chemical degreasing, blasting SA 2,5
The body is puttied. The colour of the chassis is grey
Painting: C2 in BSK 99 two component, rust preventing pigmented
Glossy polyurethane with good weather and wear resistance
The surface is easy to maintain clean
Required eqipment:
112869 Tipping limitation
113487 Hose kit for Bruksl 605
113486 Bolt-om amider for supporting the rear rollers"
