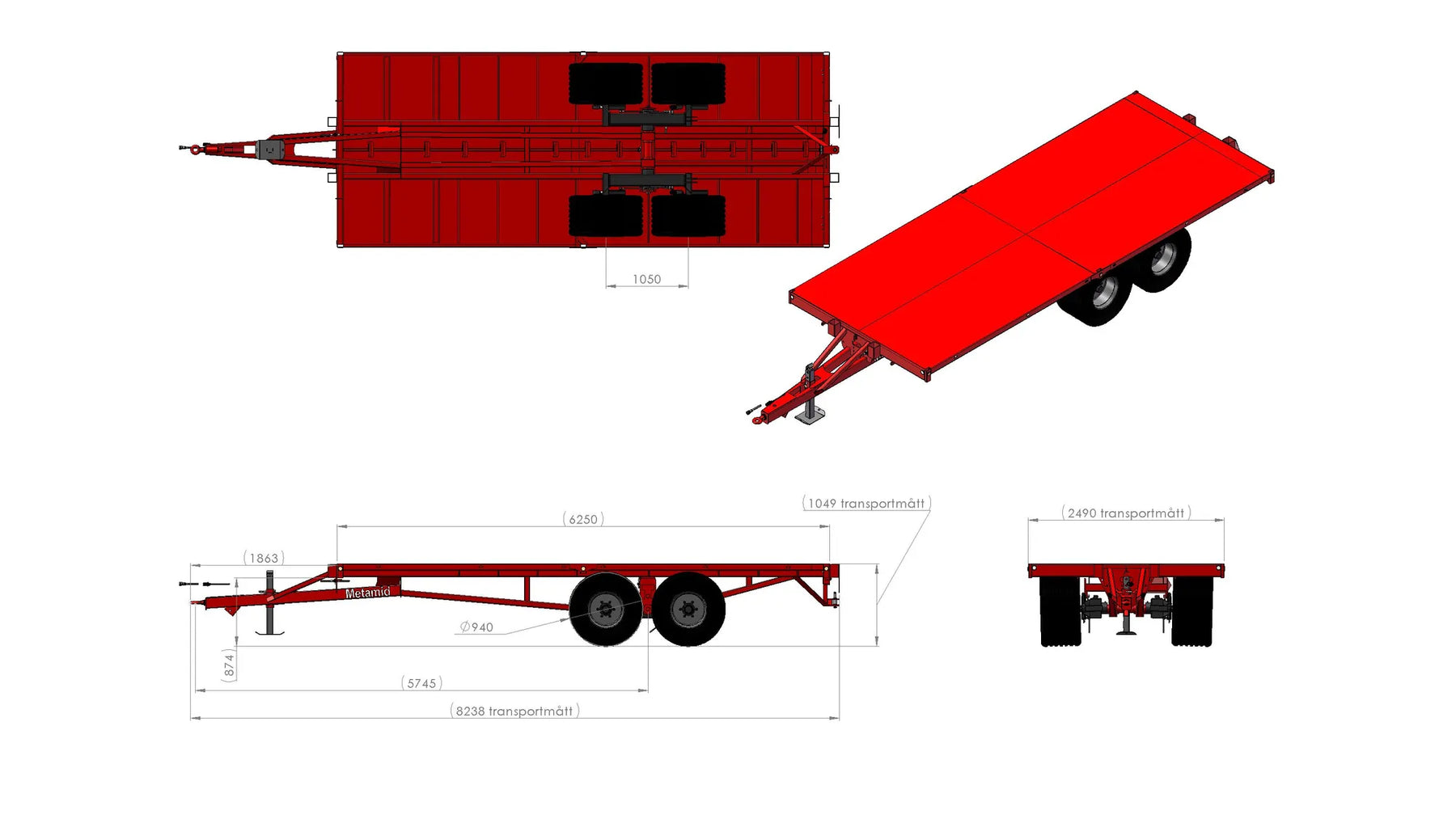

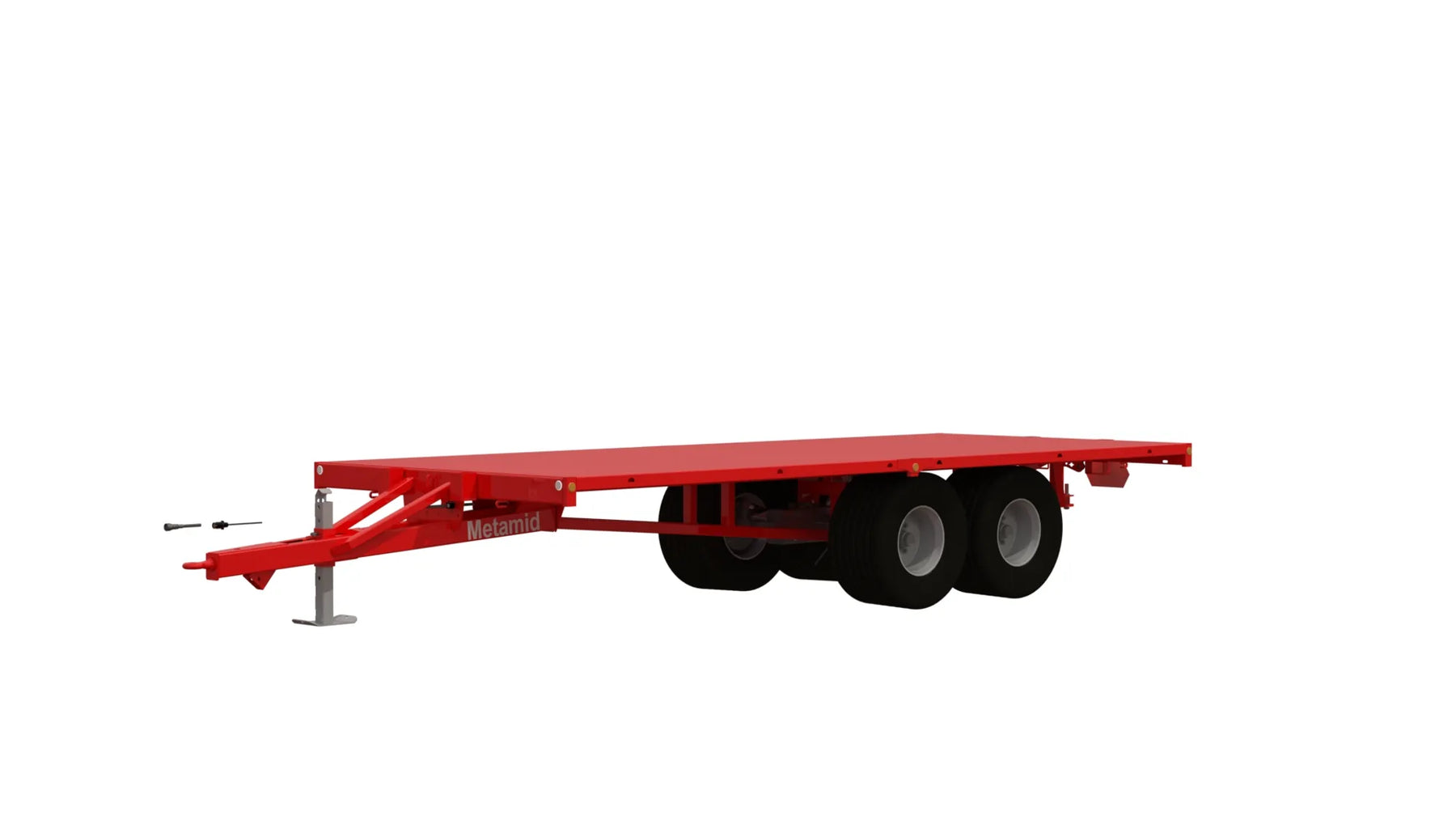

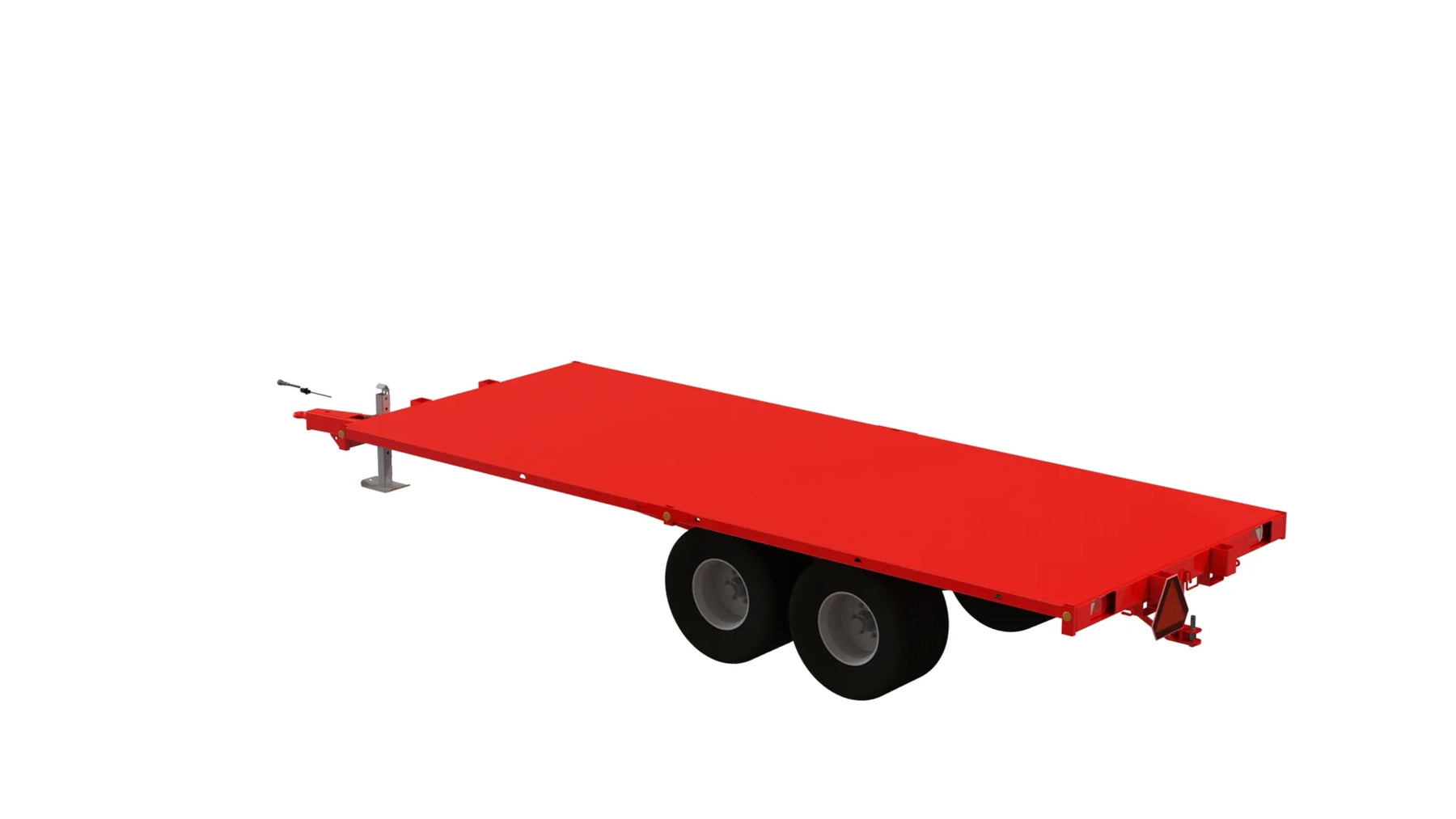

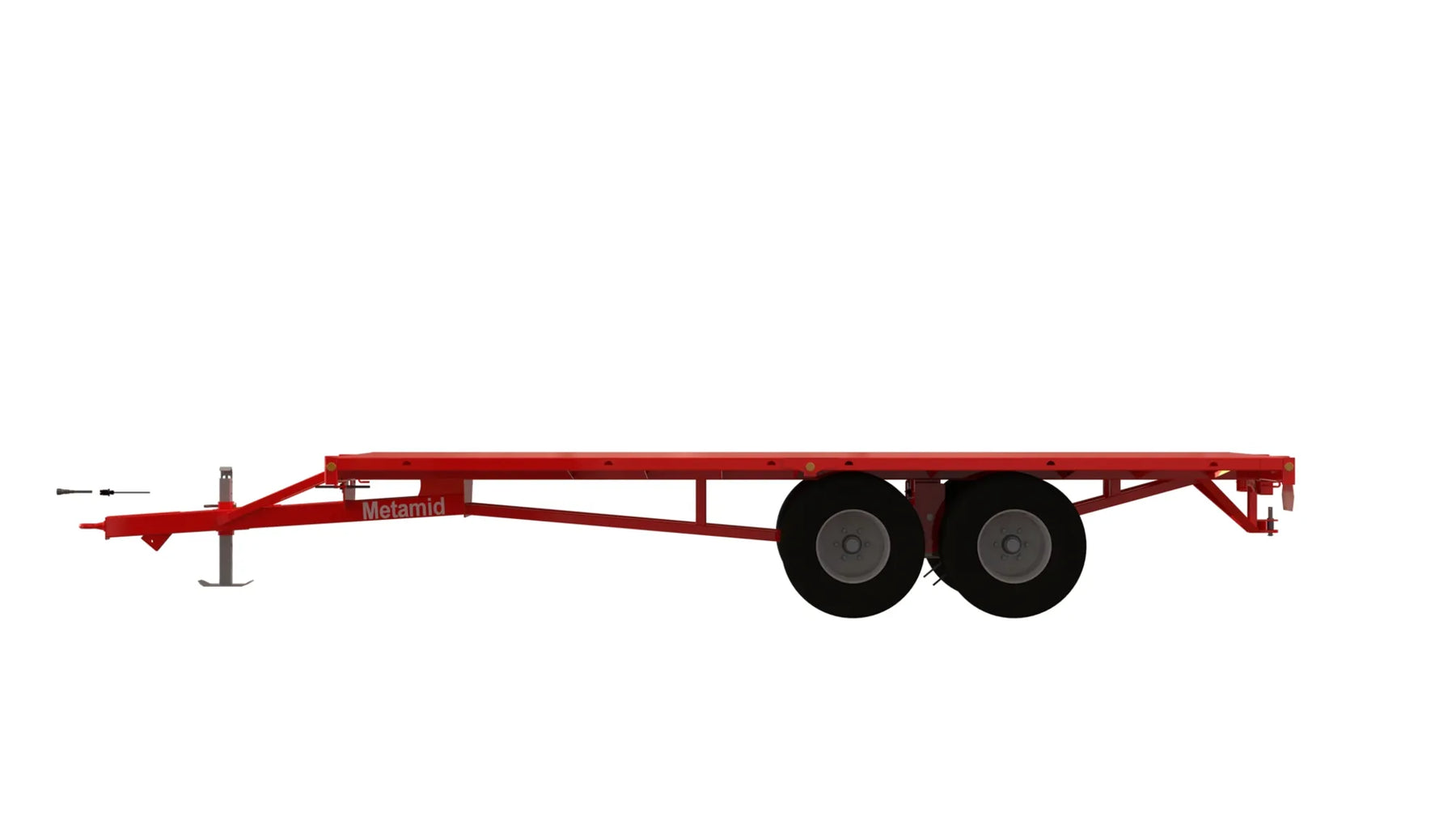

MetaMid transport L6250 W2550 500/50x17

Art: 105365

Item number complete: 105365 Steel 355 Brinell: Container bed 4 mm. Platform L 6250 mm Pendulum bogie distance 1050 mm, Maximum load 6 tons per axle Flange width 1850 mm. Coated according to KTL-method, black Rim connection 161x205x6 open nuts Hydraulic brakes: on all drums, According VVFS 2003:20 Manually adjusted brake arms. Maximum hydraulic pressure 110 bar Cover sheets stop dirt entering the brake drums Lights according TSV LED 12-24V 7 pol. Rear coupler bolt-on clevis + rear electrical socket 7 pol Consols for mounting different options for bale transport Prepared console for mounting different drawbars Colour Metsjö grey Chassis weight 2 370 kg, Technical load 15 000 kg, Payload 12 630 kg Surface treatment: chemical degreasing, blasting SA 2,5 The body is puttied. Painting according ISO 12944 A3.09. Colour system: Epoxy primer 2 x 70 µm. Top coat: Polyurethane 1 x 60 µm overall layer 200µm. Corrosion category C4 L

Tillval för MetaMid transport L6250 W2550 500/50x17

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Maximized capacity

Low cost per transported ton

We build our trailers as compact as possible with efficient use of width and height. This gives you a smooth trailer and efficient logistics.

Well-thought-out construction and the best materials

Low own-weight

We construct your body with the best materials in some of Europe's largest industrial machines. For example, almost all containers are built in Brinell 450 (Hardox). This gives us low net weight but high load capacity, which is proven in independent studies that find that our system has approx. 25% less fuel consumption and approx. 50% lower soil compaction compared to conventional systems.

Axles

Stability

Our axle suspension has a wide base and a stable, compliant ride. At Metsjö, we are also masters at building our wagons low.

Large wheels within legal width

Accessibility

Our focus on agriculture has meant that over the years we have developed a construction that enables really large wheels within the legal width

Experience Metsjö

Metsjö is an innovation-leading manufacturer of trailers, hook lifters, mobile storage solutions and machine halls. By controlling the entire chain from steel to finished product – and by using some of Europe's largest industrial machines – we can offer a wide range of industrial and agricultural products. Products that are appreciated by many for their high capacity, market-leading stability and low fuel consumption.
