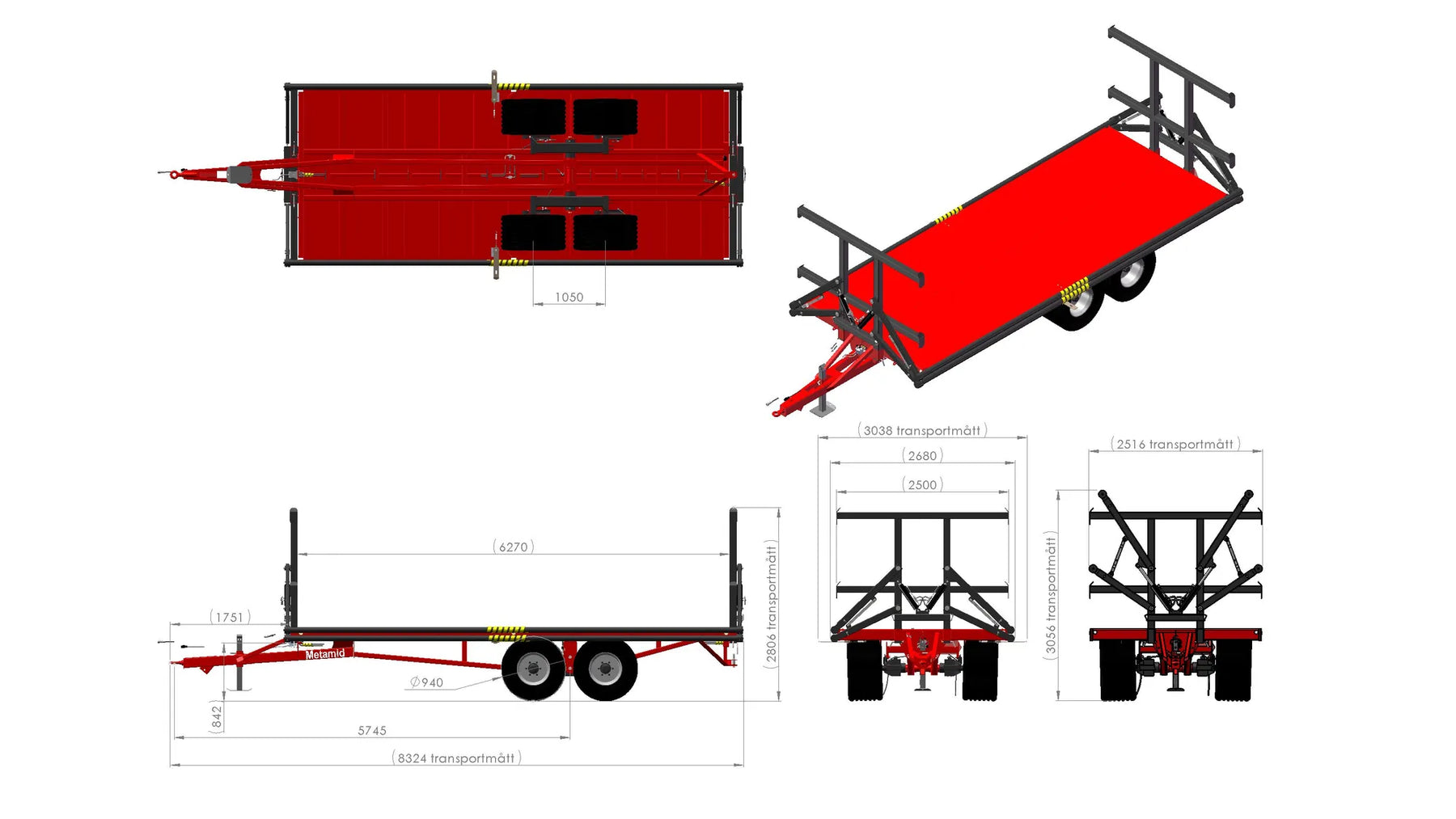

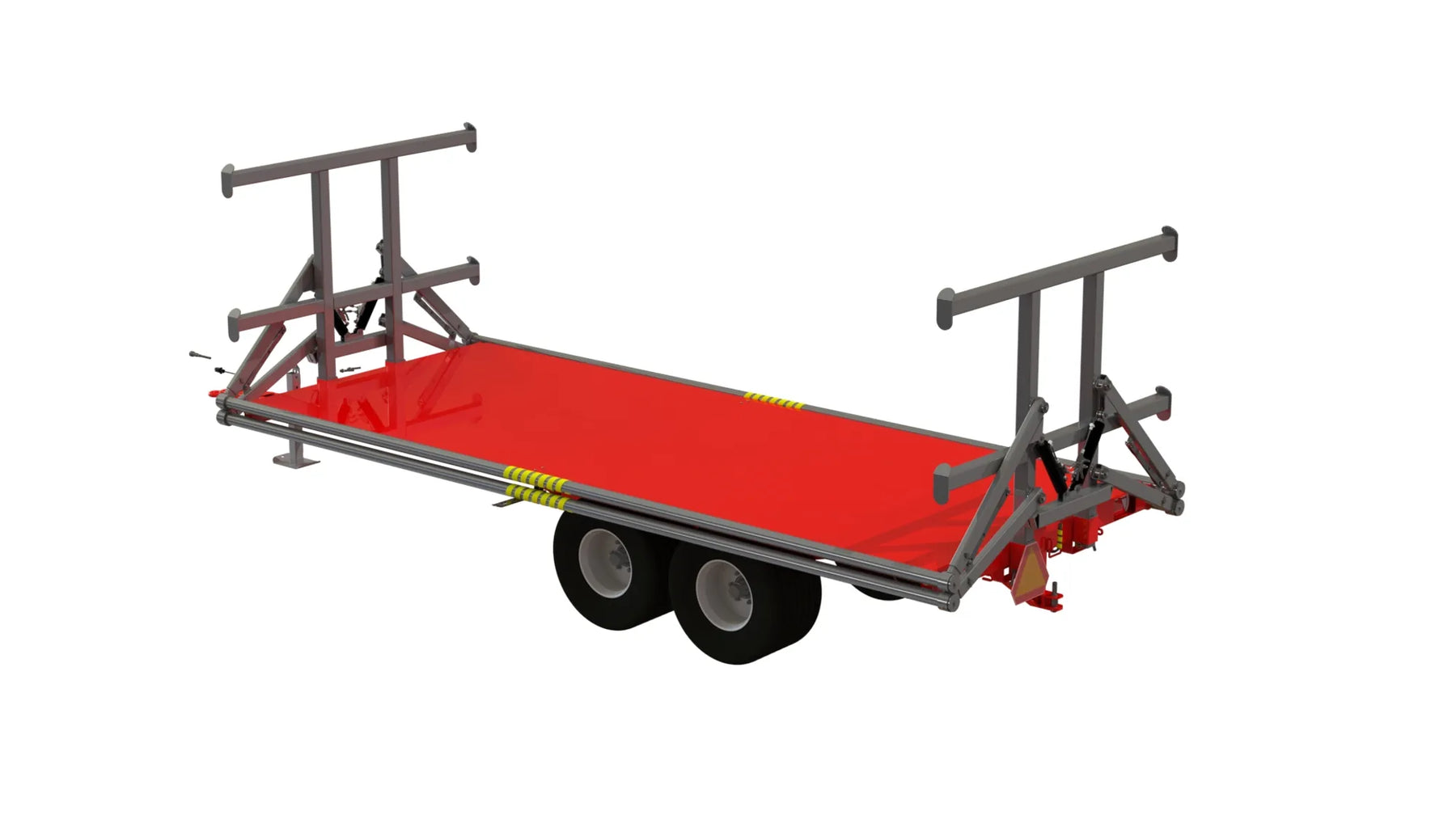

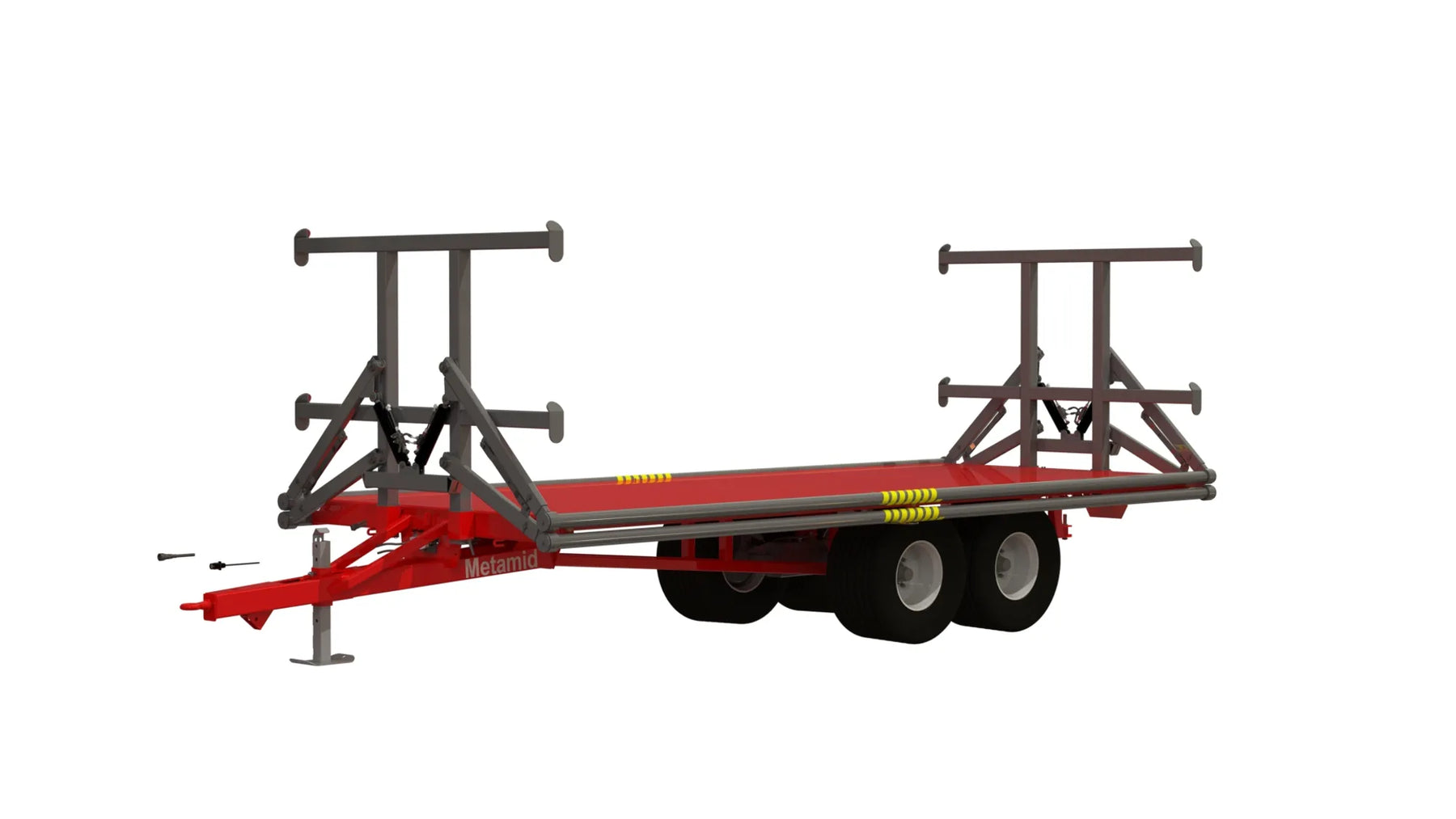

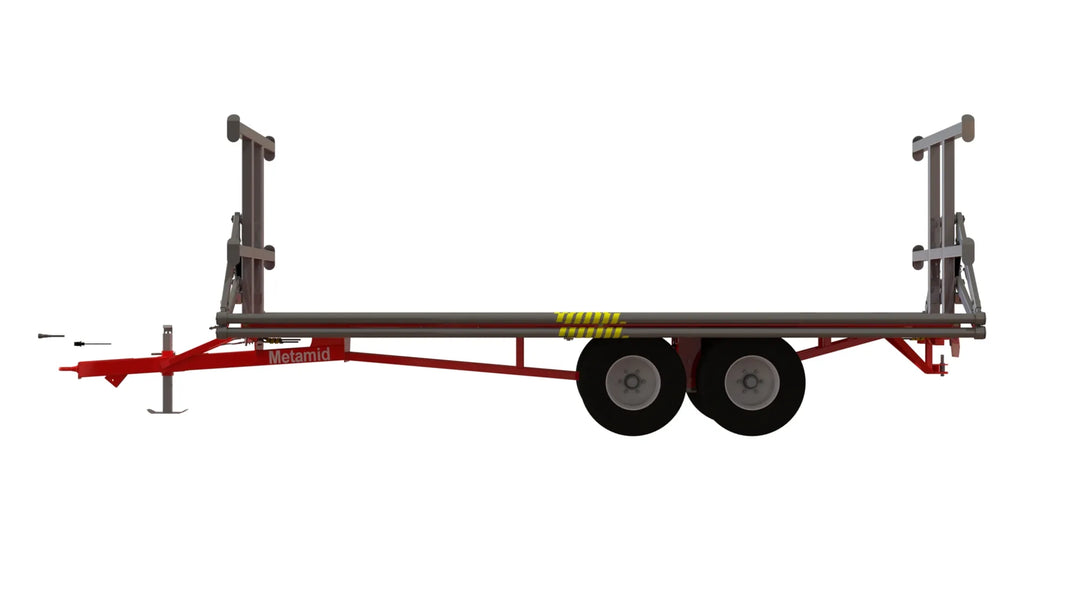

MetaMid mooring L6250 W2550 500/50x17

Item number complete: 110040 Steel 355 Brinell: Container bed 4 mm. Platform L 6250 mm Hydraulic mooring L6250 mm. Grip width 2550mm - 2800mm Possibility to control only one of the sides (manual valve on the drawbar) Grip power with 200 bars- 1300kg per pipe. Side pressure max 6,5 tons Requires one double-acting hydraulic outlet Pendulum bogie distance 1050 mm, Maximum load 6 tons per axle Flange width 1850 mm. Coated according to KTL-method, black Rim connection 161x205x6 open nuts Hydraulic brakes: on all drums, According VVFS 2003:20 Manually adjusted brake arms. Maximum hydraulic pressure 110 bar Cover sheets stop dirt entering the brake drums Lights according TSV LED 12-24V 7 pol. Rear coupler bolt-on clevis + rear electrical socket 7 pol Consols for mounting different options for bale transport Prepared console for mounting different drawbars Colour Metsjö red Chassis weight 3 160 kg, Technical load 15 000 kg, Payload 11 840 kg Surface treatment: chemical degreasing, blasting SA 2,5 The body is puttied. Painting according ISO 12944 A3.09. Colour system: Epoxy primer 2 x 70 µm. Top coat: Polyurethane 1 x 60 µm overall layer 200µm. Corrosion category C4 L
