Item number chassis: 110132
Pendulum bogie distance 1050 mm, Maximum load 6 tons per axle
Flange width 1850 mm. Coated according to KTL-method, black
Rim connection 161x205x6 open nuts
Hydraulic brakes: on all drums, According VVFS 2003:20
Manually adjusted brake arms. Maximum hydraulic pressure 110 bar
Cover sheets stop dirt entering the brake drums
Back tipping, tipping angle 55º, Oil volume 10L /210 bars
Lights according TSV LED 12-24V 7 pol.
Prepared console for mounting an axle lifting system
Prepared console for mounting different drawbars
Colour Metsjö grey
Prepared for MetaMid/MetaNo bodies
Chassis weight 1 550 kg, Technical load 15 000 kg
Item number container: 127037

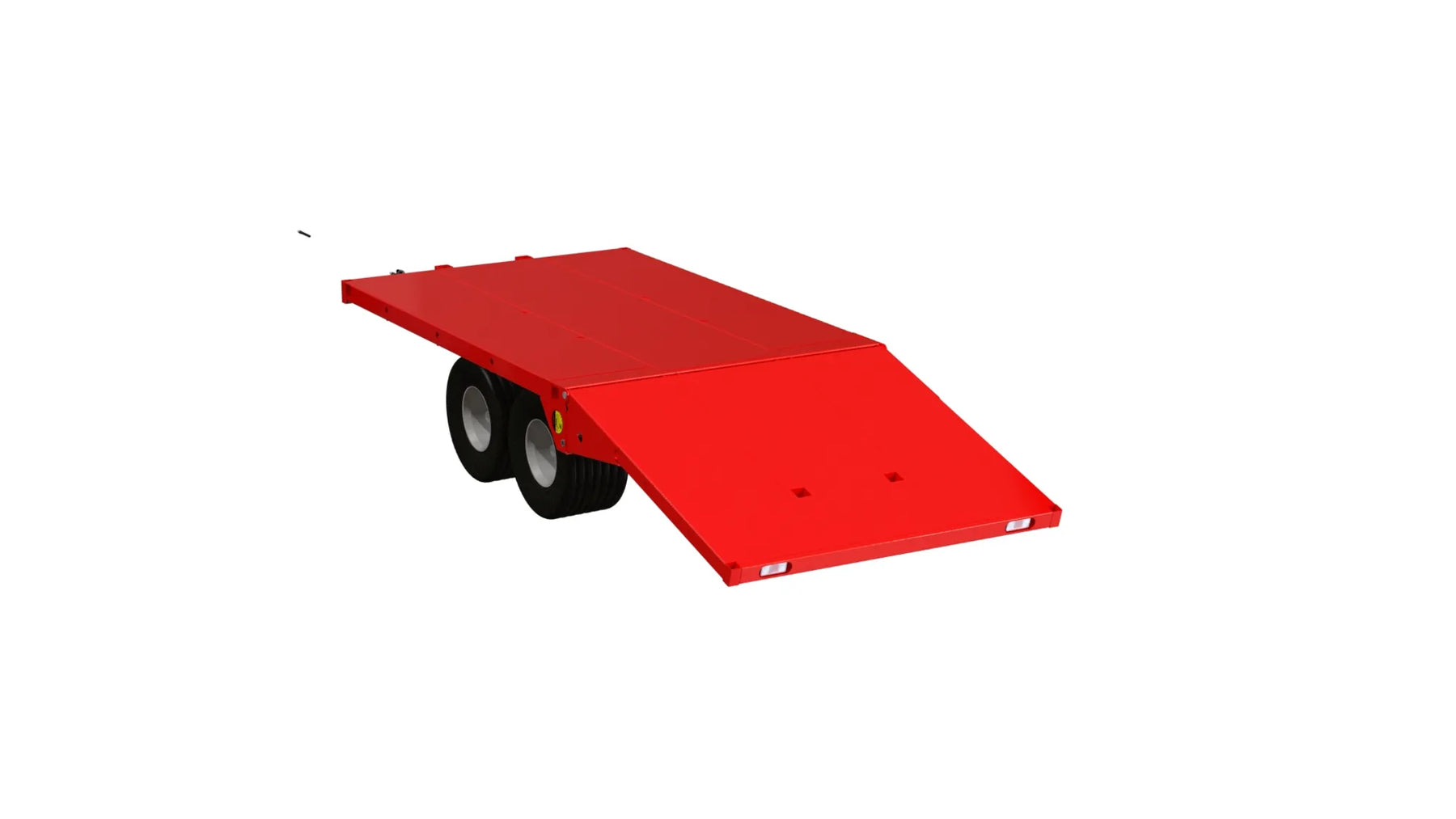

Machinery/bale platform Mid/No L6265 W2550
Heavy duty Steel 450 Brinell: Platform bed 2mm

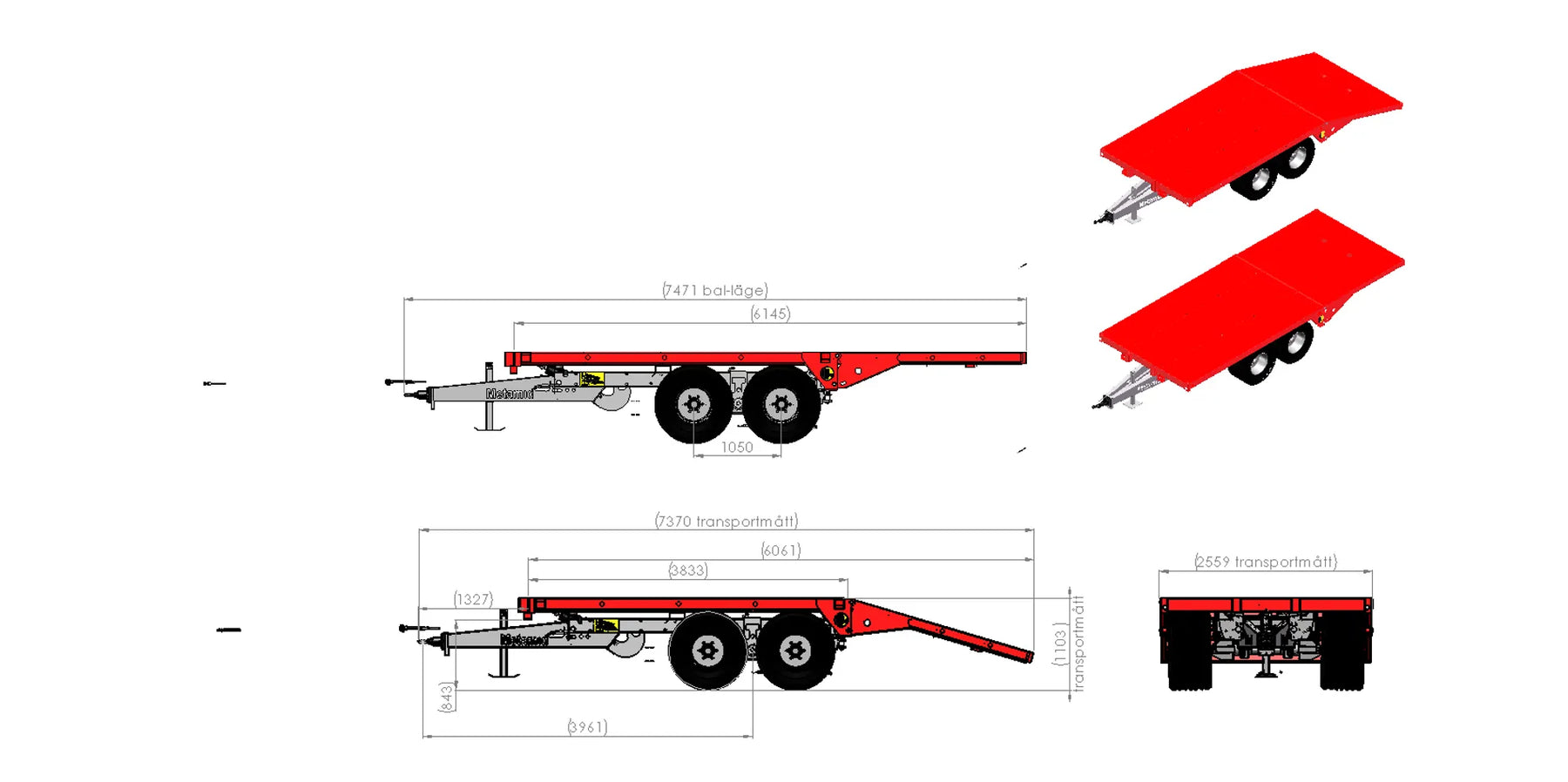

Flat part of the platform 3925mm, foldable ramp 2340mm, Total length 6265mm
The rear LED lights 12/24V are inbuilt in the platform bed
Hooks for load securing - outside lining of the platform, distance 900mm
Load securing holes in flat part of the platform, distance 1015mm
Consols for mounting different options for bale transport L5420mm
Consols for mounting a plate for reducing the risk of slippering
Consols for mounting supporting legs on the containers
Colour red, painted according Metsjö standards
Fits on MetaMid and MetaNo chassis
Used to transport bales, machines and boxes
For machines with rubber tires only
Shifting between bale/machinery platform is done through the tipping function.
Take away the pins on the side and tipp the platform till it reaches the ground.
Proceed untill the platform is flat and then return the pins to their place.
Control the total height as well as that you get the required payload on the tractor.
Weight 910 kg
Weight of the trailer 2460 kg, Payload 12 540 kg
Surface treatment: chemical degreasing, blasting SA 2,5
The body is puttied.
Painting according ISO 12944 A3.09. Colour system: Epoxy primer 2 x 70 µm.
Top coat: Polyurethane 1 x 60 µm overall layer 200µm. Corrosion category C4 L
Equipped with:
Rear hydraulic outlet ½ flow, 106643
Rear hydraulic brake outlet, 106642
Rear coupler bolt-on clevis + rear electrical socket 7 pol., 105366
